Radiation Free Ultrasound Bone Densitometer Scanner for All Ages BMD-A5
This professional pediatric adult bone mineral densitometer provides zero-radiation bone health evaluations for patients ranging from newborns to the elderly (ages 0 to 120). Utilizing advanced ultrasonic axial conduction technology with double emission and double receiving crystal probes, it offers a safe alternative to traditional X-ray scanners. Operators can perform fast radius tibia bone mineral density scans to assess systemic bone strength, diagnose osteoporosis, and evaluate fracture risks without exposing patients to radiation hazards.

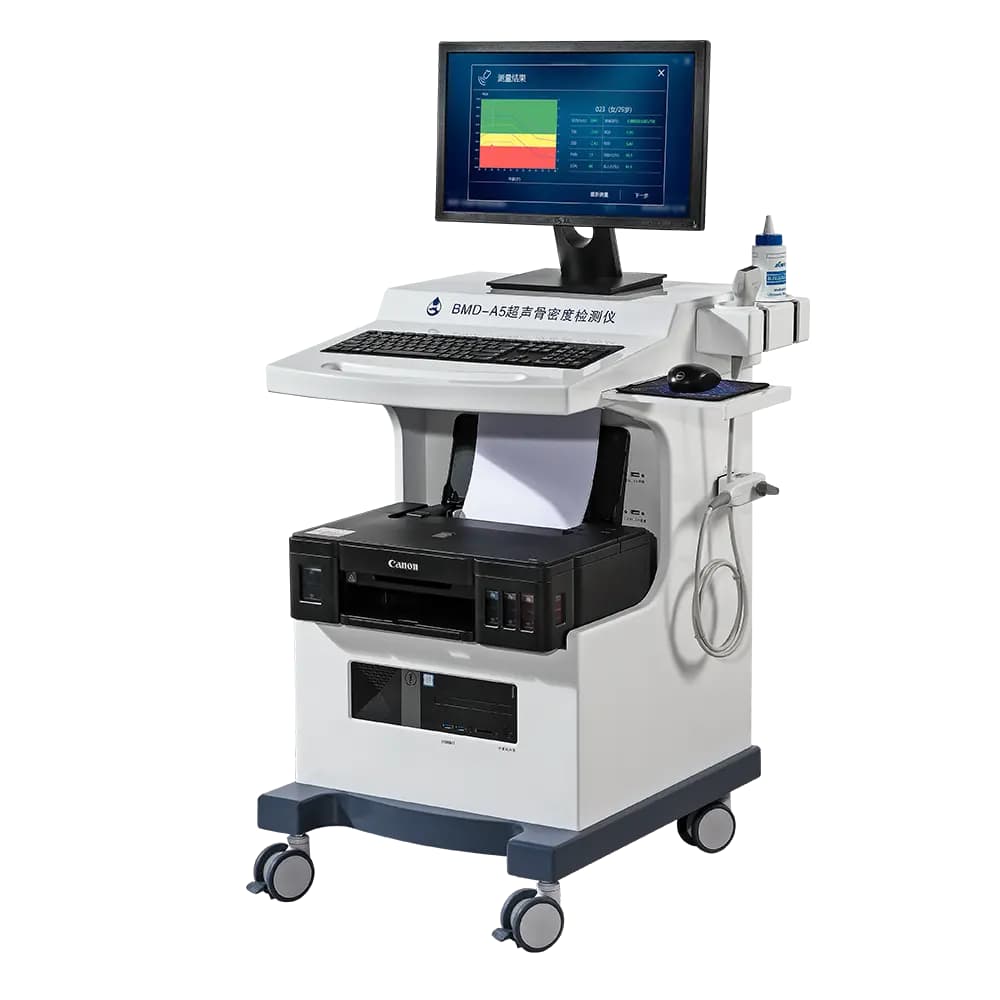

Built as an ultrasound bone densitometer trolley for effortless mobility across hospital wards, the unit features an embedded 12th Gen Intel i3 industrial PC paired with a 21.5-inch 1080P display monitor. It operates as a radiation free osteoporosis diagnosis system with an exceptional measurement accuracy and reproducibility of ≤0.15%. The intelligent software automatically selects appropriate pediatric or adult databases based on patient age, delivering rapid scan results in under 3 seconds for children. Clinicians rely on this high precision hospital bone scanner for clear color diagnostic reports displaying T-scores, Z-scores, and fracture risk indicators, making it ideal for gynecology, pediatrics, orthopedics, and health screening centers.
| Hardware System & Physical Specifications | |
| Item | Specification Parameter |
| Host PC Architecture | Embedded Industrial Computer (12th Gen Intel Core i3 Processor) |
| Memory & Storage | 8GB RAM ; 1TB Hard Disk Drive |
| Operating System | Windows 10 64-bit Enterprise Edition (Permanently Activated) |
| Computer Display Monitor | 21.5-Inch HD Color LED Monitor (Resolution: 1920 x 1080) |
| Network & Interfaces | 1 x Network Port, HDMI + DP Video Ports, Wireless Card Supported, 8 x USB Ports |
| Network Protocol Compatibility | Built-in HIS & DICOM Data Interface Functions ; ID Card Reading Supported |
| Fluid Protection Rating | Main Console: IPX0 ; Ultrasonic Probe: IPX7 Waterproof (Submersible) |
| Power Supply & Input | AC 220V +/-10% (50Hz) / AC 110V +/-10% (60Hz) ; Input Power <=120VA |
| Clinical Performance & Diagnostic Parameters | |
| Item | Specification Parameter |
| Measurement Sites | 1/3 of Radius (Forearm) and Middle of Tibia (Shinbone) |
| Measurement Technology | Ultrasonic Axial Conduction (Double emission & double receiving) |
| Probe Transducer | 1.20 MHz Crystal Transducer (American DuPont Technology) |
| Measurement Accuracy | <=0.15% |
| Measurement Reproducibility | <=0.15% |
| Measurement Speed | Children (3 cycles) <3 seconds ; Adults (3 cycles) <15 seconds |
| Patient Age Range | 0 to 120 years old (Automatic adult/child database selection) |
| Clinical Reference Databases | Built-in European, American, Asian, Chinese & WHO Standards |
| Diagnostic Data Outputs | SOS, T-Score, Z-Score, Age%, Adult%, BQI, PAB (Years), EOA (Years), RRF, BMI |
| Probe Navigation System | Real-time 3D display of Axial, Horizontal, and Direction angles |
| Daily Calibration | Automatic power-on calibration with Pure Copper & Perspex sample block |
| Regulatory & Safety Compliance | |
| Item | Specification Parameter |
| Electromagnetic Compatibility | Complies with YY0505-2012 / EMC Test Passed |
| Safety Testing Compliance | Complies with GB9706.1-2007, GB9706.9-2008, GB9706.15-2008 Requirements |
| Industry Performance Standard | Complies with YY0774-2010 Requirements |
| Regulatory Quality Marking | CE Certified, ISO 13485, CFDA, ROHS, LVD Certified |
Key Clinical Applications & Departments:
Primary Departments: Physical Examination Centers, Orthopedics, Geriatrics, Pediatrics, Gynecology & Obstetrics, Endocrinology, Rehabilitation, Sanatoriums, and Health Centers.
Primary Utility: Routine physical checkups, diagnosing osteoporosis, evaluating osteoporotic fracture risk (lumbar, femoral neck, radius), and monitoring pediatric bone growth.
Core Technological Advantages:
12th Gen Intel Industrial Core Architecture: Powered by a 12th Gen Intel i3 processor with 8G RAM and 1TB storage, ensuring ultra-fast signal processing, high data security, and multi-tasking stability.
Ultra-High Measurement Precision: Achieves an industry-leading measurement accuracy and reproducibility of $\le 0.15\%$, supported by a specialized system error correction algorithm.
Real-Time 3D Angle Navigation: Displays real-time axial, horizontal, and direction angles between the probe and bone plane, alongside a 4-crystal signal reception monitor to guide precise probe positioning.
Seamless Hospital IT Connectivity: Fully supports HIS and DICOM protocols, ID card reading, remote online service connection, and automated report statistics.
Radiation-Free Dry Ultrasound: Uses 1.20MHz American DuPont probe technology with double emission and receiving crystals, offering 100% safe scans with zero radiation exposure.
Configuration List:
Ultrasound Bone Densitometer Main Console (With 12th Gen i3 Industrial Computer)
21.5-Inch HD Color LED Display Monitor
1.20MHz DuPont Technology Ultrasonic Probe Assembly
Mobile Medical Ergonomic Trolley Workstation
Intelligent Bone Density Analysis Software (With HIS/DICOM Integration)
Temperature-Monitored Calibration Module (Pure Copper & Perspex Block)
Disinfectant Coupling Agent & Connection Cables
(Optional: External High-Precision Color Inkjet Printer)
Is this ultrasound bone densitometer safe for pediatric and pregnant patients?
Yes, it uses 100% radiation-free dry ultrasound technology, making it completely safe for pregnant women, neonates, children, and elderly patients.
What patient age range can be evaluated with this equipment?
The software supports universal age coverage from 0 to 120 years, featuring automated database selection for pediatric (0-12 yrs), teenage (12-20 yrs), adult (20-80 yrs), and geriatric (80-120 yrs) groups.
What is the advantage of using American DuPont probe technology in this scanner?
The 1.20MHz probe utilizes American DuPont crystal technology with double emission and double receiving crystals, providing higher signal sensitivity and deep ultrasound penetration.
How does the system ensure high reproducibility and eliminate clutter signals?
It combines a multi-layer circuit board with high-shielding connectors, an innovative signal de-noising algorithm, and a specialized error correction system to achieve ≤0.15% reproducibility.
Does the system generate easy-to-read clinical reports for patients?
Yes, it outputs full-color diagnostic reports in standard A4, 16K, or B5 formats, displaying clear T-score and Z-score visual charts and bone age comparisons.
What printer options are compatible with this workstation?
The system supports external high-precision color inkjet printers (such as Canon series) connected via USB for instant full-color report printing.
How does the probe crystal indication monitor assist during scans?
The display interface shows real-time working status for all four internal probe crystals and indicates the reception signal strength to confirm optimal skin contact.
Can the device software display menus in languages other than English?
Yes, it features a one-button fast language switching function between English and Chinese menus for flexible global operation.
What are the storage and memory capacity specs of the built-in system?
The embedded industrial computer contains 8GB of RAM and a large 1TB hard drive, capable of storing millions of patient historical medical records.
How does the temperature-monitored calibration block function?
The included pure copper and Perspex calibration module displays the current ambient temperature and standard Speed of Sound (SOS) values for instant power-on calibration verification.
What medical departments benefit most from installing this trolley workstation?
It is widely utilized in Physical Examination Centers, Pediatrics, Obstetrics & Gynecology, Orthopedics, Geriatrics, Endocrinology, and Rehabilitation Hospitals.
Is remote technical support supported on this operating system?
Yes, with its Windows 10 Enterprise OS and built-in network connectivity, technicians can provide remote internet diagnosis, software updates, and maintenance support.
