Ultrasound Bone Densitometer BMD-A1 Basic Osteoporosis Detector
Application Range:
Our Ultrasound Bone Densitometry always used for Maternal and Child Health Centers, Geriatric Hospital, Sanatorium, Rehabilitation Hospital, Bone Injury Hospital, Physical Examination Center, Health Center, Community Hospital, Pharmaceutical factory, Pharmacy and Health Care Products Promotion.
The Department of the General Hospital, Such as Pediatric Department,Gynecology and Obstetrics Department,Orthopedics Department, Geriatrics Department, Physical Examination Department,Rehabilitation department Physical Examination Department, Endocrinology Department.

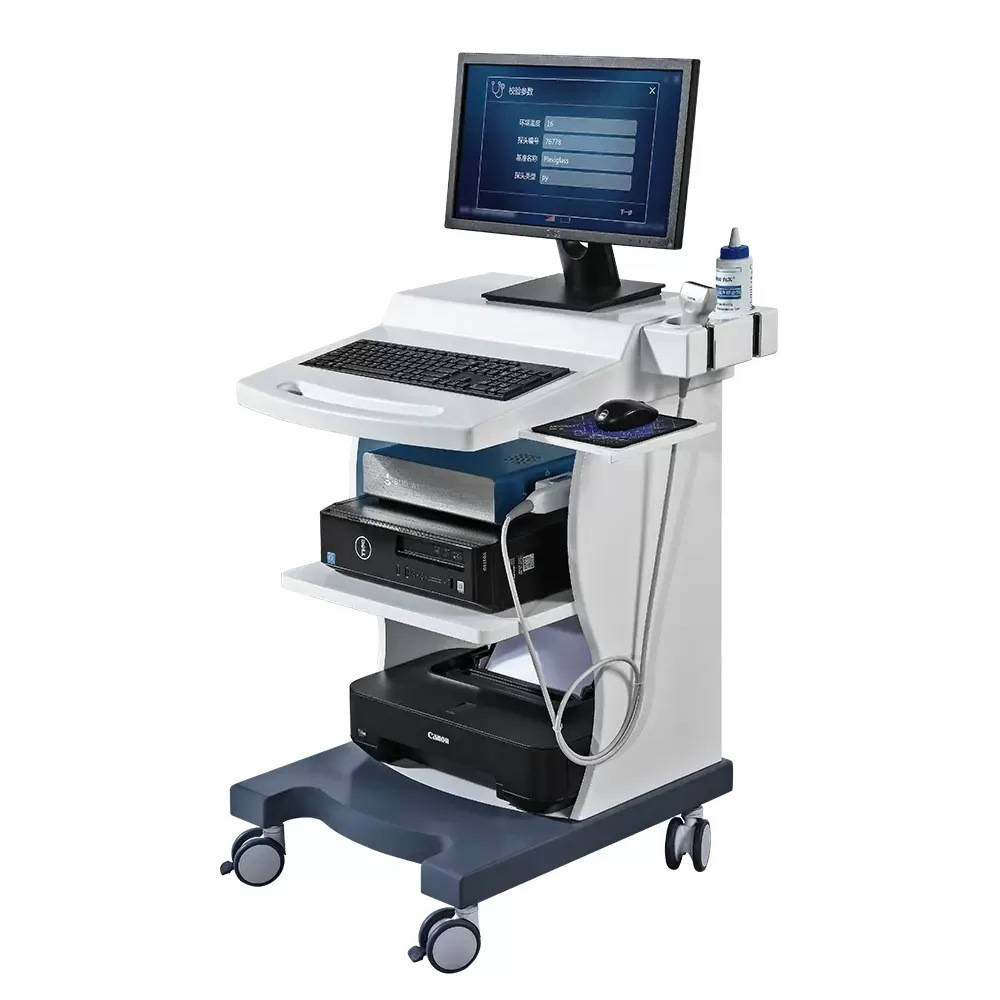

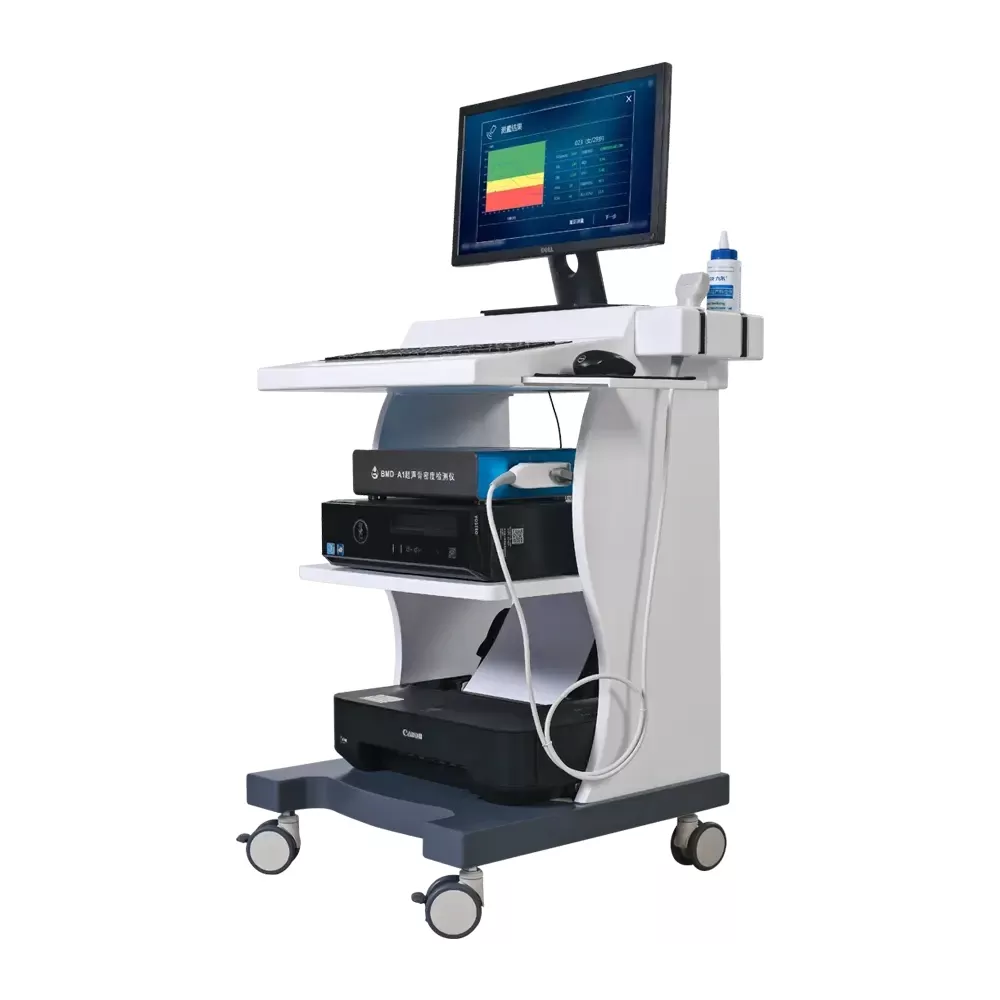

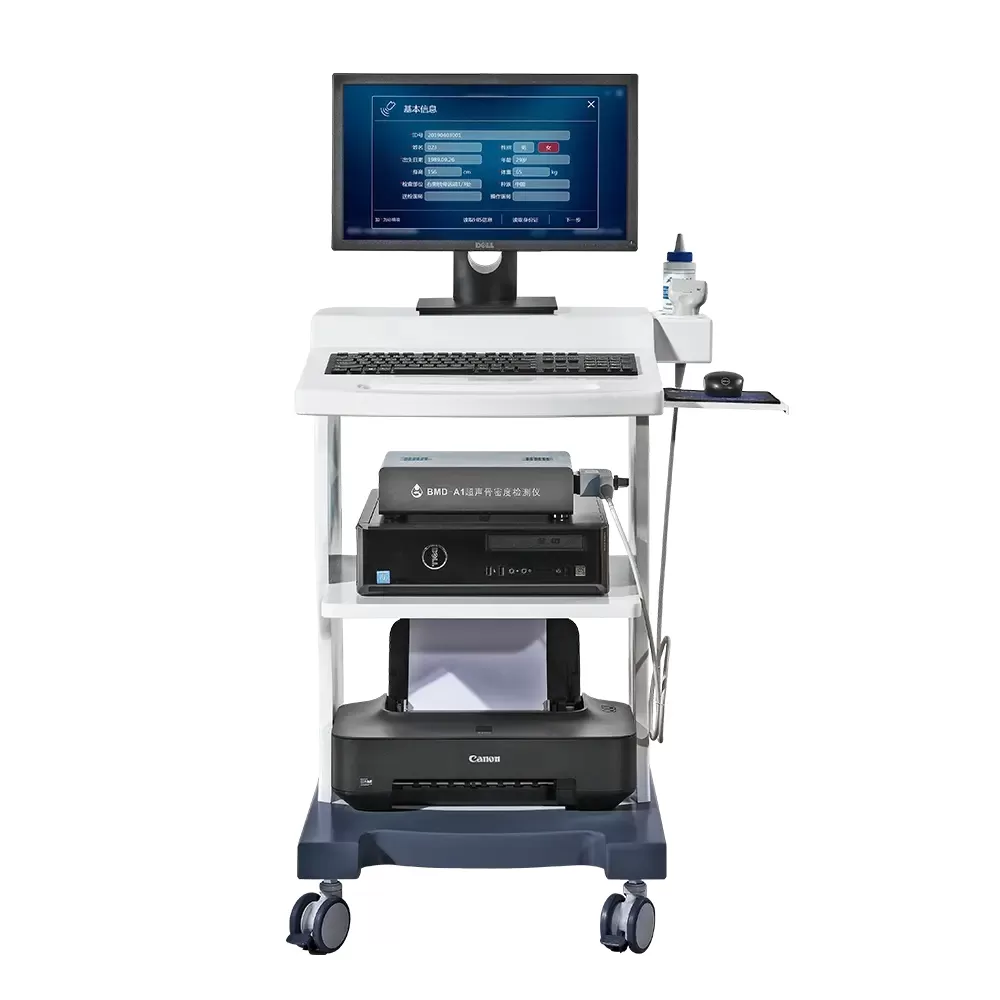

Trolley ultrasound bone densitometry BMD-A1 Assembly is for testing bone density. It can be used for diagnosing diseases, as well as for disease screening and physical examination of healthy people. Ultrasound bone densitometer is cheaper than DEXA bone densitometer , simple to operate, no radiation, high accuracy, less investment. A bone mineral density test, sometimes just called a bone density test, detects whether you have osteoporosis.
When you have the osteoporosis, your bones get weak and thin. They become more likely to break. Bone and joint pain and fractures caused by osteoporosis are common clinical diseases, such as deformation of the lumbar and back vertebrae, Disc disease, vertebral body fracture,cervical spondylosis, limb joint and bone pain, lumbar spine, femoral neck, radius fracture and so on. Therefore, bone mineral density examination is very necessary for the diagnosis and treatment of osteoporosis and its complications.
Ultrasound Bone Densitometry have low investment and benefit.
The advantages as following:
Low Investment
High-usage
Small limitation
Fast return, no consumables
High benefit
Measurement parts: Radius and Tibia.
The probe adopts American DuPont technology
The measurement process is simple and fast
High measurement speed, short measurement time
High Measurement Accuracy
Good Measurement Reproducibility
it with different countries clinical database, including: European, American, Asian, Chinese,
WHO international compatibility. It measuring the people between the age of 0 and 120.(Children and Adult)
English menu and Color Printer report
CE Certificate, ISO Certificate, CFDA Certificate, ROHS, LVD, EMC-Electro Magnetic Compatibility
Main Feature:
Trolley model
Precise and Artistic Mould Manufactured
Full dry technology, Makes Diagnostic More Convenient.
Measurement parts: Radius and Tibia.
The measurement process is simple and fast
High measurement speed, short measurement time
High Measurement Accuracy
Good Measurement Reproducibility
The particular correction system to correct system error effectively.
it with different countries clinical database, including: European, American, Asian, Chinese,
WHO international compatibility. It measuring the people between the age of 0 and 120.(Children and Adult)
English menu and Color Printer report
CE Certificate, ISO Certificate, CFDA Certificate, ROHS, LVD, EMC-Electro Magnetic Compatibility
Technical Specifications
Large Scale Integrated circuit
Multi - layer circuit board design
High shielding multipoint signal contact mode
Precise brushed metal mould manufactured
Special analysis system based on different countries people
Technical features:
1.Using the full dry technology, makes diagnostic more convenient.
2.The probe adopt the Technology of the United States DuPont, makes the probe to receive higher sensitivity and better reception.
3.the better ultrasonic frequency on the measuring position, with better penetrability, more effective signal
4.use the ultrasonic axial conduction technology, double emission and double receiving, it can provide more effective data
5.With innovative algorithm, effectively remove clutter and jamming signal, to get the valid data.
6.With a special correction system, to correct the system error effectively, get more accurate measurement results.
7. Multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
8.It with multi countries clinical database, including: European, American, Asian, Chinese, WHO international compatibility. It measuring the people between the age of 0 and 100
9. English menu
10. The first one pass EMC test
11. CE certificate.
12. ISO Certificate.
Performance parameter
1.Measurement parts: radius and Tibia
2. Measurement mode: double emission and double receiving
3.Measurement parameters: Speed of sound (SOS)
4.Analysis Data: T- Score, Z-Score, Age percent[%], Adult percent[%], BQI (Bone quality Index ), PAB[Year] (physiological age of bone), EOA[Year] (Expected Osteoporosis age), RRF(Relative Fracture Risk). SOS, BMI
5.Measurement Accuracy : ≤0.3%
6.Measurement Reproducibility: ≤0.3%
7.Measurement time: Three Cycles adults measuring time <15 seconds
Three Cycle Children measuring time <3 seconds
8.Probe frequency : 1.20MHz ,DuPont Technology
9.Automatic determination of measurement results
10.The text template has an automatic addressing function, which is convenient for report editing
11. It has a report statistics function
12.It has a medical record name correction function
13. It has a one-button Chinese-English conversion function
14.It has a fast and slow measuring function
15.Date analysis : it adopt a special intelligent real –time data analysis system, it selects the adult or child databases according to the age automatically
16. Temperature control: Perspex sample with temperature instructions
17. Probe measurement navigation: this equipment display the Axial angle , the Horizontal Angle , the Direction Angle between the probe and the bone plane, it display the change of the real-time angle data. It is easy to correct the measure angle quickly, improving the measure speed , improving the data Accuracy.
18. Probe crystal indication: it display the working condition for the four crystal of the probe, and the signal strength for the ultrasonic reception.
19.Daily Calibration: automatic calibrating after power on.
20.All the people of the world. It measuring the people between the age Of 0 and 120,(Children: 0-12 years old, Teenagers: 12-20 years old, Adults:20-80 years old, The Elderly 80-120 yeas old, only need to input the age and recognizing automatically .
21.Temperature display calibration block: the calibration with pure copper and Perspex, the calibrator display current temperature and standard SOS. The equipment leave the factory with Perspex sample.
22.repot mode: color
23. Report format: supply A4, 16K ,B5 and more size report
24.Bone densitometer main unit: Drawing Aluminum mould manufacturing, it is exquisite and beautiful
25.Bone densitometer main unit weight>3.3 kgs
26. Bone densitometer probe connector: multipoint access mode with high shield and mold manufacturing, to ensure the lossless transmission of the ultrasonic signals.
27.Fluid Protection: main unit waterproof level IPX0, probe waterproof level IPX7
28.External medical special power supply, power>60W
29.Connect to the internet and provide remote services.
30.Main unit weight<3 kgs, easy to carry
31.Added anti-interference ability
32. Environmental test complies with: GB/T14710-2009 requirements
33.Electromagnetic compatibility test complies with: YY0505-2012 requirements
34. Industry standard complies with: YY0774-2010 requirements
35.Power supply voltage: AC220V±10%, 50Hz±1Hz or AC110V±10%, 60Hz±1Hz
36. Input power: ≤200VA
Configuration
1. BMD-A1 Ultrasound Bone Densitometer Main unit
2. 1.20MHz Probe
3. Intelligent Analysis System
4. Calibrating Module (Perspex sample)
5. Disinfectant Coupling Agent
6. Trolley
7.All-in-one computer
8. color printer
FAQs for BMD-A1 Ultrasound Bone Densitometer
1. How accurate is ultrasound bone densitometry compared to the gold-standard DEXA scan?
While DEXA is considered the gold standard for definitive diagnosis, quantitative ultrasound (QUS), as used in the BMD-A1, is a highly validated and reliable screening and monitoring tool. Its key advantages for widespread use are zero radiation, lower cost, and portability. With high accuracy (≤0.3%) and reproducibility (≤0.3%), it provides excellent data for risk assessment, population screening, and tracking treatment progress over time, making it ideal for primary care and community settings.
2. What is the main benefit of the "full dry technology" mentioned?
"Full dry technology" means the device uses a disinfectant coupling agent instead of traditional ultrasound gel. This eliminates the mess, cleanup time, and potential skin irritation associated with gel, significantly speeding up patient turnover, improving hygiene, and making the process cleaner and more convenient for both operator and patient.
3. With no radiation, is it safe for children and pregnant women?
Yes, absolutely. The use of harmless ultrasound waves makes it completely safe for repeated use on sensitive populations, including children (from age 0), pregnant women (for maternal bone health assessment), and the elderly, with no cumulative radiation risk. This is a primary advantage over DEXA and CT-based methods.
4. Why measure only the radius (wrist) and tibia (shin)? Are these sites reliable?
The radius and tibia are easily accessible, standardized cortical bone sites that strongly correlate with overall skeletal health and fracture risk. Measurement at these sites is fast, reproducible, and highly sensitive to age-related bone loss. For broad screening purposes, they provide reliable and sufficient data without the complexity of spine or hip measurements.
5. How does the multi-country clinical database (European, American, Asian, Chinese) work?
The device automatically selects the most appropriate reference database based on the patient's entered ethnicity and age. This is crucial because bone density norms vary by population. Using a race-matched database ensures the T-score and Z-score results are accurate and clinically meaningful for your specific patient demographic.
6. What do the "probe navigation" and "crystal indication" features do for the operator?
These are unique operator-assist features that guarantee measurement quality. The navigation system visually guides you to position the probe at the precise optimal angle on the limb. The crystal indicator shows the signal strength from each sensor in real-time. Together, they eliminate guesswork, reduce operator error, and ensure every reading is taken under ideal, consistent conditions, leading to more reliable data.
7. The device seems very affordable. What's the catch regarding ongoing costs or consumables?
There is no hidden catch. A major selling point is its low total cost of ownership. After the initial purchase, there are no expensive consumables (like cartridges or chemicals). The only recurring item is the inexpensive disinfectant coupling agent. Coupled with no service contracts for radiation source replacement, this makes its long-term operational cost exceptionally low and ROI fast.
8. How "portable" is the trolley model in practice?
The trolley design integrates the computer, printer, and device into a single, mobile unit on wheels. With the main unit itself weighing <3 kg, the entire system can be easily rolled between departments (e.g., Orthopedics to Geriatrics), to patient bedsides, or to different community health event stations, functioning as a complete mobile bone health clinic.
9. How is daily calibration handled? Is it complicated?
Calibration is fully automatic and hassle-free. The device performs a self-check using the provided Perspex calibration block each time it is powered on. This takes seconds and requires no manual intervention, ensuring the device is always ready and accurate for the day's measurements.
10. Can the generated reports be customized and integrated into our hospital's health records?
Yes. The system allows for report template editing (A4, B5, etc.) and includes patient data management functions. Reports can be printed directly on the integrated color printer. For EMR integration, data can be exported, and the device's network capability allows for potential connectivity, though specific interface protocols should be confirmed with your IT team.
11. What does the 8-year service life imply, and what support is there after the 1-year warranty?
The stated 8-year service life indicates a durable, industrial-grade build quality for long-term daily use. After the warranty, the manufacturer offers "permanent maintenance" where you pay only for any necessary parts, with no labor charges, ensuring predictable and affordable long-term support.
12. For a pharmacy or health product promotion setting, how can this device add value?
It serves as a powerful customer engagement and service tool. You can offer free bone health screenings, which drives foot traffic, builds trust, and provides objective data that can legitimately guide customers towards appropriate calcium supplements, vitamin D, or other bone health products, moving from generic sales to personalized health recommendations.
