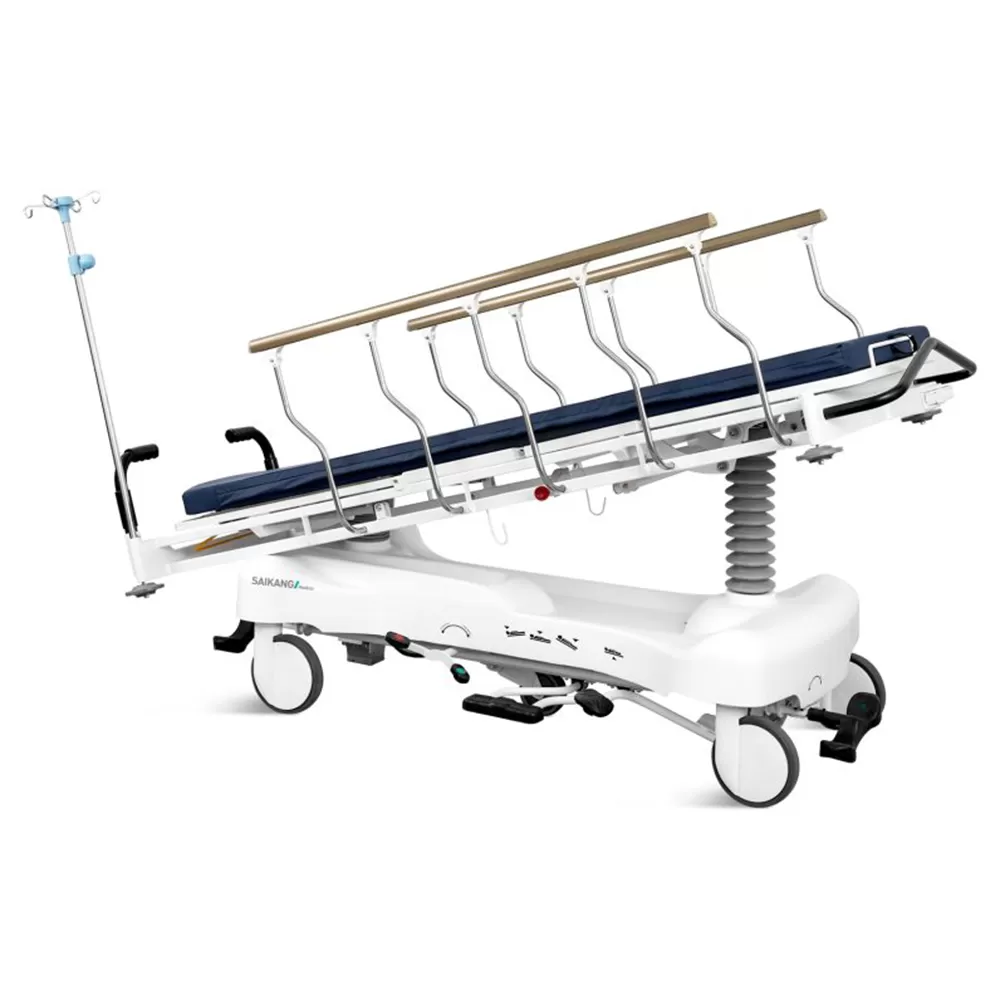

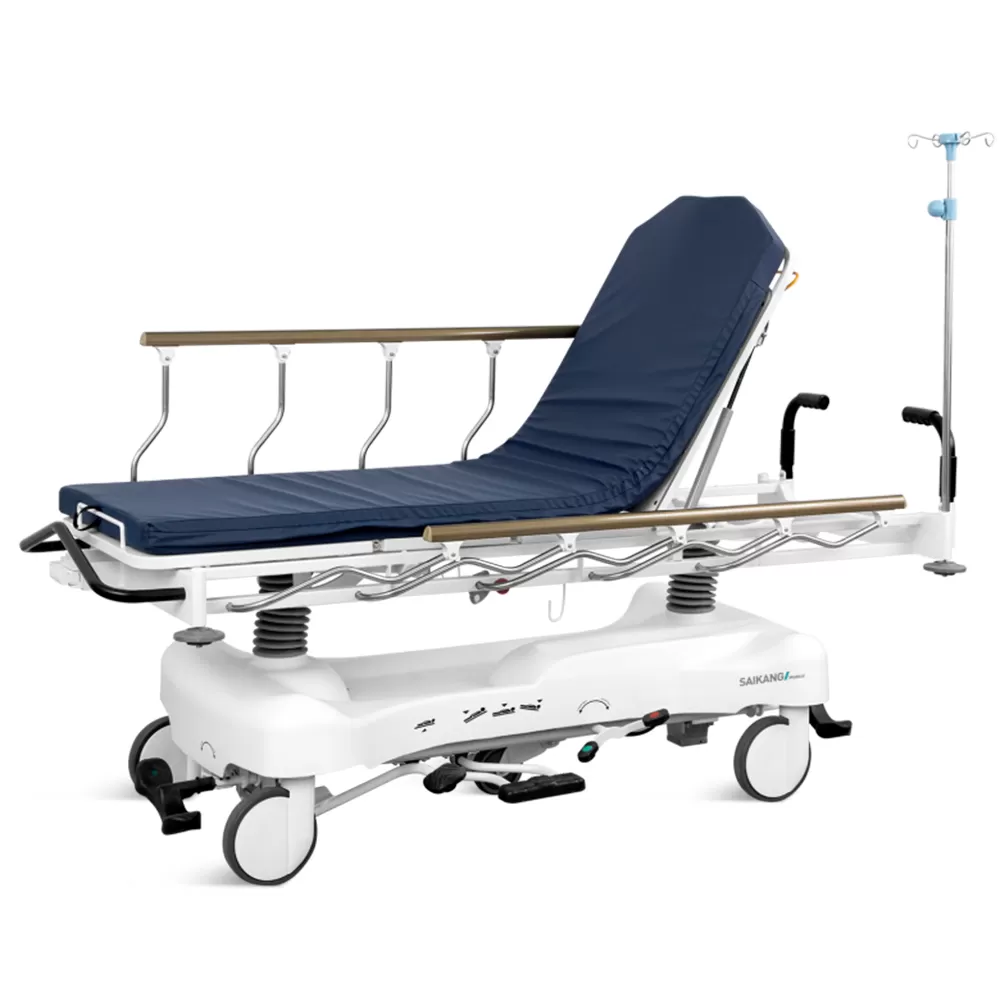

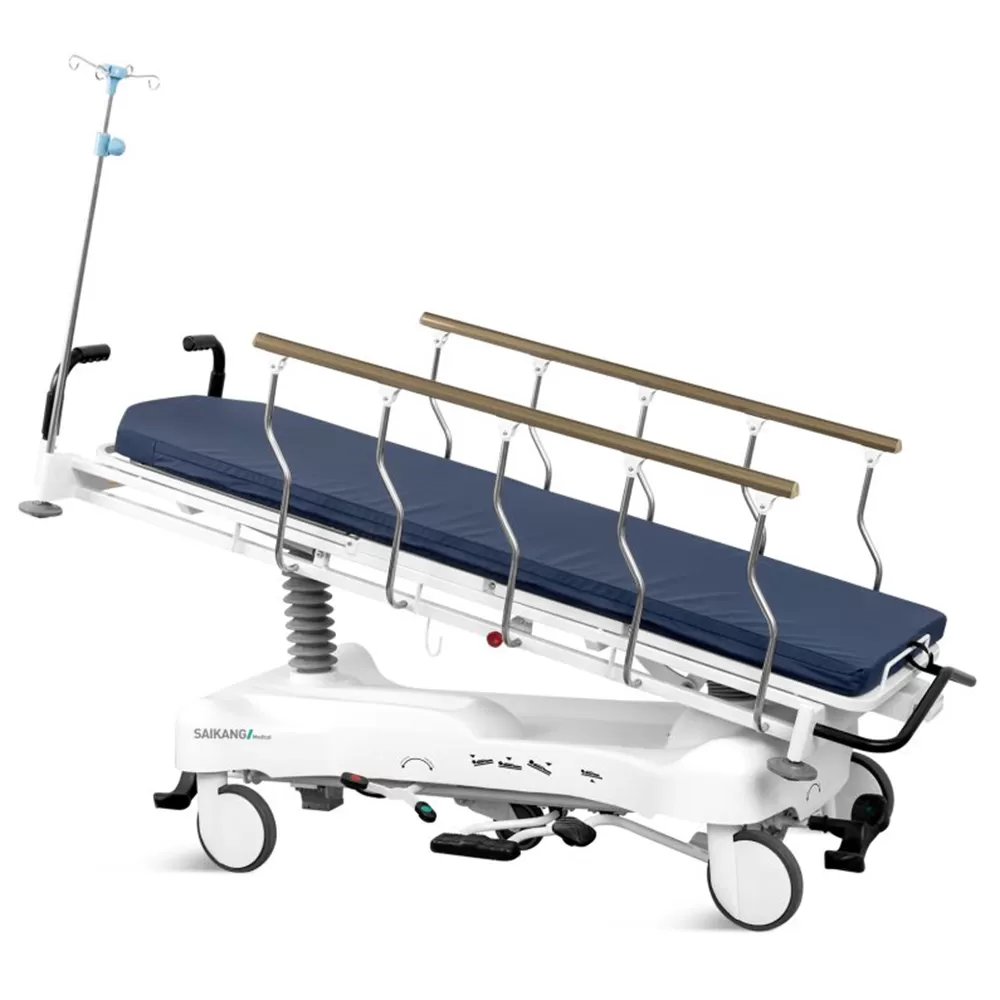

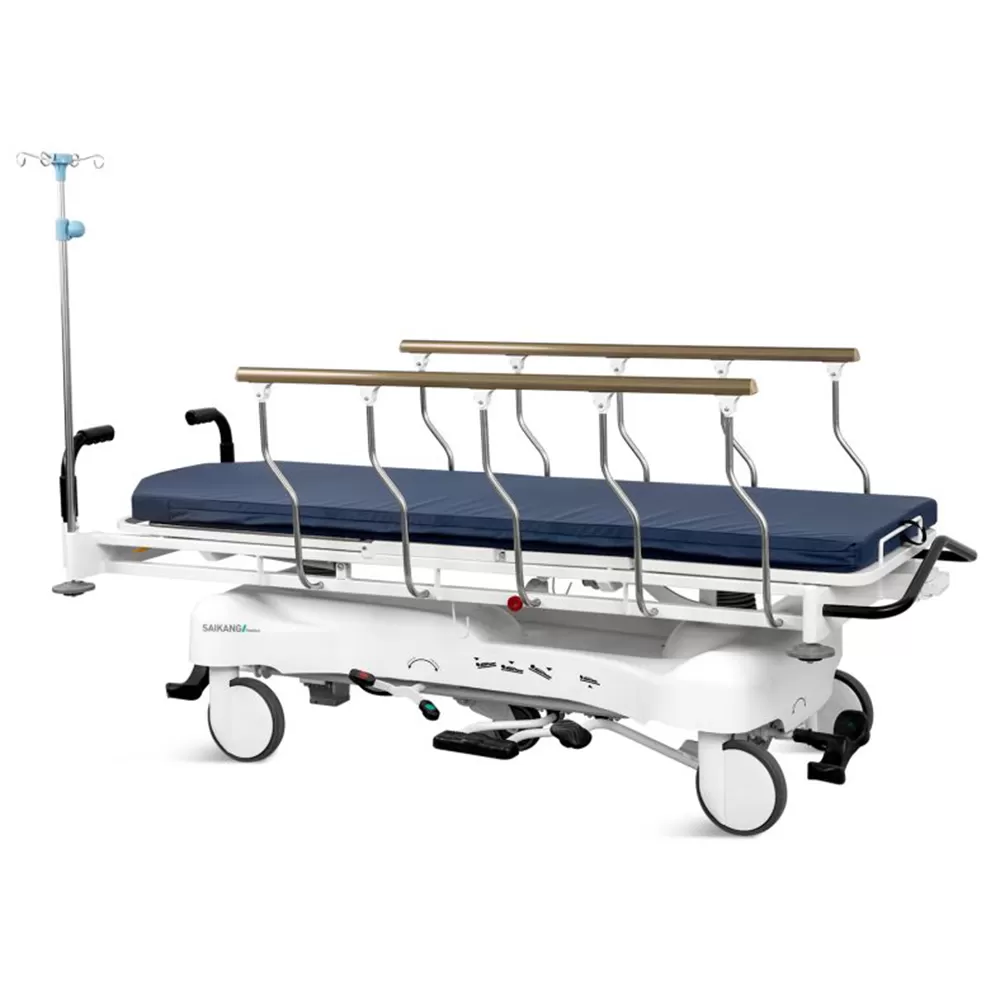

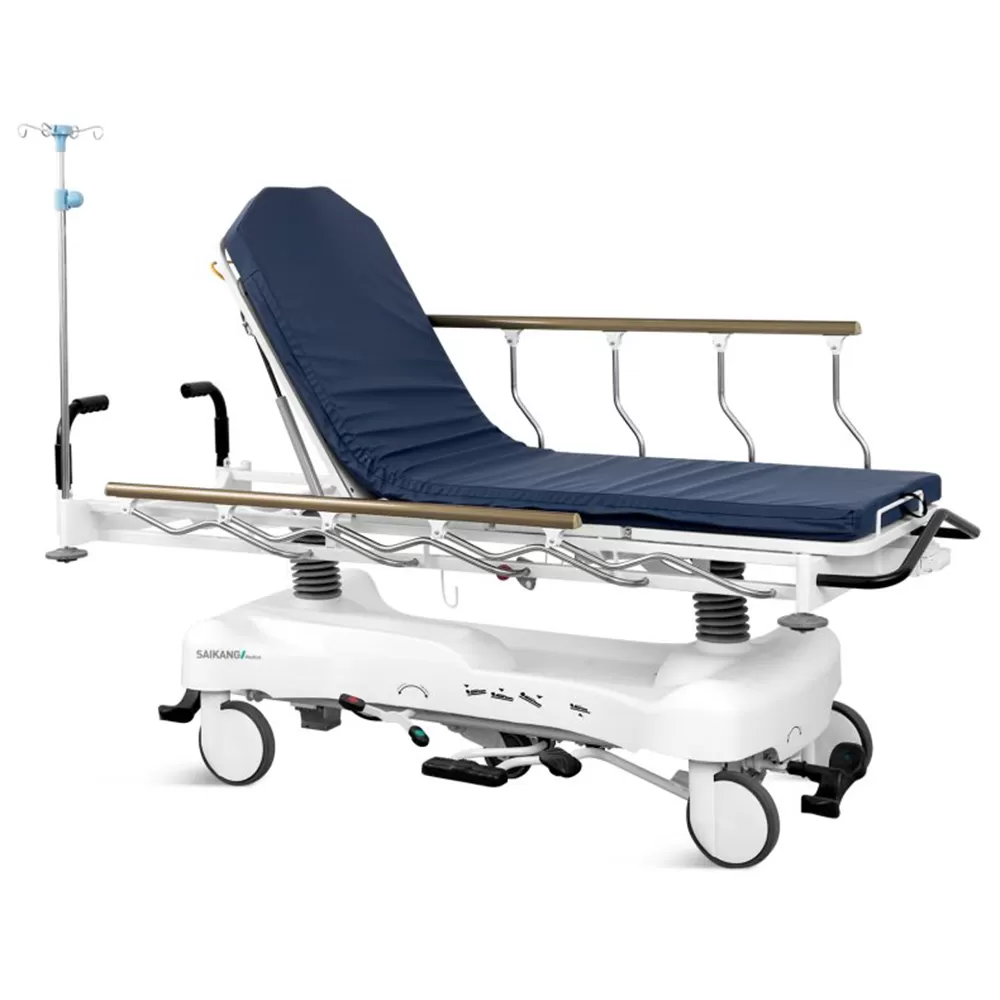

X-ray Patient Transfer Stretcher SKB041-3
Highlights
Metal material
Baosteel from Fortune Global 500 Panasonic Robotic ensure 360° full smooth wedlding
Plastic
Environmental plastic can be sterilized in 100°C，tensile upto 30MPa.
Steels | Painting
11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12 mm, brightness 60°, paint can resist 50 kg impact.
Brake
Break spring keep qualified after 10,000times uninteruped break.
Hydraulic pumps
Height adjustment, trendelenburg and revised tendelenburg through two USA hydraulic pumps.

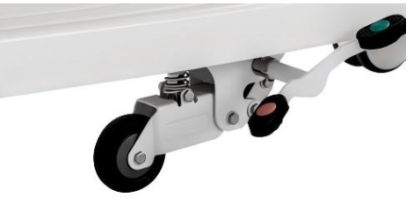

Center wheel
Can be engaged to facilitate direction control, enabling users to navigate the stretcher easily in hectic and dynamic environments.

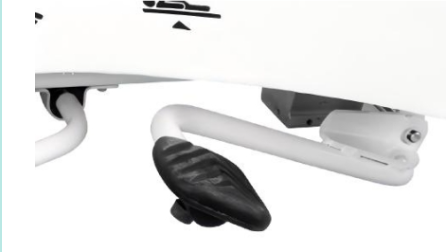

Rising
Hydraulic treadle for rise.

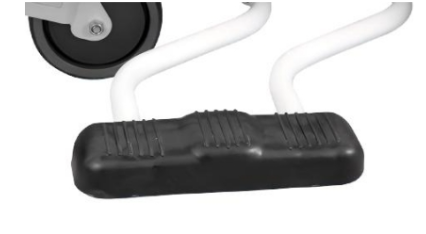

Falling
① Leg section lows down to make head highter. ② Back section lows down to make leg section highter. ③ Step on the middle of the pedal, make the bed base fall down steadily.
Castors
Four double side casters of 8 inch diameter, simultaneously lockable by the step pedal at both sides. TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts.
Mattress
Parameters
| External size(LW): | 2120×840mm(±10 mm) |
| Tableheight adjustment: | 600-910mm(±10 mm) |
| Backplate adjustment: | 0-85°(土±5°) |
| Knee-rest adjustment: | 0-40°(±5°) |
| Reverse Trendelenburg: | 0-15°(±2°) |
| Trendelenburg: | 0-15°(±2°) |
| Static Load Capacity: | 250kg |
| Dynamic Load Capacity: | 135kg |
Configuration
| 8-inch Central Control Castors | 4pes |
| Hydraulic Pumps | 2pcs |
| 5-speed Foldable Guardrails | 1pair |
| Stainless Steel Infusion Pole | 1pc |
| Infusion Stand Holes | 4pcs |
| Back Lifting Gas Springs | 2ps |
| Leg Lifing Crank Handle | 1pc |
| Anti-collision Wheels | 4pcs |
| Foot Pedals | 2sets |
| Central Control Brakes | 2pcs |
| Fifth Castor | 1pc |
| Bottom Plastic Cover | 1pc |
| 6cm PU Mattress | 1pc |
| Bed Board: Made of HPL material, suitable for full-body X-ray imaging, and equipped with a movable X-ray film cassette | |
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQ:
1. Does the SKB041-3 stretcher support whole-body X-ray imaging?
Yes, the SKB041-3 is specifically designed for whole-body X-ray transparency, allowing for patient imaging without relocation.
2. How is the height and Trendelenburg adjustment controlled?
These adjustments are powered by two high-quality USA hydraulic pumps, ensuring smooth and reliable height and tilt transitions.
3. What is the static and dynamic load capacity of this trolley?
The SKB041-3 has a robust static load capacity of 250kg and a dynamic load capacity of 135kg.
4. What material is used for the stretcher frame?
The frame is made of high-quality Baosteel from a Fortune Global 500 company, utilizing Panasonic robotic 360° smooth welding.
5. How does the central wheel help in patient transportation?
The engaging center wheel facilitates precise direction control, making it easier for users to navigate in hectic or narrow environments.
6. What are the features of the braking system?
It features a durable brake spring that remains qualified after 10,000 times of uninterrupted braking for maximum safety.
7. How do I lower the stretcher base steadily?
By stepping on the middle of the hydraulic pedal, the bed base will descend steadily and safely.
8. What type of castors are used on the SKB041-3?
It is equipped with four 8-inch diameter double-side castors with TPR tires that are anti-winding and bolt-free.
9. What is the back-rest and knee-rest adjustment range?
The back-plate can be adjusted from 0-85° (±5°), and the knee-rest can be adjusted from 0-40° (±5°).
10. Is the mattress waterproof and suitable for transfers?
Yes, the trolley comes with a waterproof PU mattress, which is durable and convenient for rapid patient transfer.
11. How is the steel surface treated for anti-bacterial protection?
The steel undergoes an 11-process epoxy painting (ASTM tested), making it anti-bacterial and resistant to 50kg impacts.
12. Can the plastic parts be sterilized at high temperatures?
Yes, the environmental plastic used can be sterilized at 100°C and features a high tensile strength of up to 30MPa.
