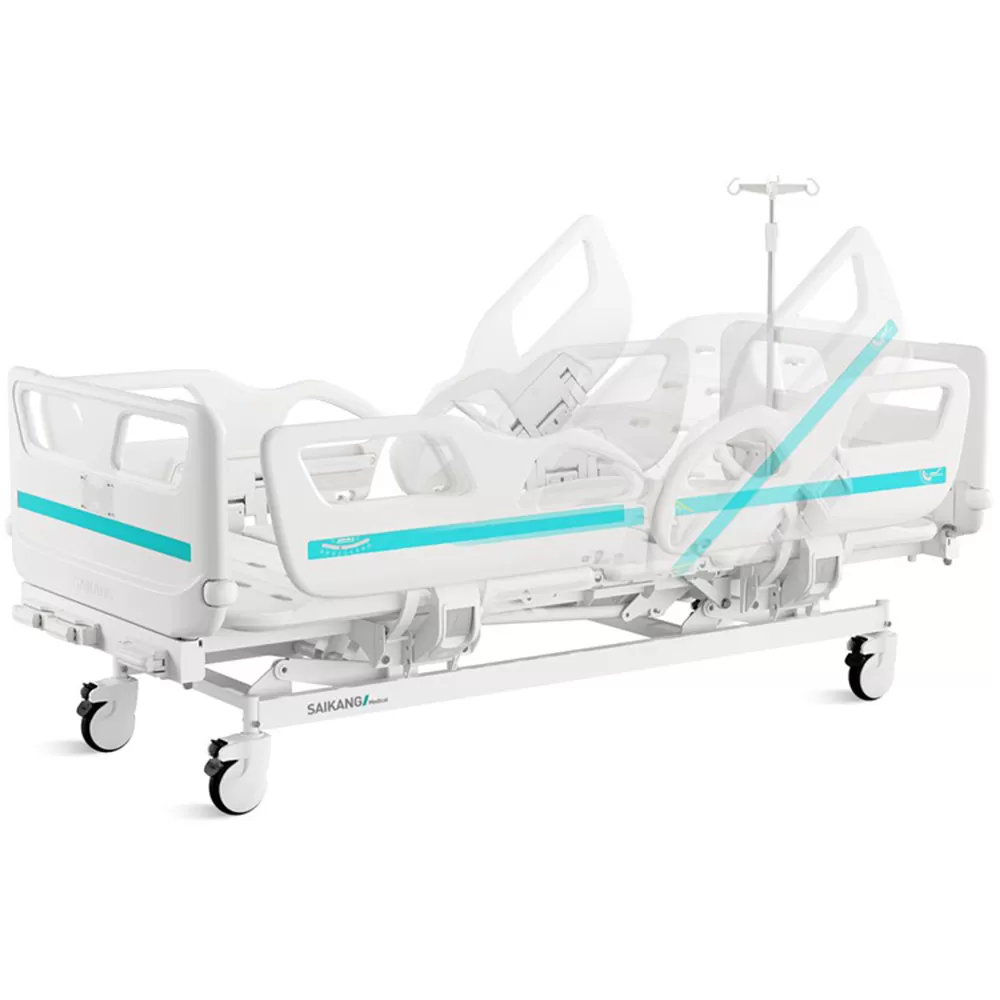

V3v5c Manual Hospital Bed (SK-CD1)
Platform
Integrated PP bed platform,adopting advanced manufacturing technology.4-5 section platform,enables independent installation and easy maintenance.
Castors
5″ covered casters.TPR tire no worn out after running 10 km.Anti-winding hard shell cover,united forming without bolts.Pass dynamic test: pass obstacles 40000 times, under the standard 200kgload of the whole bed.
Head & Foot Board
LG Chem fresh PP material, Plug in type.Equipped with the bumpers wheel, diameter 65mm, preventing collision.
Angle Indicator
With bulit-in angle indicator,it clearly show back-rest and trendelenburg position.
Guardrail
Tuck away side rail with buffer integrated.
Integrated handle facilitates the patients to get up/off the bed.
Wall bumper wheel
Horizontal corner bumpers at the outermost periphery of the bed to protect the bed and wall.
Mattress Retainer
Platform integrated mattress retainer at the both sides of the back and leg section, with a boarder of 33mm height.
Drainage Hooks
Plastic drainage hook integrated inside the siderails.
Drainage Hooks
Mobile plastic drainage hooks.
IV Pole
SS IV pole, bearing 15kg.
Technical Parameters & Optional
Technical parameters
| External size (LxW) | 2130x1025 mm |
| Mattress platform | 1925x900 mm |
| Safe working load | 200 kg |
| Height adjustment | 430-740 mm |
| Back-rest adjustment | 0-73°(±5°) |
| Knee-rest adjustment | 0-38°(±5°) |
| Angle indicator | 0-90° |
| Position line | 30° |
Technical configuration
| Manual Crank | 3 pcs |
| 5" Covered Castors | 4 pcs |
| PP side rail extra height | 1 set |
| PP bed ends with safe lock with Ф65 bumper wheels | 1 set |
| PP bed platform with integrated mattress retainer | 1 set |
| IV pole 4 hooks | 1 set |
| IV pole prevision | 4 pcs |
| Drainage hook | 2 pcs |
Optional
| Utility shelf |
| Trapeze bracket/pole |
73°
Back-rest adiustment
38°
Knee-rest adiustment
430-740mm
Height adjustment
FAQs – V3v5c Manual Hospital Bed
Q: What is the advantage of the 4-5 section PP platform?
A: Enables independent installation and easy maintenance while reducing mattress depression for enhanced patient comfort.Q: How durable are the castors?
A: 5" covered castors with TPR tires pass 40,000 obstacle tests under 200kg load – no wear after 10km running.Q: What safety features does the guardrail have?
A: Tuck away side rail with buffer and integrated handle to assist patients getting up/off the bed safely.Q: What is the bed adjustment range?
A: Height: 430–740mm; Backrest: 0–73°; Knee-rest: 0–38° – versatile for various clinical needs.Q: Does the bed have an angle indicator?
A: Yes. Built-in angle indicator clearly shows backrest and Trendelenburg position (0–90°) with 30° position line.Q: What material are the head and foot boards?
A: LG Chem fresh PP material, plugin type with 65mm bumper wheels to prevent collision damage.Q: How does the mattress retainer work?
A: Platform-integrated retainers on back/leg sections with 33mm height border keep mattress securely in place.Q: What is the safe working load?
A: Maximum 200 kg – suitable for most patient populations.Q: What are the external dimensions?
A: 2130×1025mm (L×W) with mattress platform 1925×900mm.Q: What standard accessories are included?
A: 3 manual cranks, 4 castors, PP side rails (extra height), PP bed ends with bumper wheels, IV pole, 4 IV pole prevision, 2 drainage hooks.Q: Where are the drainage hooks located?
A: Plastic drainage hooks integrated inside the siderails plus mobile hooks – dual options for convenience.Q: What optional features are available?
A: Utility shelf, trapeze bracket/pole, and multiple color options for customization.
