X9x Electric ICU Hospital Bed
Innovation Patents

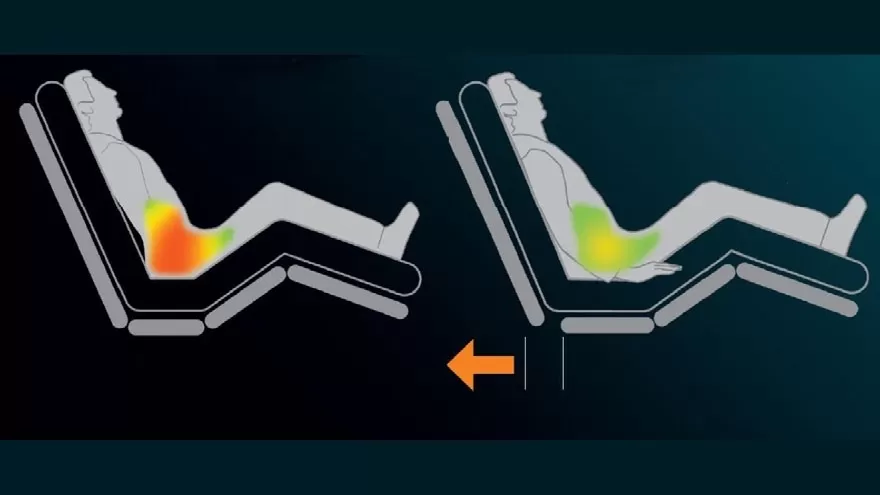

BACKREST RETRACTION PATENTED DESIGN INNOVATIVE 75mm
Pressure ulcers,or bedsores,result from prolonged pressure and friction on skin and underlying tissues.
-Auto-Regression 75mm±10mm
-When repositioning the backrest,the back plate retreat 75mm to minimises the pressure and shear forces in the patient’s abdomen region.This resuts in a significantreduction in the tugging on the patient’s wound.
This design enhances patient comfort and prevents pressure ulcer occurrence proactively.
-Retracting these components extends the bed surface in the pelvic area,alleviating pressure and shear forces,thus minimizing pressure ulcer risk.
-The innovative design prioritizes patient well-being and offers a proactive solution for pressure ulcer prevention.
Advantages For Smarter Work
 |  |  |
| Back-rest | Knee-rest | Bed height min. |
 |  |  |
| Bed height max. | Reverse Trendelenburg | Trendelenburg |
 |  |  |
| One button nursing operating position | One button to make the back plate flat. | The position of the cardiac chair can be easily adjusted. |
Simplifying Nurses’ Work
The position of the cardiac chair can be easily adjusted with a single button, optimizing respiratory function and cardiac output.
One button nursing operating position: bed platform 780mm high from the ground, helping the nurse to give fast treatment in a very comfortable height.
Electric CPR button is setted inside control panel and nurse control panel,one button to make the back plate flat.
SAFE AND EASY TO OPERATE
Just one-hand operation required to effortlessly release and lower the split safety siderail.
CUSTOMISED CONTROL CONCEPTS
Nursing staff and patients require safe and convenient bed operation options. Our ‘light’ version control panel provides customized features both inside and outside the bed. By prioritizing essential functions, operation becomes significantly simpler. An easily accessible handset with ergonomic buttons is also provided as an alternative.
QUICK EMERGENCY ADJUSTMENTS
During resuscitation,it serves as a crucial aid. The shock position can be instantly activated using the easily accessible emergency lever at the head end or by using the control devices. Quickly removable headboards and footboards allow unimpeded access to the patient.
Nurse lock funtion,one button flat.
EFFORTLESS MOBILITY
Its compact dimensions make it ideal for use in multi-bed rooms. Good maneuverability is crucial to facilitate the work of staff and prevent collisions.The modern castors make the bed easy to move,while fifth castor facilitates maneuvering around tight corners.
PATIENT WEIGHT UNDER CONTROL AT ALL TIMES
The exclusive weighing system was designed to guarantee a high level of precision independently from the mattress platfom’s position.
Thanks to the 4 sensors located at the comers of the bed, the load is better distributed and the reading level more accurate.
The weighing data can be recorded manually whenever necessary or automatically every 24 hours.
Weighing system,accurate to 0.01Kg, with data storage system store 10times datas.
Advantages For Patient Comfort

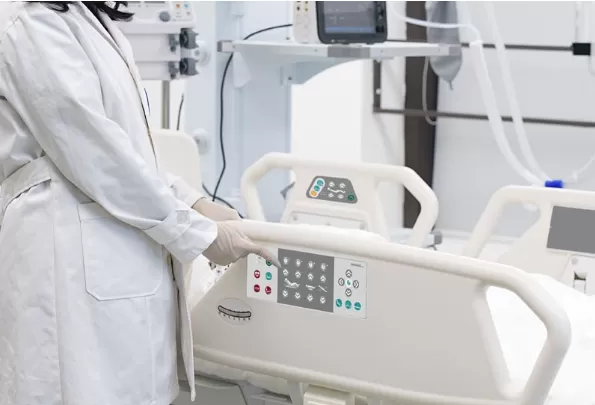

Easy operation using the control panel “light”
Staff and patients benefit from the tailor-made convenience and care functions that are available on either side of the “light”-version control panel.The panel can be integrated in the split safety sides if required.
Easy bed adjustment with the “control panel light" version
The “control panel light” version is always within easy reach of patients. The straightforward adjustment options are easy to understand even for people with cognitive impairment.
The “light”-version control panel is always at eye level for the patient.
Technical Specifications
| External size(LxW) | (2120-2320)×1010 mm |
| Mattress platform | (1750+200)×830 mm |
| Safe working load | 250 kg |
| Height adjustment | 550-950 mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-20°(±10°) |
| Reverse trendelenburg | 0-18°(±2°) |
| Trendelenburg | 0-18°(±2°) |
| Leg extension board Adjustment | 0-68°(±2°) |
| Angle indicator | 0-15° |
| Backrest-regression | 75 mm |
| LINAK Motor | ● |
| 6" Double Side Secure®Castors, Central Locking | ● |
| ABS Side Rail with Integrated Control Panel | ● |
| ABS Bed Ends One Step Removable | ● |
| Φ85mm Wall Bumper Wheel | ● |
| IV Pole | ● |
| IV Pole Prevision | ● |
| Drainage Hook | ● |
| 5th Directional Wheel Pedal | ● |
| Central Locking Pedal | ● |
| X-ray Translucent Mattress Platform(Backrest) | ● |
| Back-up Battery | ● |
| Night Light | ● |
| Trapeze Socket | ● |
| 7cm Mattress | ● |
| Bed Push Handle for Emergency Transfer | ● |
| Emergency Stop Button | ● |
| Weighing system | ● |
| Guardrail LCD Screen with sensor key | ● |
| Manual CPR | ● |
| Electric CPR | ● |
| Monkey Pole | ○ |
Note:
●-Yes
○-Optional
FAQs – ICU Smart Electric Hospital Bed
Q: What is the patented backrest retraction feature?
A: Backrest automatically retreats 75mm when raised, reducing pressure and shear forces in the abdominal region to prevent pressure ulcers and wound tugging.Q: How does the 75mm retraction benefit patients?
A: Extends bed surface in pelvic area, alleviates pressure concentration, reduces friction, and proactively prevents bedsore development.Q: What are the bed adjustment ranges?
A: Height: 550–950mm; Backrest: 0–75°; Knee-rest: 0–20°; Trendelenburg/Reverse: 0–18°; Leg extension: 0–68°.Q: What one-button functions simplify nursing work?
A: Cardiac chair position, nursing position at 780mm height, and electric CPR for instant backrest flattening.Q: How accurate is the weighing system?
A: 4 sensors, accurate to 0.01kg, with automatic/manual recording every 24 hours and data storage for 10 readings.Q: What safety features are included?
A: 6" double side Secure® castors with central locking, emergency stop, nurse lock function, X-ray translucent backrest, and backup battery.Q: How easy is it to move the bed?
A: Effortless mobility with modern castors and optional fifth directional wheel for tight corners. Compact design for multi-bed rooms.Q: What is the safe working load?
A: Maximum 250 kg – suitable for bariatric patients and critical care equipment.Q: What motors does this bed use?
A: Equipped with LINAK motors – globally recognized for reliability, quiet operation, and durability.Q: What are the external dimensions?
A: 2120–2320mm × 1010mm (L×W) with mattress platform 1750+200mm × 830mm.Q: What control options are available?
A: Light version control panel (inside/outside), ergonomic handset, ABS side rail with integrated LCD and sensor key.Q: How does the emergency system work?
A: Emergency lever at head end, removable head/foot boards, and electric/manual CPR for rapid resuscitation access.Q: What standard accessories are included?
A: IV pole, drainage hooks, night light, central locking pedal, 7cm mattress, bed push handle, and trapeze socket.Q: Can the bed be customized?
A: Yes. Optional monkey pole and various control panel configurations available. Contact us for specific requirements.
