Z7z ICU Smart Electric Hospital Bed (SKZH-ZBCZ)
Innovation Patents

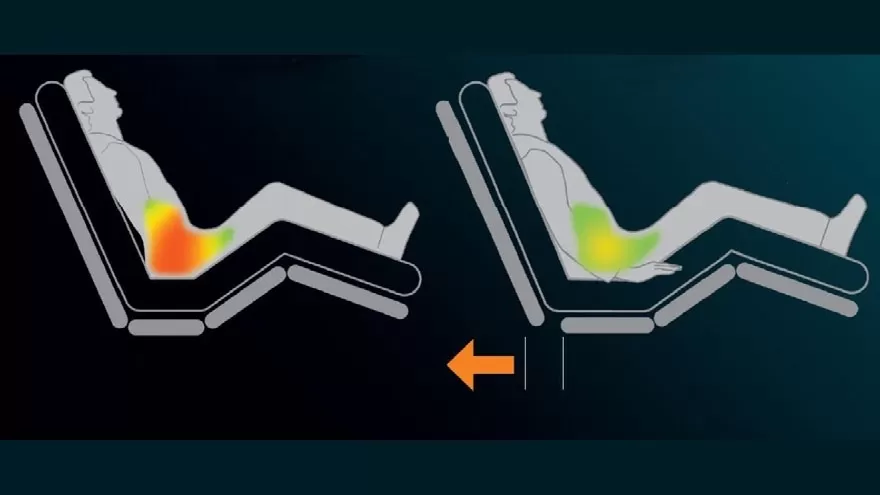

DUAL RETRACTION PATENTED DESIGN INNOVATIVE 75+15 mm
-Pressure ulcers,or bedsores,result from prolonged pressure and friction on skin and underlying tissues.
-The dual retraction feature in a medical bed extends and distributes pressure evenly,reducing pressure concentration on the pelvic area.
-This design enhances patient comfort and prevents pressure ulcer occurrence proactively.
-The patented feature is applied to the backrest and thighrest,retracting them by 75mm and 15mm respectively.
-Retracting these components extends the bed surface in the pelvic area,alleviating pressure and shear forces,thus minimizing pressure ulcer risk.
-The innovative design prioritizes patient well-being and offers a proactive solution for pressure ulcer prevention.
Backrest 30-degree smart stop: The clinically recommended position for preventing respiratory complications. Research shows that the 30-degree position significantly reduces the risk of lung infections.
Advantages For Smarter Work
|
|
|
| Back-rest | Knee-rest | Bed height min. |
 |  |  |
| Bed height max. | Reverse Trendelenburg | Trendelenburg |
 |  |  |
| Lateral tilt right | Lateral tilt left | The CPR adjustment |
Simplifying Nurses' Work
The position of the cardiac chair can be easily adjusted with a single button,optimizing respiratory function and cardiac output.
One button nursing operating position: bed platform 780mm high from the ground, helping the nurse to give fast treatment in a very comfortable height.
Electric CPR button is setted inside control panel and nurse control panel,one button to make the back plate flat.
CUSTOMISED CONTROL CONCEPTS
Nursing staff and patients require safe and convenient bed operation options. Our ‘light’ version control panel provides customized features both inside and outside the bed. By prioritizing essential functions, operation becomes significantly simpler. An easily accessible handset with ergonomic buttons is also provided as an alternative.
QUICK EMERGENCY ADJUSTMENTS
During resuscitation,it serves as a crucial aid. The shock position can be instantly activated using the easily accessible emergency lever at the head end or by using the control devices. Quickly removable headboards and footboards allow unimpeded access to the patient.
Advantages For Patient Comfort
Easy operation using the control panel “light”
Staff and patients benefit from the tailor-made convenience and care functions that are available on either side of the “light”-version control panel. The panel can be integrated in the split safety sides if required.
Easy bed adjustment with the “control panel light" version
The “control panel light” version is always within easy reach of patients.The straightforward adjustment options are easy to understand even for people with cognitive impaiment.
The “light”-version control panel is always at eye level for the patient.
Technical Specifications
| External size (LxW) | 2127x1070 mm |
| Mattress platform | 1925x900 mm |
| Safe working load | 250 kg |
| Height adjustment | 530-930 mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-35°(±10°) |
| Reverse trendelenburg | 0-15°(±2°) |
| Trendelenburg | 0-15°(±2°) |
| Lateral Tilt | 0-17°(±2°) |
| Angle indicator | 0-90° |
| Auto-regression | 75+15mm |
| Position line | 30° |
| Motor LINAK | ● |
| Motor de columna telescópica | ● |
| Ruedas de 6'' con doble seguridad® y bloqueo central | ● |
| Barandilla lateral de PP con panel de control LCD integrado | ● |
| Extremos de la cama de PP con cierre de seguridad | ● |
| Plataforma de la cama de resina fenólica transparente a los rayos X | ● |
| Indicador de ángulo patentado | ● |
| Rueda con parachoques de pared de Φ85mm | ● |
| Enchufe trapezoidal | ● |
| Portaiv | ● |
| Previsión para portaiv | ● |
| Gancho de drenaje | ● |
| Pedal de bloqueo central | ● |
| Sujeta colchón de PP | ● |
| Control de enfermera | ● |
| Botón de parada de emergencia | ● |
| Luz nocturna | ● |
| RCP manual | ● |
| RCP eléctrica | ● |
| Sistema de pesaje | ● |
| Barra para monos | ○ |
Note:
●-Yes
○-Optional
FAQs – ICU Smart Electric Hospital Bed
Q: What is the dual retraction patented design?
A: The backrest retracts 75mm and thighrest retracts 15mm, extending the pelvic area surface to distribute pressure evenly, reduce shear forces, and proactively prevent pressure ulcers.Q: What is the 30-degree smart stop feature?
A: The backrest automatically stops at 30° – the clinically recommended position that significantly reduces risk of lung infections and respiratory complications.Q: What one-button functions are available?
A: - Cardiac chair position: Optimizes respiratory and cardiac function
Nursing operating position: Bed platform at 780mm height for comfortable nursing care
Electric CPR button: Instantly flattens backrest for resuscitation
Q: What are the bed adjustment ranges?
A: - Height: 530–930mm
Backrest: 0–75° (±10°)
Knee-rest: 0–35° (±10°)
Trendelenburg/Reverse: 0–15° (±2°)
Lateral tilt: 0–17° (±2°)
Q: What is the safe working load?
A: Maximum 250 kg – suitable for bariatric patients and critical care equipment.Q: What motors does this bed use?
A: Equipped with LINAK motors – globally recognized for reliability, quiet operation, and durability in medical environments.Q: How does the bed help during emergencies?
A: - Emergency lever at head end for instant shock position
Quickly removable headboards and footboards for unimpeded patient access
Electric CPR button for immediate flat positioning
Q: What control options are available?
A: - Light version control panel with essential functions, available inside/outside bed
Ergonomic handset for patient use
Nurse control panel
LCD-integrated side rail panel option
Q: What safety features are included?
A: - 6" double safety castors with central locking
Emergency stop button
PP side rails with safety lock
X-ray transparent phenolic resin bed platform
Angle indicator (0–90°)
Q: What standard accessories are included?
A: - IV pole holder
Drainage hooks
Central locking pedal
PP mattress retainer
Night light
Manual & electric CPR
Weighing system
Q: What are the external dimensions?
A: 2127×1070 mm (L×W) with mattress platform 1925×900 mm.Q: Can the bed be customized?
A: Yes. Optional accessories include mono bar, and various control panel configurations. Contact us for specific requirements.Q: Is this bed suitable for ICU and critical care?
A: Yes. Designed for ICU, CCU, and emergency departments with all necessary positioning, CPR, and monitoring features.
