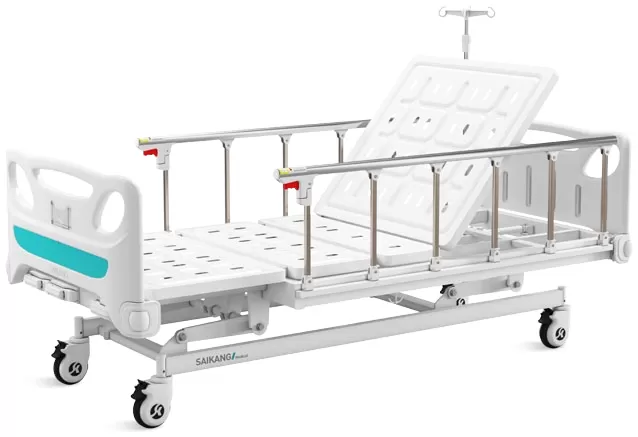

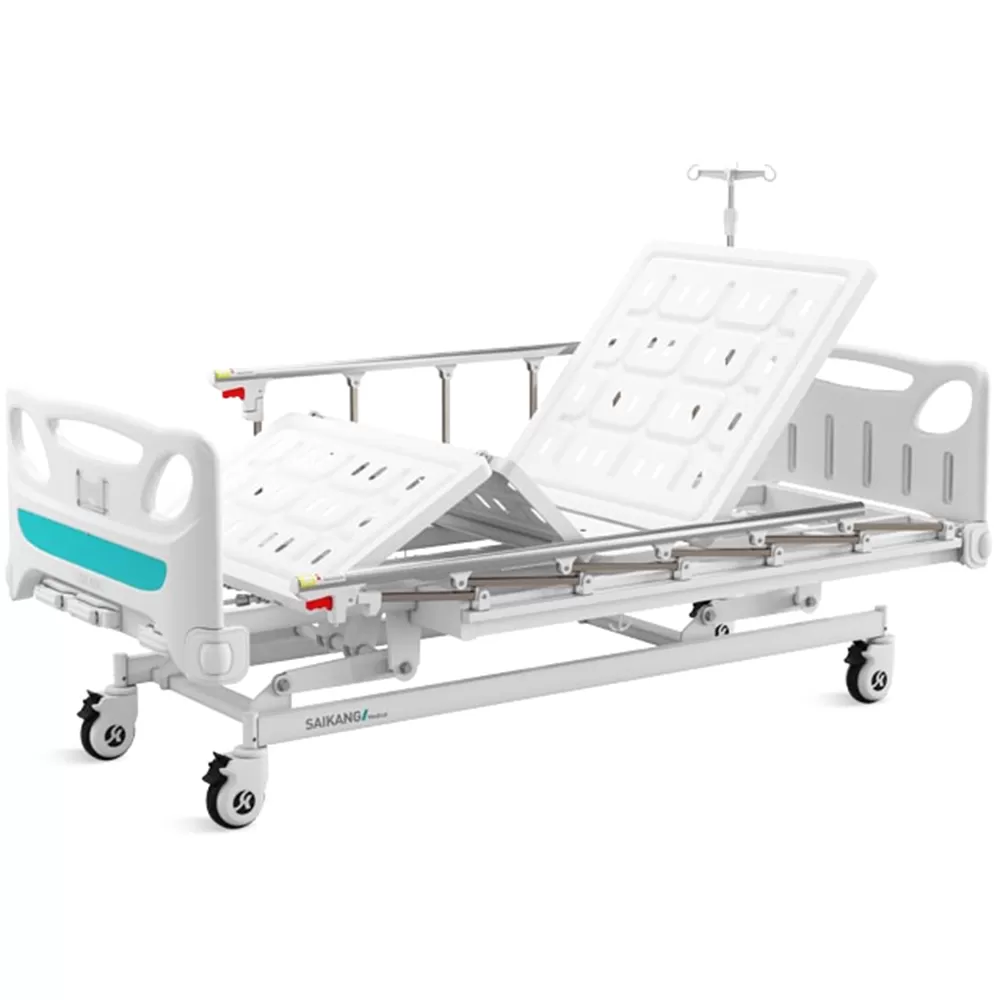

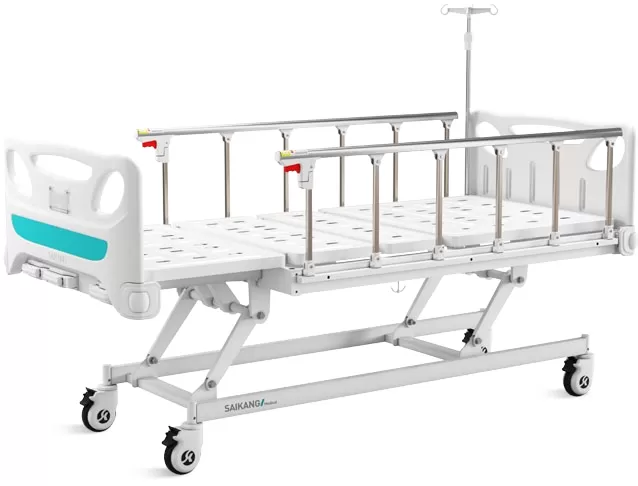

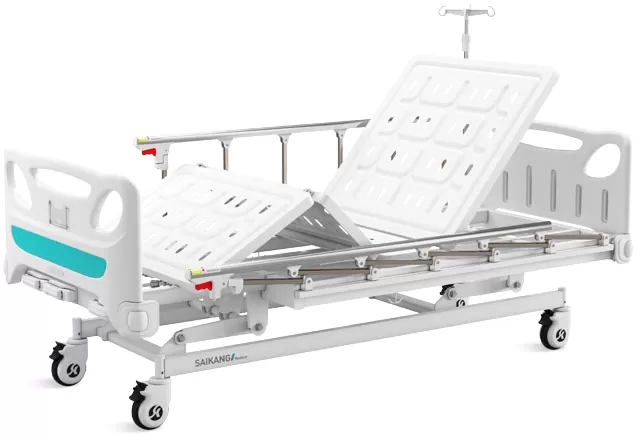

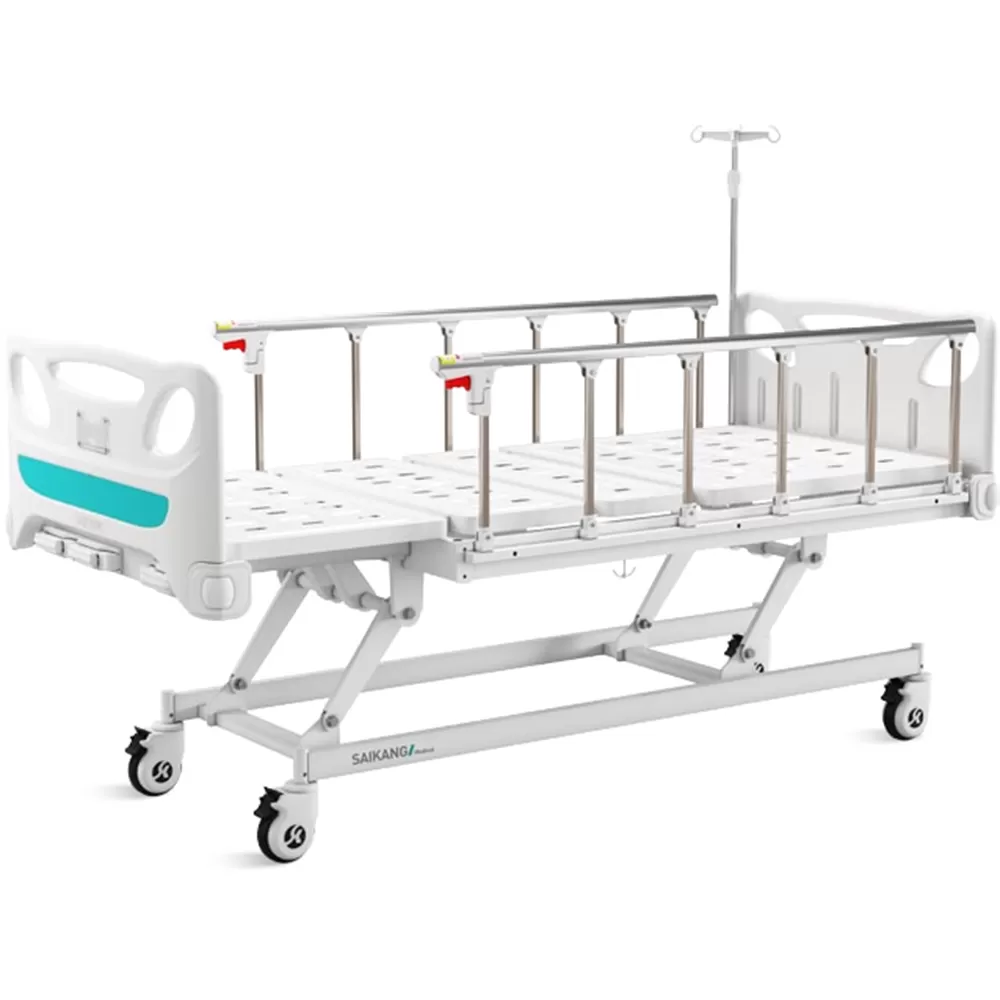

K3k Manual Hospital Bed (SK-CD1)
Highlights
Head & foot board
The head and foot boards feature”integrated protective corners”withhollow design,which are combined with barrel-type bumper wheels thathave a diameter of 60mm.
This design not only minimizes the overall space occupied by the bed butalso provides protection.
Additionally,the head and foot boards are effortless to disassemble andclean.
Castors
5”covered castors.
PR material,walks 30KM with nowear and tear.Precision-designed anti-winding shell with no screws.
Pass Dynamic test:withstand aweight of 120kg,walk 30KM,and passthrough 500 obstacles without any deformation ordamage.

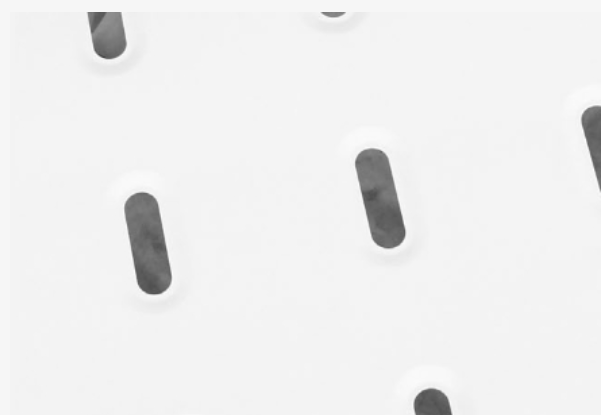

Platform
Stamping forming bed platformfeatures arobot-welded surfacethat has been polished toperfection,leavingno weldingscars.Bearing 200kg.

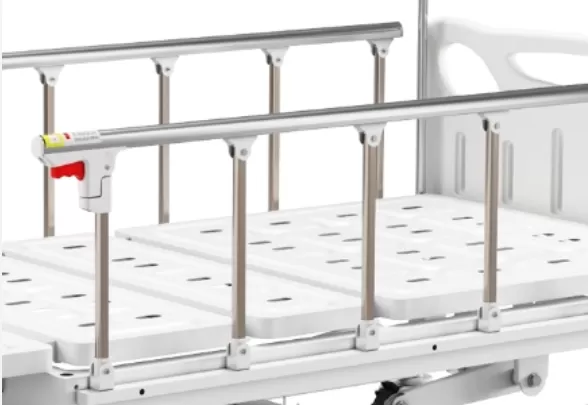

Siderail
The siderails are made oflaluminium alloy horizontal bar,6vertical stainless steel poles and aplastic handle.
Hand Cranks
Three retractable hand cranks tocontrol back-rest,knee-rest andheight.The hand cranks remainintact after 100,000 uses.

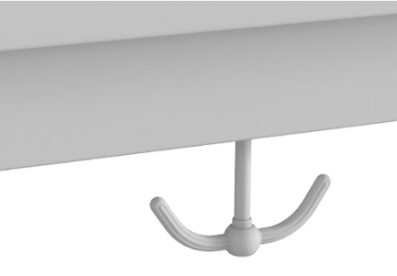

Drainage Hooks
ABS drainage hook*2pcs.

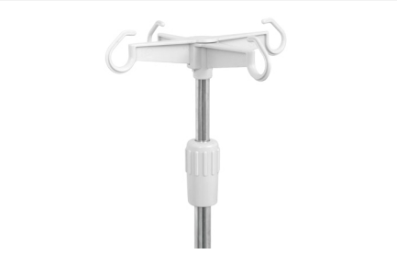

IV Pole
The infusion pole is made ofstainless steel and has four plastichooks that can bear up to 15 kg ofweight.
Technical Parameters & Optional
Technical parameters
| External size (LxW): | 2160x980 mm |
| Mattress platform: | 1930x830±10mm |
| Safe workingload: | 200 kg |
| Height adjustment: | 400-710mm |
| Back-rest adjustment: | 0-85°(±10°) |
| Knee-rest adjustment: | 0-45°(±10°) |
Technical configuration
| Manual Crank | 3pcs |
| 5" Covered Castors | 4pcs |
| Foldable Side Rail | 1set |
| PP Bed Ends with Safe Lock | 1set |
| IV Pole | 1set |
| IV Pole Prevision | 4pcs |
| Drainage Hook | 2pcs |
| ABS Mattress Retainer | 2pcs |
Optional
85°±10°
Back-rest adjustment
45°±10°
Knee-rest adjustment
400-710mm±10mm
Height adjustment
FAQs – K3k Manual Hospital Bed (SK-CD1)
Q: What is the height adjustment range of this manual bed?
A: 400-710mm – three cranks independently control backrest, knee-rest, and height for versatile positioning.Q: How durable are the hand cranks?
A: Tested to 100,000 uses without failure – long-lasting mechanical reliability for daily clinical use.Q: What are the backrest and knee-rest adjustments?
A: Backrest: 0–85° (±10°); Knee-rest: 0–45° (±10°) – optimal for patient comfort and medical positioning.Q: What is the safe working load?
A: 200 kg – robust construction ensures reliable patient support and safety.Q: How durable are the castors?
A: 5" covered castors with TPR material – 30KM walk test with 120kg load, pass 500 obstacles, no wear or deformation.Q: What is special about the head and foot boards?
A: Integrated protective corners with 60mm bumper wheels – space-saving, protective, and effortless to disassemble and clean.Q: What material are the siderails?
A: Aluminum alloy horizontal bar, 6 vertical stainless steel poles, and plastic handle – strong, hygienic, and durable.Q: How is the bed platform constructed?
A: Stamping forming with robot-welded surface, polished to perfection – no welding scars, bearing 200kg.Q: What are the external dimensions?
A: 2160×980mm (L×W) with mattress platform 1930×830mm (±10mm).Q: What standard accessories are included?
A: 3 manual cranks, 4 castors, foldable side rail, PP bed ends with safe lock, IV pole, 4 IV pole prevision, 2 drainage hooks, 2 ABS mattress retainers.Q: Is the IV pole sturdy?
A: Stainless steel with 4 plastic hooks – bears up to 15kg weight.Q: What optional features are available?
A: Various options available – contact us for specific requirements.
