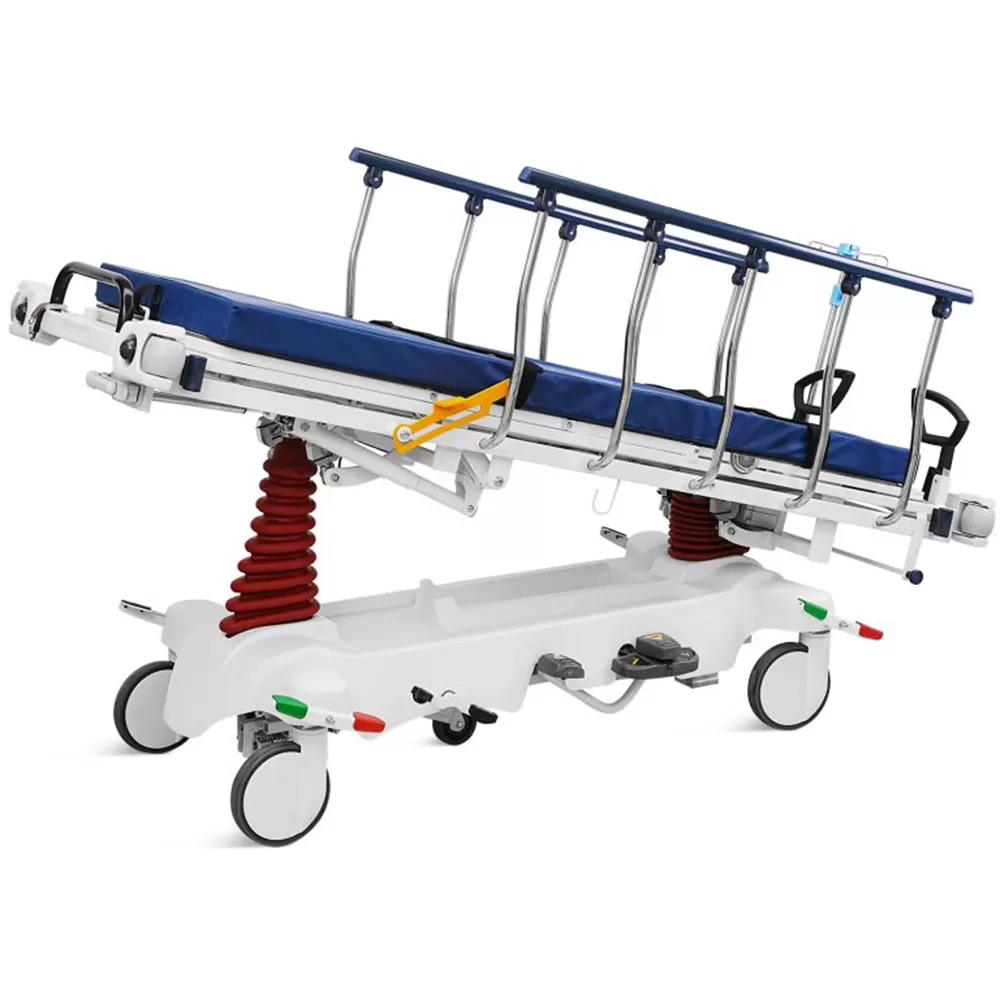

Medical Patient Transport Trolley SKB041-6
Functions
 |  |
Safe working load 250kg | Back-rest adjustment 85° |
 |  |
| Knee-rest adjustment 50° | Height adjustment 550-860mm |
 |  |
| Reverse trendelenburg 15° | Trendelenburg 15° |
Highlights
Design
Multi-functional, ergonomic, suitable for transporting and moving patients, and provide patients and medical staff comfortable experience.
Structure
Composed of the trolley body, two hydraulic cylinders, the back gas spring mechanism, the leg rocker mechanism and the foot pedal, these systems which can realize adjustment of trolley’s position.
Plastic｜Painting
Environmentally friendly plastic is non-toxic and tasteless, and can be sterilized at temperatures above 100℃. Vivid color.
Hydraulic system
Two hydraulic cylinders provide strong support for the lifting and trendelenburg/reversed trendelenburg of the trolley.
Platform
The back bed plate is made of phenolic resin, which is X-ray transparent; The other three plates are made of powder coated steel.
X-ray holder
X-ray holder on the back.
Guardrail
Foldable high-strength 5-gears guardrail to maintain patient safety; Guardrail use method: Open the guardrail switch, push guardrail to the direction of the leg; Pull up the guardrail, lock the guardrail with the guardrail switch, and keep the guardrail standing.
Bumper
4 built-in removable and durable bumper wheels, diameter 75mm±1mm.
Base cover
PP base cover which can place items and oxygen cylinder.
Castors
Technical parameters
| External size(LxW): | 2200×770mm(±10 mm) |
| Table height adjustment: | 550-860mm(±10mm) |
| Back plate adjustment: | 0-85°(±5°) |
| Knee-rest adjustment: | 0-50°(±5°) |
| Reverse Trendelenburg: | 0-15°(±2°) |
| Trendelenburg: | 0-15°(±2°) |
| Static Load Capacity: | 250 kg |
| Dynamic Load Capacity: | 135kg |
Configuration
| 8-inch Central Control Castors | 4pcs |
| Hydraulic Pumps | 2pcs |
| 5-speed Foldable Guardrails | 1pair |
| Stainless Steel Infusion Pole | 1pc |
| Infusion Stand Holes | 4pcs |
| Back Lifting Gas Springs | 2pcs |
| Back Angle Displays | 2pcs |
| Patient Restraints/Straps | 2pcs |
| Leg Lifting Crank Handle | 1pc |
| Anti-collision Wheels | 4pcs |
| Foot Pedals | 2sets |
| Central Control Brakes with side brake structure | 4pcs |
| Fifth Castor | 1pc |
| Bottom Plastic Cover | 1pc |
| 8cm PU Mattress | 1pc |
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQs:
1. What is the SKB041-6 Patient Transportation Trolley used for?
It is designed for safely transporting and moving patients within hospitals or medical facilities, offering comfortable positioning and easy maneuverability for both patients and medical staff.
2. Is the backrest X-ray compatible?
Yes, the back bed plate is made of phenolic resin, which is fully X-ray transparent, allowing imaging procedures without moving the patient.
3. What is the maximum load capacity?
The trolley has a static load capacity of 250kg and a dynamic load capacity of 135kg, ensuring robust support during transport.
4. How does the hydraulic system work?
Two hydraulic cylinders provide strong, smooth support for height adjustment (550–860mm) as well as Trendelenburg and reverse Trendelenburg positioning (0–15°).
5. What materials are used for the bed platform?
The back plate is made of X-ray transparent phenolic resin. The other three plates are constructed from powder-coated steel for durability and easy cleaning.
6. How do the guardrails operate?
The trolley features foldable high-strength 5-gear guardrails. To use: open the guardrail switch, push the guardrail toward the leg end, then pull it up and lock it with the switch to keep it standing securely.
7. What type of castors does it have?
Four 200mm central locking castors with dust-proof design prevent hair from entering and causing movement issues. A single pedal controls all four castors simultaneously.
8. Is the trolley easy to clean and disinfect?
Yes. The environmentally friendly plastic components are non-toxic, tasteless, and can withstand sterilization at temperatures above 100°C.
9. Does it have bumpers to protect walls and furniture?
Yes, it comes with four built-in removable durable bumper wheels (75mm diameter) to absorb impact and protect surrounding equipment.
10. Can the trolley hold an oxygen cylinder?
Yes, the PP base cover is designed to conveniently place items as well as an oxygen cylinder during transport.
11. What adjustments are available on the trolley?
The trolley offers backrest adjustment (0–85°), knee-rest adjustment (0–50°), Trendelenburg/reverse Trendelenburg (0–15°), and overall height adjustment (550–860mm).
12. Is the trolley suitable for bariatric patients?
With a static load capacity of 250kg and robust construction, it can accommodate a wide range of patient sizes while maintaining stability and safety.
