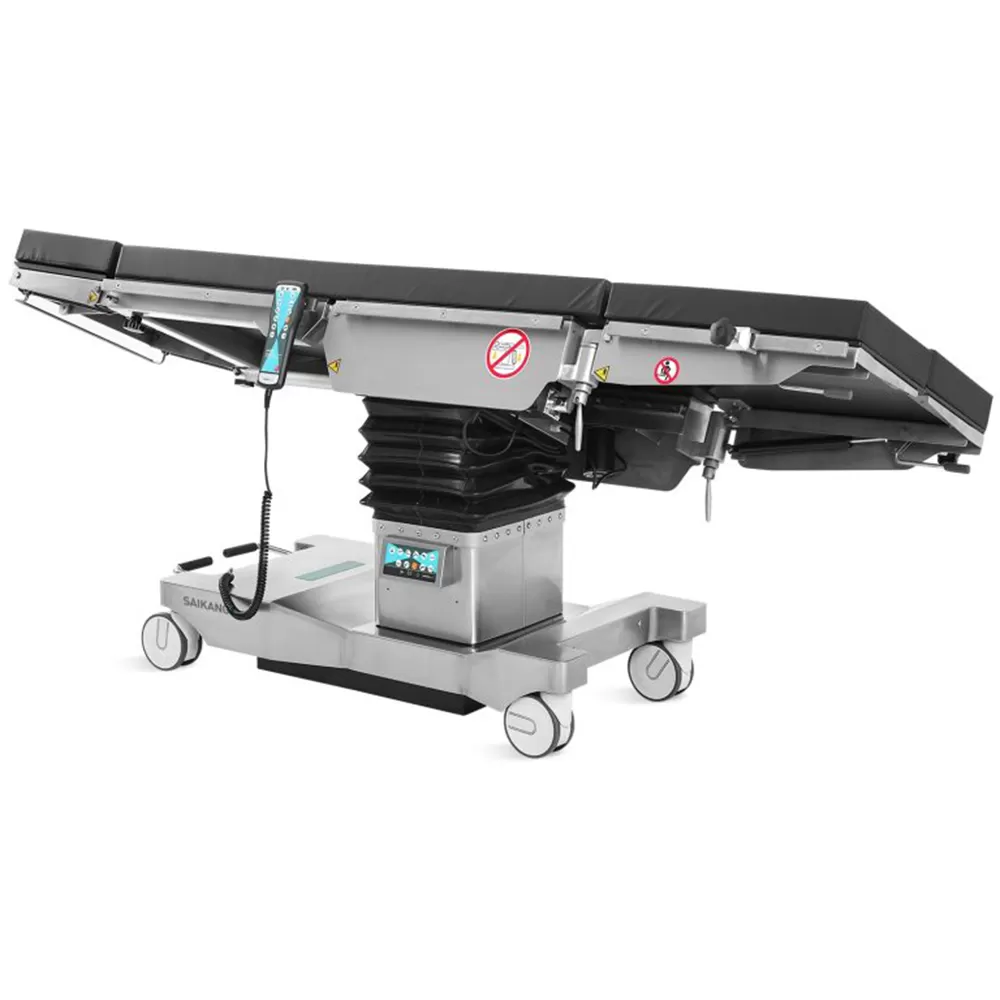

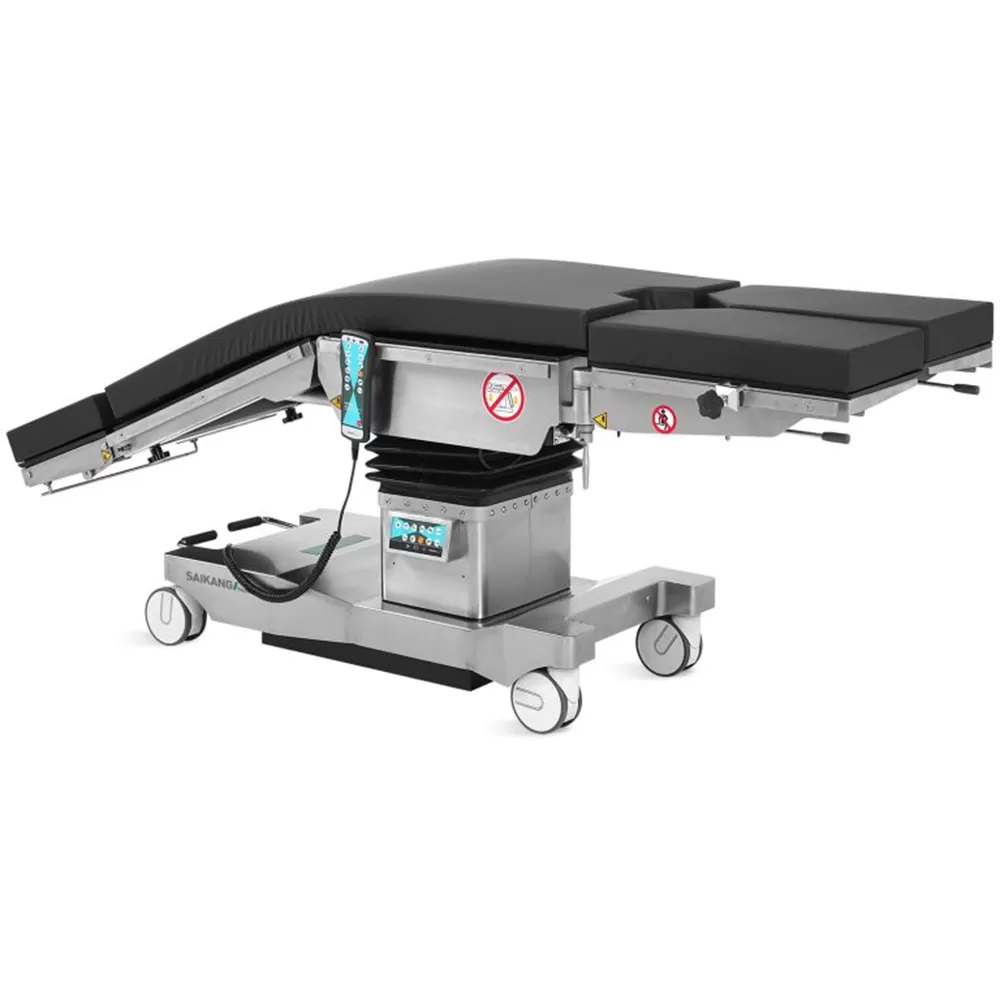

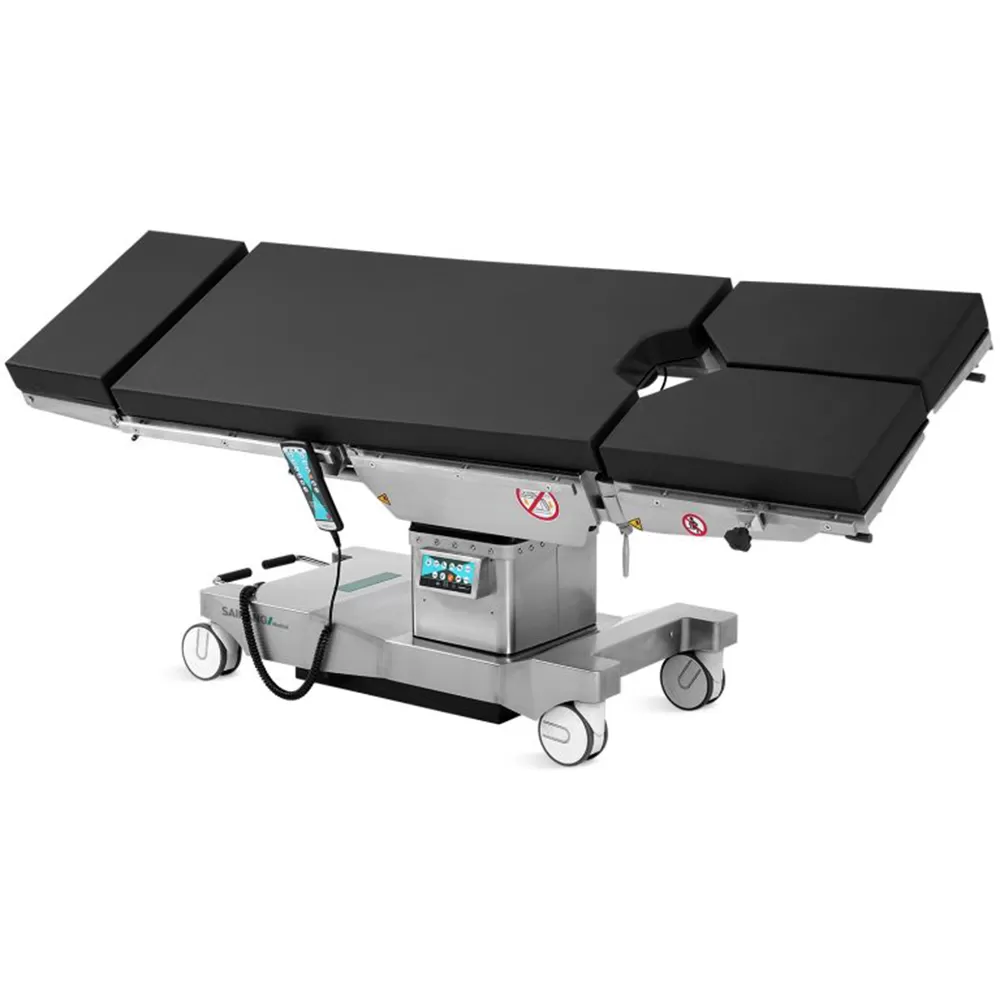

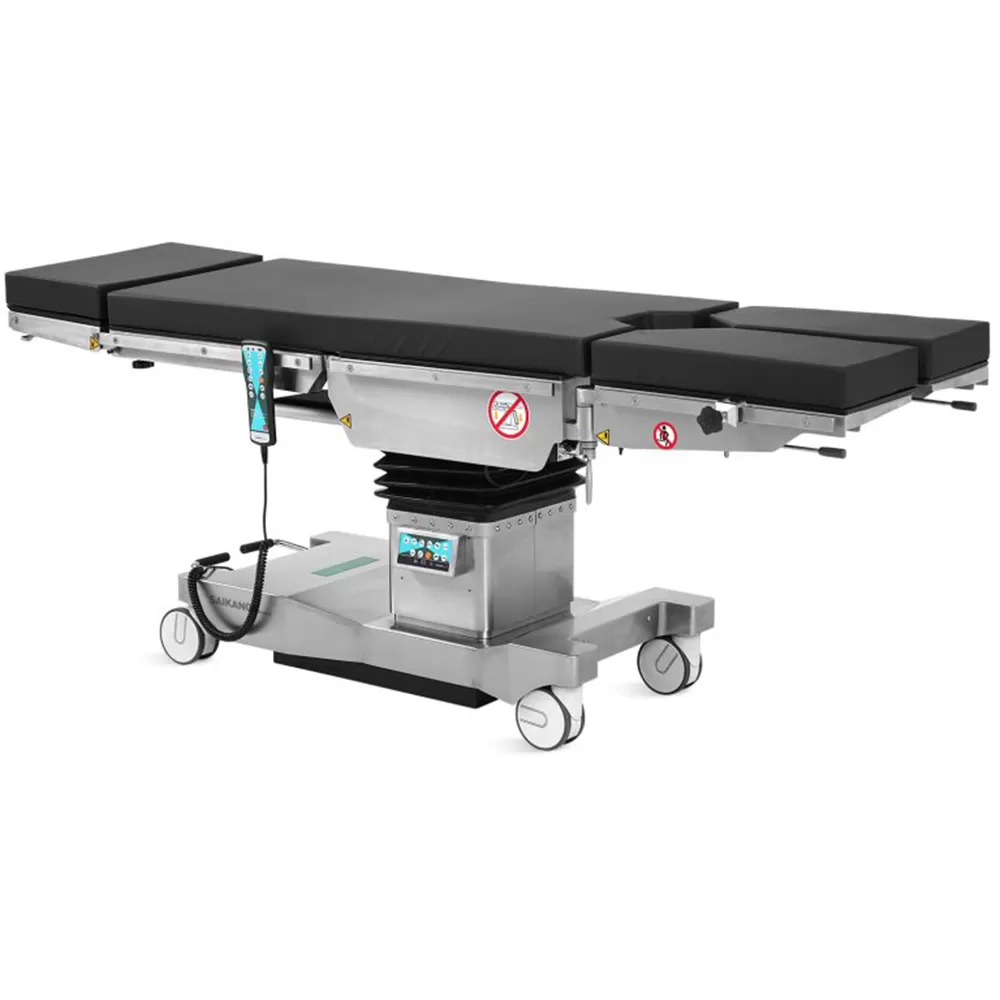

Electric Operating Table A100-4A
Feature
Head Plate
Can stop at any angle during operation.
Leg Plate
Can stop at any angle; Outward rotation requires only a slight loosening of the locking axis to achieve leg board abduction.
Material
The base seat and upright column covering are made of high quality 304 stainless steel, which is anti-corrosive and can be easily cleaned.
Hand Controller
Includes an emergency stop button and battery level display.
Braking System
Pedal Brake, Easy To Move And Lock.
Wheel
6″castors import from germany.
Mattress
Large area of velcro coverage provides strong adhesion.
Hand Controller Storage
All Function Controlled By Hand Controller and Controller in the Column, And Can Be Locked.
Battery
Working time could be last for one week according to useage and help to keep the operating table running in the event of power falure.
Kidngy Bridge
Manual kidney bridge,operate by head side rocker, more convenience.
Anesthesia Screen Frame
Equipped with a stainless steel anesthesia screen frame for hanging anesthesia curtains,used to shield and cover the patient’s head during use.
Shoulder Support
Polyurethane support frame, adjustable in angle, used to stabilize the patient’s body.

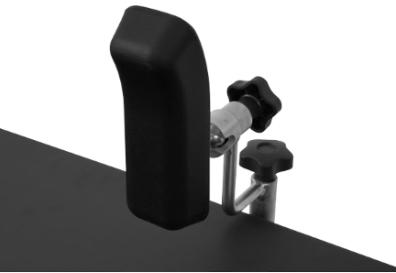

Body Support
Function
 |  |  |
 |  |  |
 |  |  |
 |  |  |
 |  |  |
Parameters
| Length/Width | 2115 × 550 mm ± 10 mm |

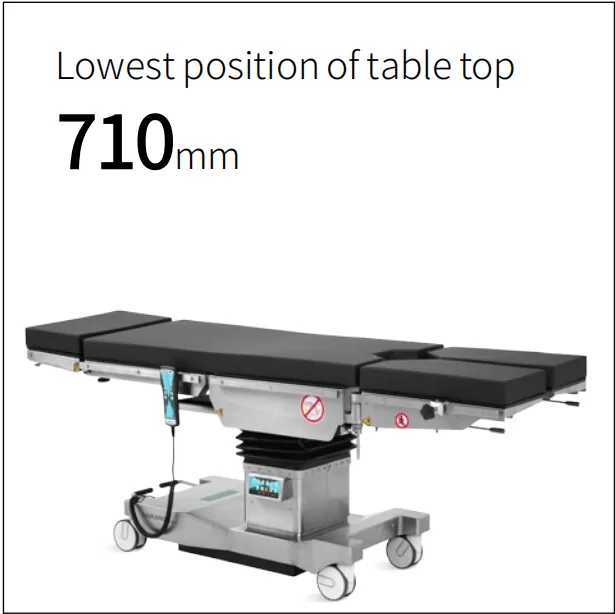

| Height Elevating/Lowering | 710-1010 mm ± 10 mm |

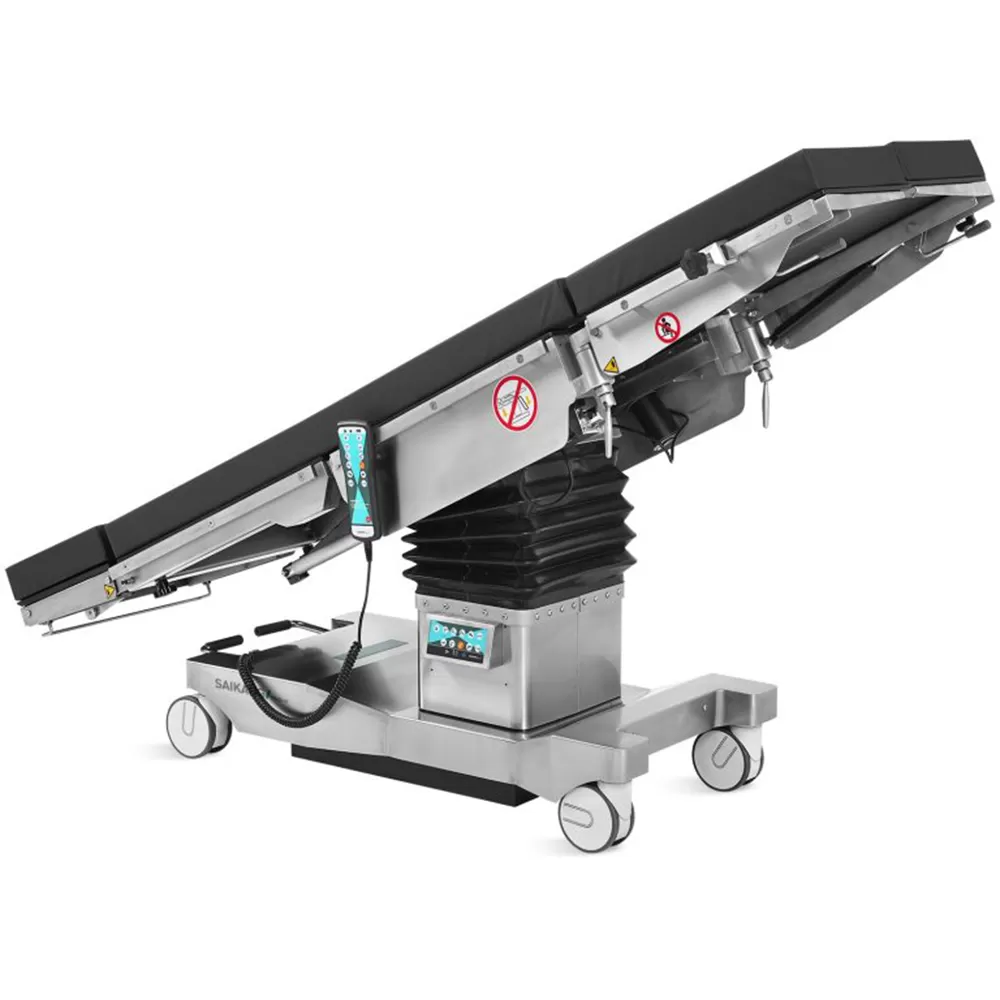

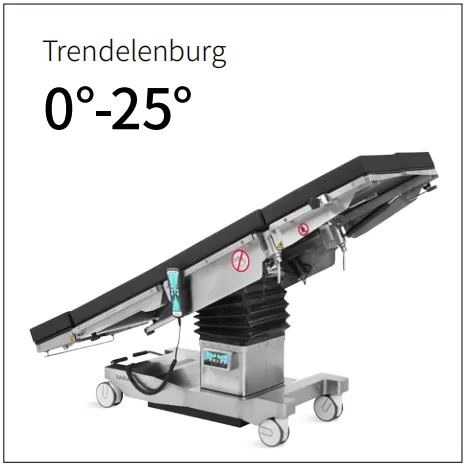

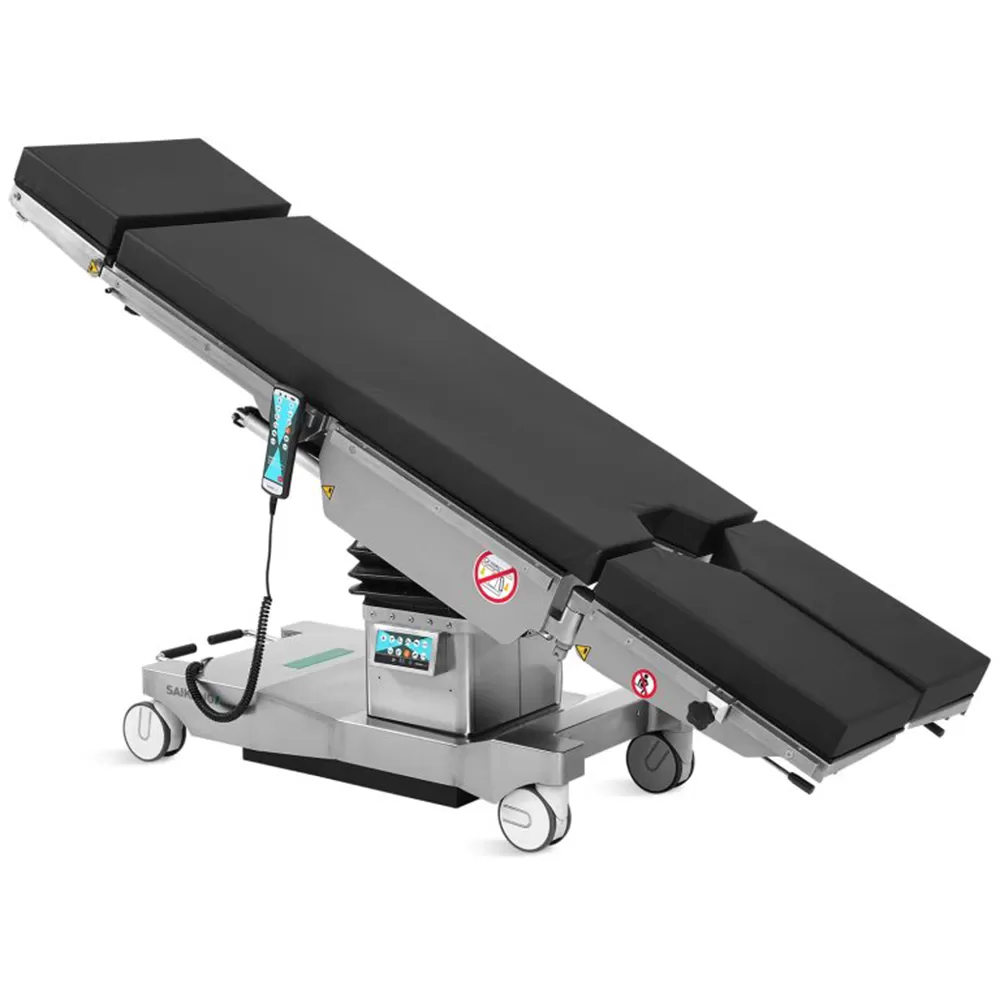

| Forward Tilt/Backward Tilt | 24° ± 3° / 24° ± 3° |
| Left Tilt/Right Tilt | 23° ± 3° / 23° ± 3° |

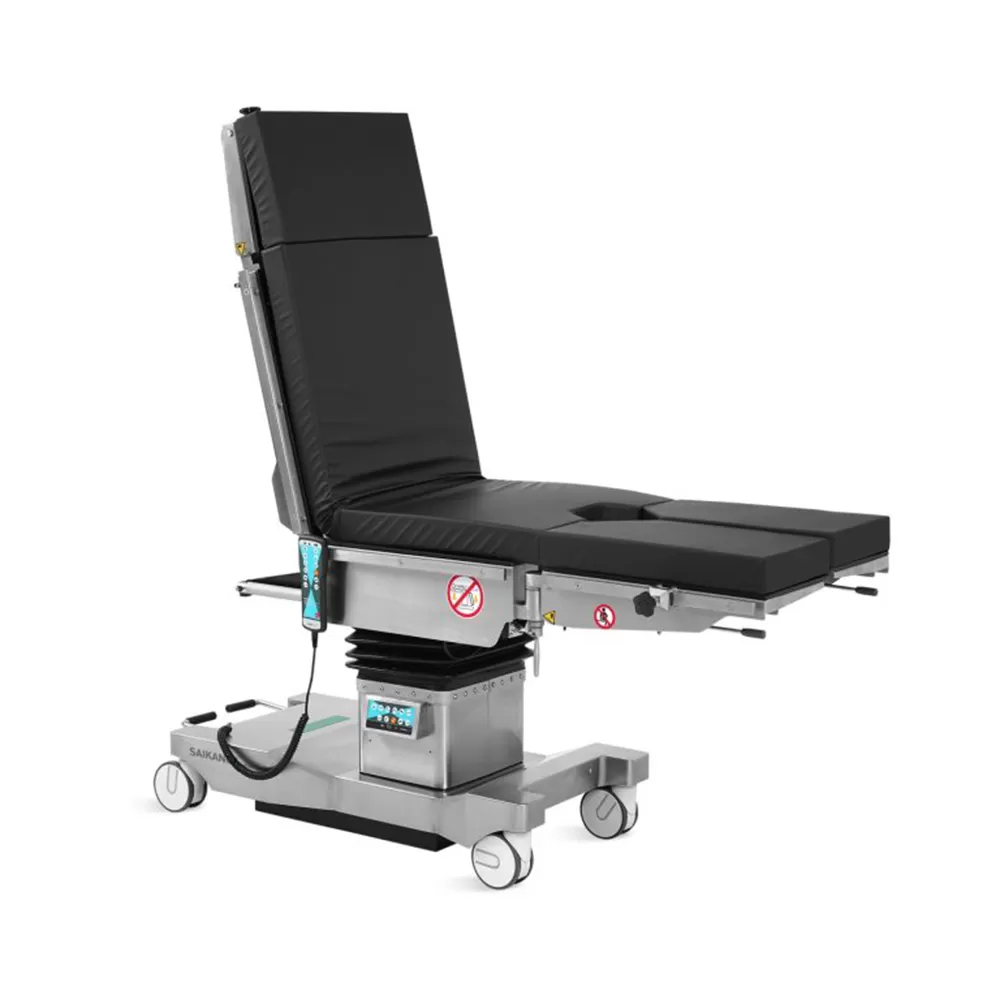

| Backrest (Up/Down) | 80° ± 3° / 20° ± 3° |

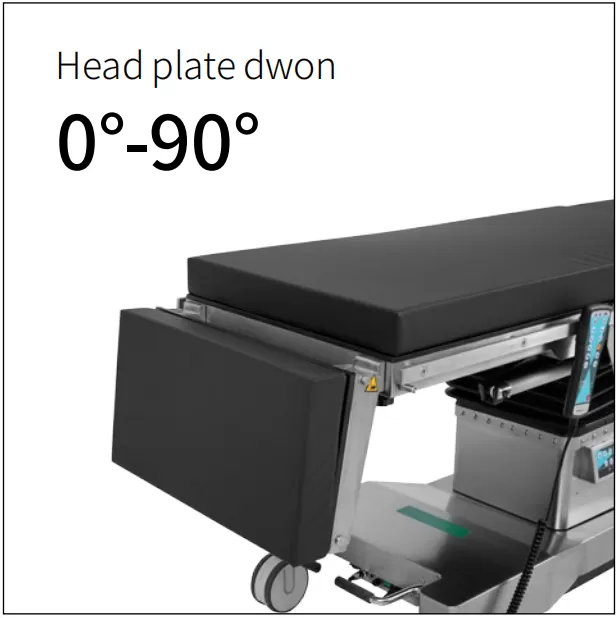

| Head Section (Up/Down) | 55° ± 3° / 90° ± 3° |

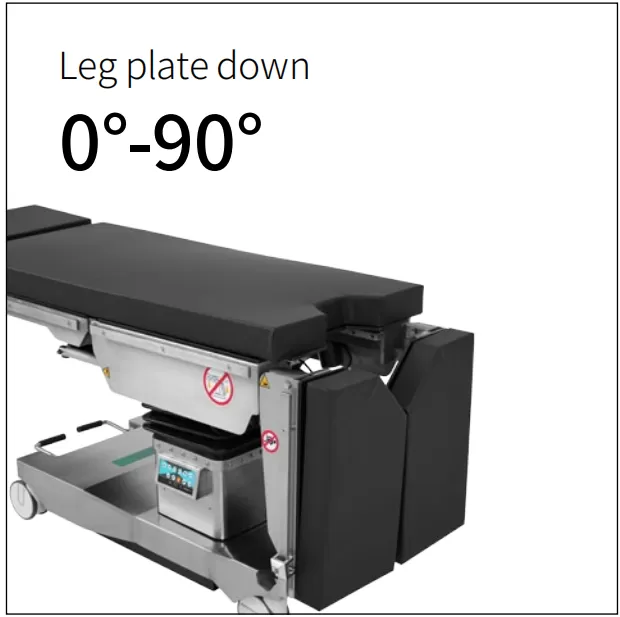

| Leg Section (Up/Down) | 15° ± 3° / 90° ± 3° |

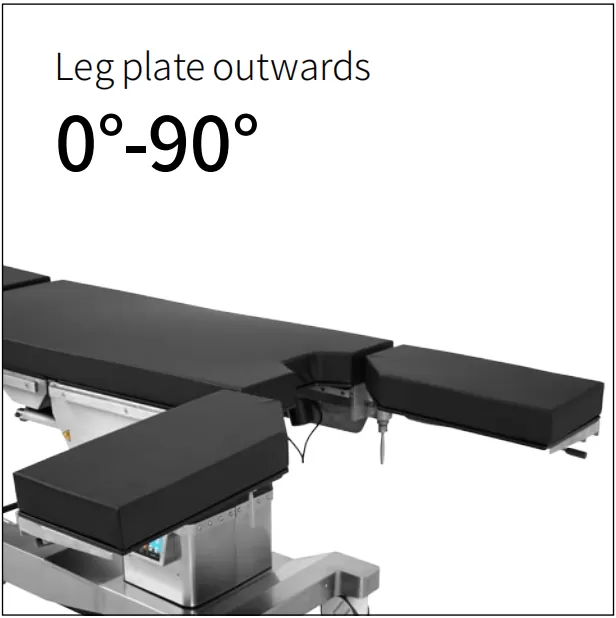

| Leg Section Outward | 90° ± 3° |
| Kidney Bridge | 140 mm ± 5 mm |

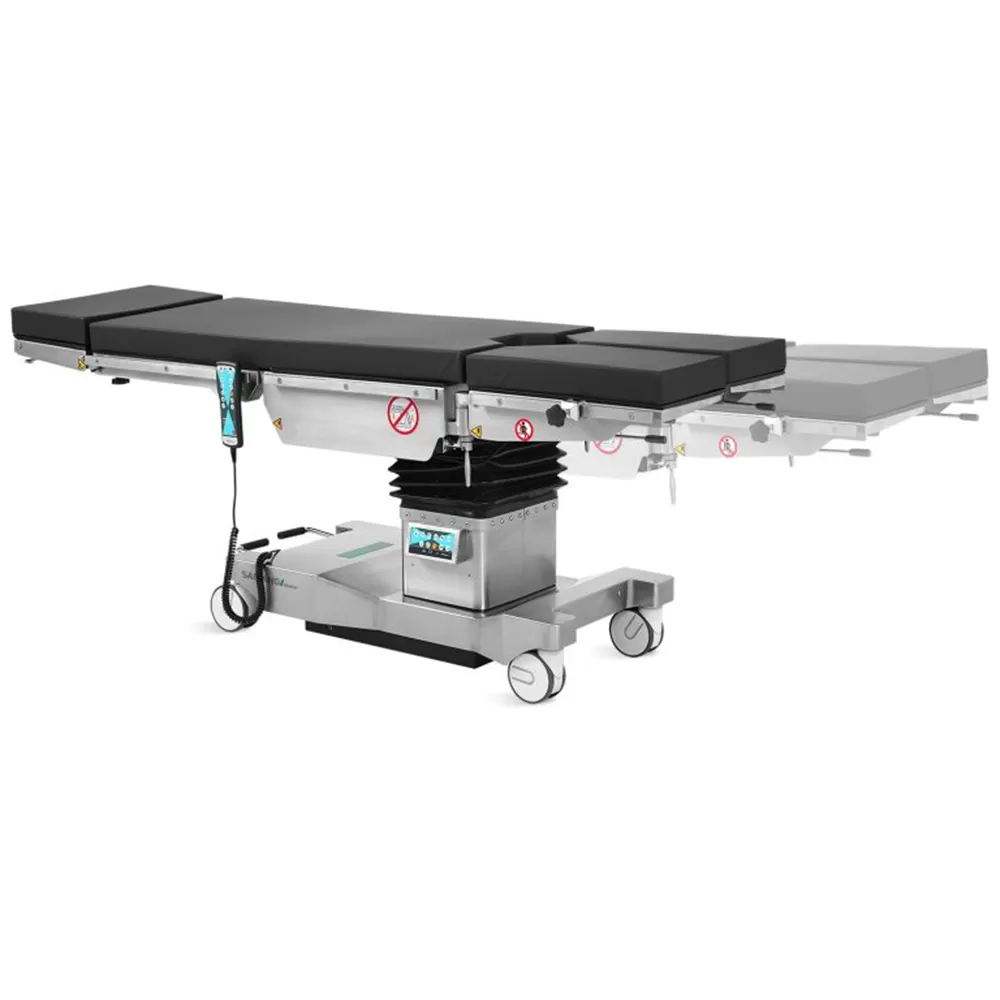

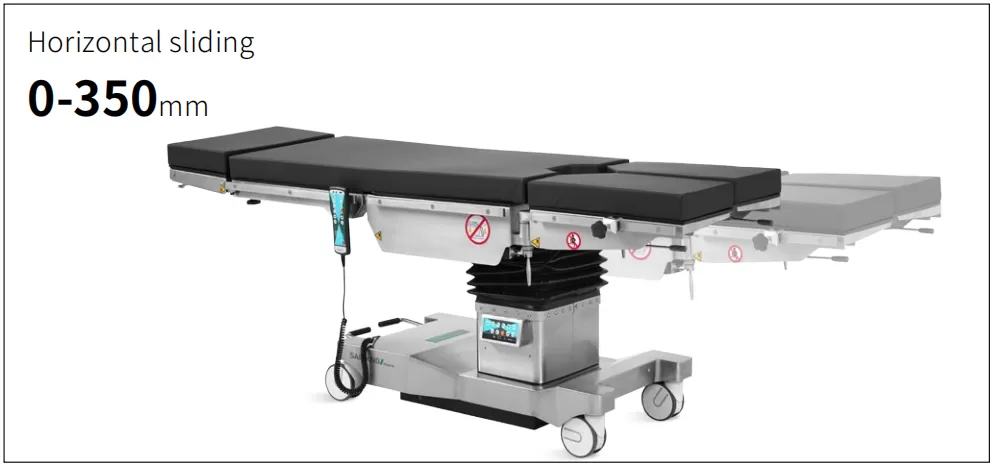

| Horizontal Sliding | 350 mm ± 5 mm |
Configuration
| Anesthesia Screen | 1 unit |
| Shoulder Supports | 1 pair |
| Arm Rests (with straps) | 1 pair |
| Lumbar Supports | 1 pair |
| Leg Supports (with straps) | 1 pair |
| Foot Plates | 1 pair |
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQ:
1. What is the maximum horizontal sliding distance of the A100-4A?
The A100-4A offers a 350mm (±5mm) horizontal sliding function, providing extensive space for C-arm access and imaging.
2. How does the head plate adjustment system work?
The head plate utilizes a vertebra link with gas spring support, allowing for quiet, one-handed, and effortless operation.
3. What are the features of the A100-4A braking and movement system?
It is equipped with high-quality 6-inch castors imported from Germany and a convenient pedal brake for easy moving and locking.
4. What is the material used for the table's exterior?
The base seat and upright column covering are made of premium 304 stainless steel, ensuring anti-corrosion and easy cleaning.
5. How long does the battery last on the A100-4A operating table?
The built-in battery supports approximately 80-120 complete operation cycles and can last for one week depending on usage.
6. How is the kidney bridge operated on this model?
The A100-4A features a manual kidney bridge (140mm elevation) operated by a head-side rocker for better clinical convenience.
7. What safety functions are integrated into the hand controller?
The controller includes an emergency stop button, a battery level display, and an automatic shut-off feature after 15 minutes of inactivity.
8. Can the leg plates be adjusted for abduction?
Yes, the leg boards can be stopped at any angle and support outward rotation (90° ± 3°) by slightly loosening the locking axis.
9. What is the height adjustment range of the A100-4A?
The table height can be electrically elevated or lowered between 710mm and 1010mm (±10mm).
10. Does the table provide stabilization for the patient's body?
Yes, it is equipped with polyurethane shoulder and body support frames, both of which are adjustable in angle to stabilize the patient.
11. How is the mattress attached to the tabletop?
The mattress is manufactured with high-frequency heat sealing technology and uses a large area of Velcro for strong, reliable adhesion.
12. Is the hand controller easy to maintain?
The hand controller features a one-click plug-and-play design, making replacement and maintenance simple and fast.
13. What are the maximum tilt angles for this operating table?
The A100-4A supports a forward/backward tilt of 24° and a lateral (left/right) tilt of 23°.
