Electric Hydraulic Operating Table A501
Feature
Purpose
This electric-hydraulic operating table is suitable for various surgical procedures,including thoracic-abdominal surgery,neurosurgery,ENT (Ear, Nose & Throat) surgery,obstetrics and gynecology, urology,and orthopedics. The material is 304 stainless steel, and the tabletop is made of high-strength composite board, which is radiolucent (X-ray transparent).
Control System
Dual independent control systems (hand controller and side controller) operate the table.lf one system fails, the other maintains full operation without interrupting surgery. Automatic lock engages after prolonged inactivity to prevent accidental manipulation. Electric-hydraulic control ensures simple operation, low noise, heavy load capacity, and stable/reliable performance. Electrically controlled casters enable movement without foot pedals.
Material
Special Functions
Built-in emergency power supply with auto-charging.Automatically activates during mains power failure. 180°tabletop horizontal rotation.
Special Functions
Integrated kidney bridge for ergonomic operation and aesthetic design.

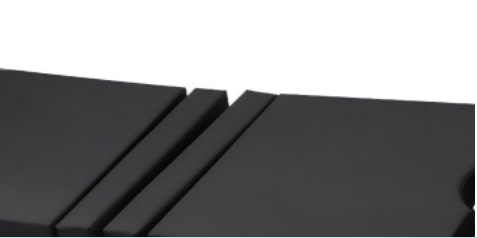

Mattress
PU leather upholstery: Anti-yellowing, mold-proof, withstands 100,000 flex cycles. 5cm thickness memory foam mattress.
Maintenance
Easily removable stainless steel covers for convenient maintenance.
Safety
Emergency stop switch.
Parameters
| Length/Width | 2125 × 550 mm ± 10 mm |
| Height Elevating/Lowering | 630-980 mm ± 10 mm |
| Forward Tilt/Backward Tilt | 20° ± 3° / 15° ± 3° |
| Left Tilt/Right Tilt | 15° ± 3° / 15° ± 3° |
| Backrest (Up/Down) | 85° ± 3° / 35° ± 3° |
| Head Section (Up/Down) | 55° ± 3° / 90° ± 3° |
| Leg Section (Up/Down) | 15° ± 3° / 90° ± 3° |
| Leg Section Outward | 90° ± 3° |
| Kidney Bridge | 120 mm ± 10 mm |
| Horizontal Sliding | 320 mm ± 10 mm |
| Tabletop Horizontal Rotation | 180° ± 3° |
Configuration
Anesthesia Screen | 1 unit |
|---|---|
| Arm Rests | 1 pair |
| Leg Supports | 1 pair |
| Lumbar Supports | 1 pair |
| Shoulder Supports | 1 pair |
A501 Electric-Hydraulic Operating Table FAQ
1. What clinical procedures is the A501 operating table designed for?
The A501 is suitable for various surgeries including neurosurgery, ENT, obstetrics, gynecology, urology, orthopedics, and thoracic-abdominal surgery.
2. Does the A501 table support intraoperative X-ray imaging?
Yes, the tabletop is made of high-strength composite board which is radiolucent (X-ray transparent) for imaging compatibility.
3. How does the dual control system protect surgical safety?
The independent hand and side controllers ensure that if one system fails, the other maintains full operation without interrupting the surgery.
4. What is the height adjustment range of the A501 operating table?
The table height can be electronically elevated or lowered between 630mm and 980mm (±10mm).
5. Can the A501 tabletop rotate horizontally?
Yes, the A501 features a 180° tabletop horizontal rotation, providing flexible positioning for different surgical requirements.
6. Does this operating table have a horizontal sliding function?
Yes, it includes a 320mm horizontal sliding feature, which is essential for C-arm access and patient positioning.
7. What material is used for the exterior of the A501?
The base cover, column cover, side panels, and rails are all constructed from high-quality, corrosion-resistant 304 stainless steel.
8. Is there an emergency power backup system included?
Yes, it has a built-in emergency power supply with auto-charging that activates immediately during a mains power failure.
9. What are the tilt angles for the A501 table surface?
The table supports a forward tilt of 20°, backward tilt of 15°, and lateral (left/right) tilts of 15°.
10. What type of mattress is provided for patient comfort?
The table comes with a 5cm thick memory foam mattress upholstered in PU leather that is anti-yellowing and mold-proof.
11. How does the integrated kidney bridge function?
The built-in kidney bridge provides an elevation of 120mm (±10mm) for ergonomic positioning during specialized procedures.
12. Are the casters on the A501 manual or electric?
The A501 is equipped with electrically controlled casters, allowing for smooth movement without the need for manual foot pedals.
13. What happens if the controllers are left inactive for a long time?
The system features an automatic lock that engages after prolonged inactivity to prevent accidental or unauthorized manipulation.
