3D Swing Spinal Therapy Bed SK-PB025

Short description:

High-performance SK-PB025 spinal bed with 200kg load capacity. Offers 8cm thick flame-retardant foam, adjustable headrest width, and steel four-leg support. Ideal for busy physiotherapy clinics....


    Product details

    information

    Highlights


    Design


    Carefully designed according to the different pressure conditions of various parts of the body, it fits the body’s curves and is suitable for use with American chiropractic techniques. It is soft, comfortable, sturdy, and easy to install.


    Base


    Selected high-quality Baosteel from Fortune Global 500 with specifications of 40*40mm, 40*80mm, and 25*50mm respectively, with a wall thickness of 1.5mm. Manually welded in one piece, with smooth weld seams, capable of bearing up to 200 kilograms.


    Coating


    The surface is coated with high-hardness powder, making it environmentally friendly, economical, and durable.


    Bed surface


    The bed surface is made of high-quality PU leather that is anti-fouling, flame-retardant, and mildew-resistant, with high-density foam,8cm thick. The base is supported by a high-density board. Available bed surface colors: black, blue, red.


    Leg support


    Cylindrical steel four-leg support, ensuring stability and safety.


    Foot Controller


    The dual control foot controller allows for height adjustment of the bed surface within the range of 570 to 890 mm.


    Headrest adjustment


    The headrest is equipped with two small motors that control vertical movement and angle tilt. The vertical movement range is 0-8cm, and the headrest can tilt up to 25 degrees upward and 25 degrees downward.


    Headrest width adjustment


    The hand-operated mechanism allows for lateral adjustment of the headrest width, making it suitable for people with different face sizes. The adjustable width is up to 6cm.


    Armrest


    The armrest bracket is a fixed bracket, designed to fit the natural downward position of the arms, providing comfort and relaxation. Load capacity: 15kg. The dimension of the armrest: L390mm*W120mm.

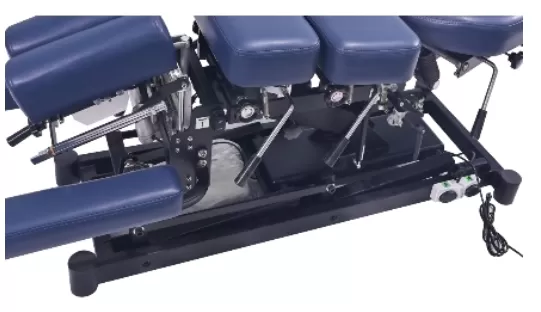

    Four-section drop function


    Four-section drop function: includes compression functions for the head, upper thoracic, lower thoracic, and lumbar regions. The bed surface can be manuall lifted and pressed down to achieve the drop function. The pressure is controlled by rotating a knob.


    Parameters

    Bed Body Dimensions (mm)L1720×W580×H570~890
    Extended Ankle Cushion Dimensions (mm)180
    Mattress Thickness (mm)80
    Lifting distance (mm)80
    Load-Bearing Capacity (kg)200
    Power input requirementsAC220V, 50Hz
    Rated power200VA
    Product Net Weight (kg)95
    Drop Function Areas head/ neck/ upper thoracic/ lower thoracic spine/ lumbar pelvis

    Should you have any inquiries or require further information on other models, please do not hesitate to contact us.

    FAQ:


    • 1. What is the primary function of the SK-PB025 therapy bed?

    • The SK-PB025 is a 3D swing spinal therapy bed designed for American chiropractic techniques, featuring manual drop functions for spinal adjustments.


    • 2. How many drop sections does the SK-PB025 include?

    • It includes a four-section drop function covering the head/neck, upper thoracic, lower thoracic, and lumbar/pelvis regions.


    • 3. How is the drop pressure controlled on this bed?

    • The drop pressure for each section is easily adjusted by rotating a dedicated control knob on the side of the bed.


    • 4. What is the height adjustment range of the SK-PB025?

    • The bed surface height can be electrically adjusted from 570mm to 890mm using a dual-control foot controller.


    • 5. Can the headrest angle be adjusted?

    • Yes, the headrest can tilt up to 25 degrees upward and 25 degrees downward, controlled by two small integrated motors.


    • 6. What is the vertical movement range of the headrest?

    • The headrest features a motorized vertical movement range of 0 to 8cm to accommodate different therapy requirements.


    • 7. Is the headrest width adjustable for different face sizes?

    • Yes, the headrest width can be manually adjusted laterally by up to 6cm to ensure patient comfort.


    • 8. What is the maximum load-bearing capacity of the bed?

    • The bed is constructed with high-quality Baosteel and can safely support a weight of up to 200 kilograms.


    • 9. What materials are used for the bed surface?

    • The surface features 80mm high-density foam covered in anti-fouling, flame-retardant, and mildew-resistant high-quality PU leather.


    • 10. Does the bed include an extended cushion for the ankles?

    • Yes, it features an extended ankle cushion with a dimension of 180mm to support taller patients during therapy.


    • 11. What are the power requirements for the SK-PB025?

    • The bed requires a power input of AC220V, 50Hz, with a rated power consumption of 200VA.


    • 12. Is the armrest adjustable or fixed?

    • The armrest is a fixed bracket designed to fit the natural downward position of the arms, supporting a load of up to 15kg.
