LED Shadowless Lamp SK-LLD7050Z
Features and Highlights
Material technology
The lampshade shell is made of aluminum + integrated ABS engineering plastic with an embedded aerospace aluminum top cover, which facilitates heat dissipation. The surface adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene.
Lamp head design
Using LED cold light source technology, the ultra-thin streamlined design meets laminar flow purification requirements. The 360° surround handle design makes operation more convenient. The thickness of the 700mm-diameter lamp head is 95mm, and the thickness of the 500mm-diameter lamp head is 85mm.

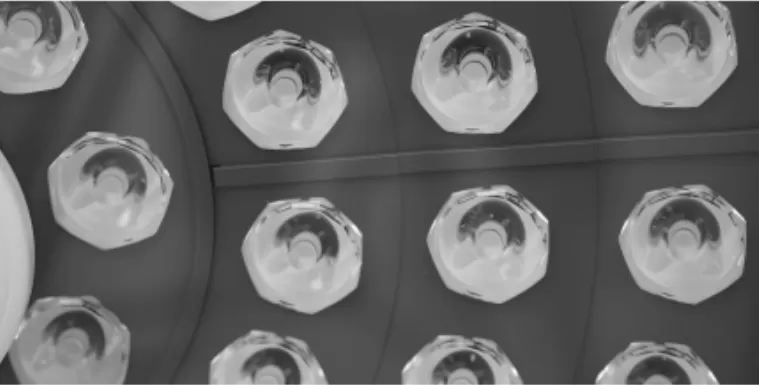

Bulb
Using the original imported LED lamp beads from Osram, Germany, the average service life is as high as 50,000 hours, which is 40 times longer life than halogen lamps. Under the same brightness, the energy consumption of LED is only 1/10 of that of ordinary incandescent lamps and 1/2 of that of halogen lamps.
Color temperature&Illumination
Using a new type of LED cold light source, the illuminance can reach 160,000 Lux, which can realize 9-level adjustment; the color temperature is in the range of 4000K-5000K with 4-level adjustment.
Color rendering index
The color rendering index reaches 95, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.
Temperature rise (surgical field)
Temperature rise (surgical field):≤0.5℃, this can avoid tissue drying due to high temperature and rapid blood clots at the wound, which will affect the operation.

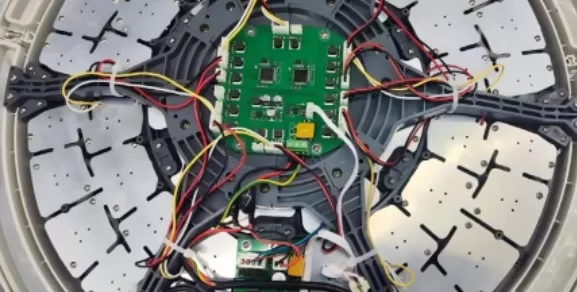

Light source components
The internal light source components are composed of ABS engineering plastic frame+aluminum substrate structure, offering excellent heat dissipation, lightweight to reduce failure rate.
Operating handle
• Central detachable disinfection handle. • Made of PPSU material. • Temperature resistance up to 134℃. • Pressure resistance up to 205.8 kPa. • Suitable for high-temperature, high-pressure steam sterilization.
Parameters & Configuration
| Lamp head diameter(mm) | 700/530±10 |
| Illuminance at 1 meter(Lux) | 40,000-160,000 |
| Brightness adjustment | 9 levels |
| Color temperature(Kelvin) | 4000-5000 |
| Color rendering index(CRI) | ≥95 |
| Spot diameter at 1 meter(mm) | 180-280 |
| Illumination depth(cm) | ≥120 |
| Surge in surgeon's head temperature(℃) | ≤1 |
| Surge in surgical field temperature(℃) | ≤0.5 |
| Light source type | LED |
| LED brand | OSRAM |
| Number of LEDs | 81 + 51 |
| LED power(W) | Rated 3W, actual use 1W |
| LED lifespan(hours) | 50,000 |
| Brightness adjustment | 4.3-inch controller 9 levels adjustment |
| Operating voltage | AC 100V-240V, 50HZ/60HZ |
| Installation | 2800-3200mm (optional 2.5m floor height customized edition) |
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQs:
1. What is the maximum illuminance of the SK-LLD7050Z shadowless lamp?The lamp provides powerful surgical illumination up to 160,000 Lux, which can be adjusted through 9 intensity levels to meet different procedural needs.
2. How does the lamp head design support laminar flow purification?It features an ultra-thin streamlined design with lamp head thicknesses of only 95mm and 85mm, minimizing air turbulence in the operating room.
3. What brand of LEDs are used in the SK-LLD7050Z?We use original imported LED lamp beads from OSRAM, Germany, ensuring high reliability and an average service life of 50,000 hours.
4. Does the lamp generate significant heat in the surgical field?No, the temperature rise in the surgical field is controlled at ≤0.5℃, preventing tissue desiccation and maintaining a comfortable environment for surgeons.
5. What is the Color Rendering Index (CRI) of this medical light?The SK-LLD7050Z has a CRI ≥95, which accurately reflects the true color of human tissues and reduces visual fatigue during long surgeries.
6. What materials are used for the lampshade shell?The shell is made of integrated ABS engineering plastic combined with an embedded aerospace aluminum top cover for superior heat dissipation.
7. Is the operating handle of the SK-LLD7050Z sterilizable?Yes, the central detachable handle is made of PPSU material, supporting high-temperature and high-pressure steam sterilization up to 134℃.
8. What are the color temperature adjustment options?The color temperature ranges from 4000K to 5000K and can be adjusted through 4 levels to optimize visual resolution for different tissue types.
9. What is the illumination depth of the SK-LLD7050Z?The lamp offers an excellent illumination depth of ≥120cm, ensuring consistent light even in deep surgical cavities.
10. How energy-efficient are the OSRAM LEDs in this lamp?LED energy consumption is only 1/10 of ordinary incandescent lamps and 1/2 of halogen lamps under the same brightness levels.
11. What type of controller is used for brightness adjustment?The system is equipped with a 4.3-inch controller that allows for precise 9-level brightness adjustment and monitoring.
12. Can the SK-LLD7050Z be installed in rooms with low ceilings?While the standard installation height is 2800-3200mm, a customized edition for floor heights as low as 2.5m is optionally available.
