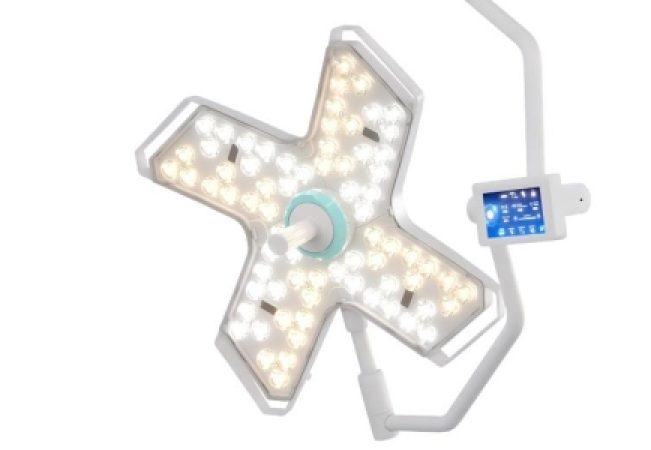

AInno Light 20 Shadowless LED Operating Light with Touch Screen
LIGHTING MODE
 |  |  |

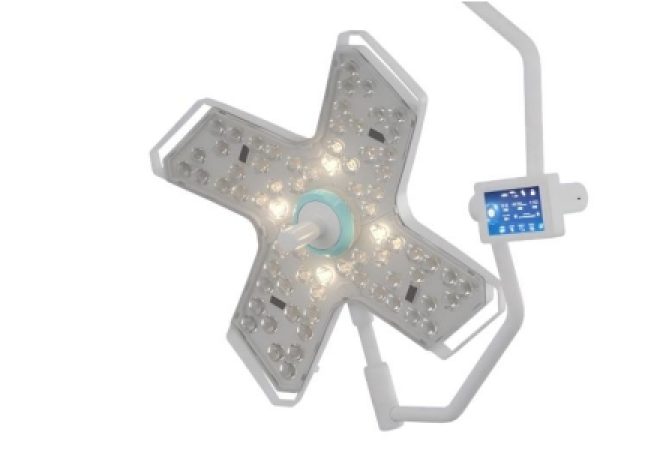

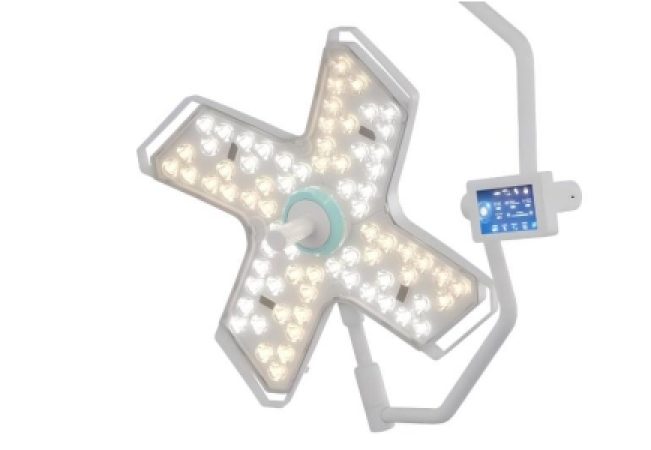

STANDARD | ENDOSCOPIC | LOW-LIGHT |
Hights
Everything has been designed to enable the medical team to focus exclusively on the surgical operation thanks to the perfect shadow dilution. A large number of individual divergent light beams create a complete light patch, ensuring that the light field will remain circular and shadow-free. AInno Light20 provides the best illumination, even when surgeons are blocking the LEDs.
SHAPING DESIGNED
The head of the lamp is windmill-shaped, Saikang’s unique (appearance patent) design. The back is equipped with a soft ambient light. The top offers a soft ambient light, simple and stylish while also being useful for low-light surgery (laparoscopic). Exceeding the infection control standards of modern operating rooms.
SPRING ARM
The standard spring arm is domestically manufactured, offering stable performance with an upward and downward folding angle of ≥ +45º / -45º. An imported spring arm of the Ondal brand is optionally available. The load capacity can reach 21/40 kg, with an upward and downward displacement of 1288 mm and an angle range of -70° / +45°.
Operating handle
PPSU ≤134℃ ≤205.8kPa

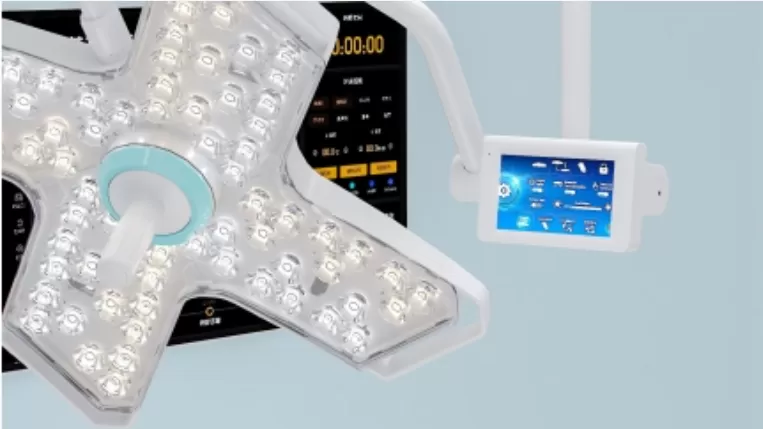

5-INCH EXTRA-LARGE LCD TOUCH SCREEN
It is equipped with a 5-inch extra-large LCD touch screen and ultra-simple operation interface design. ±30° display angle adjustment for different user heights. Seamless design for easy disinfection.
STERILE CONTROL
Integrate the most commonly used adjustment functions into the sterile handle to improve surgical efficiency. It can adjust the color temperature, illuminance, and the size of the light spot, and also adjust the brightness of the soft ambient light.
INTELLIGENT SHADOW MANAGEMENT
Sensors are installed in various parts inside the lamp head. When it detects that a certain part is blocked, the remaining lamp beads can gradually and actively supplement the light to ensure the illumination of the surgical field.
Color temperature&illumination
Parameters & Configuration
| Model | AInno Light20 |
| 5-inch full-screen touch controller; | ●√ |
| Electronic focusing component; | ●√ |
| Red light compensation; | ●√ |
| Green light compensation; | ●√ |
| Three lighting modes: standard, endoscopic, and low-light; | ●√ |
| Shadow compensation | ●√ |
| Central illuminance（Ec） | 40000-160000 lx (10 levels) |
| Spot diameter (d10) | 200-300mm (5 levels) |
| Spot distribution (d50/d10) | 55% |
| Depth of the light column (60% of Ec) | 700mm |
| Color temperature (Tc) | 3500-5500K (11 levels) |
| Colour rendering index（Ra） | 98 |
| Maximum total irradiance (Ee) | ≤550 W/m² |
| Radiant energy (Ee/Ec) | ≤3.5mW/(m².lx) |
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQs:
1. What is the maximum central illuminance of the AInno Light 20?The AInno Light 20 provides powerful illumination of up to 160,000 Lux, adjustable across 10 distinct levels to suit various surgical needs.
2. How does the Intelligent Shadow Management system work?Built-in sensors detect blockages; when a surgeon's head or arm blocks an LED, the remaining beads actively supplement light to ensure a shadow-free surgical field.
3. What are the color temperature options for this operation lamp?The lamp offers an 11-level adjustable color temperature range from 3500K to 5500K, ensuring realistic tissue rendering.
4. What is unique about the AInno Light 20's design?It features a patented windmill-shaped head designed for optimal infection control and a soft ambient light on top for laparoscopic surgery.
5. Does the lamp offer specialized lighting modes?Yes, it includes three specialized lighting modes: Standard, Endoscopic, and Low-light (ambient), catering to different surgical environments.
6. How can medical staff adjust the light during sterile procedures?The sterile handle integrates functions to adjust color temperature, illuminance, light spot size, and soft ambient brightness without breaking the sterile field.
7. What are the control features of the 5-inch LCD touch screen?The 5-inch screen offers an ultra-simple interface with ±30° display angle adjustment, supporting electronic focusing and shadow compensation.
8. What is the Color Rendering Index (Ra) of the AInno Light 20?The lamp boasts a high Colour Rendering Index (Ra) of 98, providing exceptional color accuracy for differentiating between various tissues.
9. Can the spring arm be customized for different load capacities?The standard spring arm is stable, but an optional imported Ondal brand arm is available, supporting loads of up to 21/40 kg.
10. What are the sterilization standards for the operating handle?The PPSU handle is designed for high-standard infection control, supporting sterilization at ≤134℃ and ≤205.8kPa.
11. How deep is the light column of the AInno Light 20?The lamp provides a light column depth of 700mm (at 60% of Ec), ensuring consistent illumination in deep surgical cavities.
12. Does the lamp include color compensation for specific surgeries?Yes, the system includes both Red light and Green light compensation components to enhance visualization during complex procedures.
