Electric Double-Arm Pendant AInno L21 180kg Load Surgical Tower
Highlights
INSTRUMENT PLATFORM
The all-aluminum alloy panel is formed in one piece, with high strength, easy to disinfect and clean, and no risk of rust; the table top adopts recessed anti-slip design to ensure that the instruments are placed smoothly and safely; platform size: 530×500mm, adjustable, and load-bearing ≥80KG

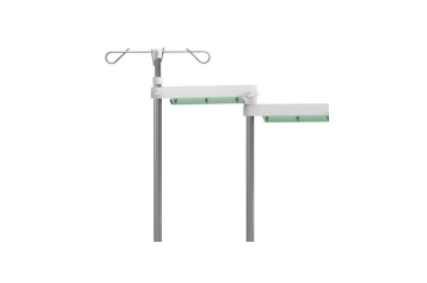

TELESCOPIC EXTENSION ARMS
There are two sections of telescopic extension arms, which can be used with infusion rods and infusion pump stands, and can be flexibly adjusted to meet diversified needs and optimize the use of space. Maximum load capacity of extension arm: 30kg Maximum weight of infusion pole: 10kg Maximum load capacity of infusion pump stand: 20kg
DRAWER
Silent self-priming slide rails remain smooth after 10,000 push-pull tests, can bear 30kg. Optional sensor drawer light, more convenient to use.
CABLE MANAGEMENT
The side of the box features an internal power supply for both strong and weak electricity, allowing for convenient access to power. The hub allows for excess cable storage, reflecting 6S site management principles for a neat and organized setup.
OPTIONAL
 |  |
Stainless steel baske | Suction tube box |
 |  |
| Drawer divider box | Computer keyboard drawer |
 |  |
| Flashlight + flashlight placement box | Stethoscope + stethoscope holder |
Technical parameters
| Model | AInno L21 |
| Operating power supply | AC220V, 50Hz |
| Input power | 6KVA |
| Horizontal box length | 1000mm |
| Hanging arm Rotation angle | 340° |
| Box Rotation angle | 340° |
| Hanging tower load-bearing capacity | 180kg |
| Instrument platform load-bearing capacity | 80kg |
| Height adjustment | 450mm |
| Protection class | IP20 |
| Fire protection class | UL94-V1 |
| Functional columns | 1 pc |
| Rotary hanging arm | 2 pcs |
| Damping brake system | 1 set |
| Medical gas (O2) | 1 pc |
| Medical gas (Suction) | 1 pc |
| Medical gas (AIR) | 1 pc |
| Instrument platform | 2 layers |
| Power outlets (220V/10A) | 6 pcs |
| Equipotential terminals | 4 pcs |
| Drawers | 1 pc |
| Extension arm | 1 set |
| Infusion stand | 1 set |
| Infusion pump stand | 1 pc |
| Boom hub | 1 pc |
OPTIONAL ACCESSORIES
| 1. Basket – stainless steel basket1. |
| 2.Medical gas outlets: British standard, American standard, German standard, French standard, Japanese standard, etc. |
| 3. Different standards for medical gas outlets and adapters: British standard, French standard, German standard, Diss, Ohmeda, Chemetron, etc. |
| 4. Inhaler – various oxygen inhalers (disposable, simple, external, etc.) |
| 5. Negative pressure regulating valve |
| 6. Waste liquid collection device (external) |
| 7. Suction tube box; |
| 8. Drawer divider boxes; |
| 9. Lighting systems; |
| 10. Computer keyboard drawer; |
| 11. Monitor stands + monitors; |
| 12. Flashlight + flashlight placement box; |
| 13. Stethoscope + stethoscope holder. |
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQs:
1. What is the total load-bearing capacity of the AInno L21 pendant?
The hanging tower has a robust total load capacity of 180kg, while the individual instrument platforms can support ≥80kg each.
How do the telescopic extension arms enhance surgical efficiency?
The two-section telescopic arms support infusion poles (10kg) and pump stands (20kg), allowing for flexible space optimization and equipment positioning.
Does the AInno L21 support international medical gas standards?
Yes, we provide optional gas outlets and adapters for British, American, German, French, Japanese, and other international standards (DISS, Ohmeda, Chemetron, etc.).
What are the rotation capabilities of the arms and the functional box?
Both the dual rotary hanging arms and the functional box feature a wide 340° rotation angle for maximum reach within the operating room.
How does the AInno L21 manage medical cables and wires?
It features a specialized boom hub for excess cable storage and internal power supply routing, following 6S site management principles for a neat setup.
What material is used for the instrument platform?
The platform uses a one-piece formed aluminum alloy panel, which is high-strength, anti-rust, and designed with a recessed anti-slip surface.
Is the height of the pendant adjustable?
Yes, the AInno L21 is an electric model featuring a 450mm height adjustment range to suit different surgical requirements.
What are the durability specs for the integrated drawers?
The drawers use silent self-priming slide rails that remain smooth after 10,000 push-pull tests and can bear up to 30kg.
What safety and fire protection ratings does the equipment have?
The pendant meets the IP20 protection class and the UL94-V1 fire protection class, ensuring high safety standards in clinical environments.
Can the AInno L21 be customized with additional accessories?
Yes, optional accessories include computer keyboard drawers, monitor stands, stethoscope holders, flashlight boxes, and drawer divider boxes.
What kind of braking system is used for positioning?
The unit is equipped with a high-performance damping brake system to ensure stable and precise positioning during medical procedures.
What is the power configuration for the functional column?
The standard configuration includes six 220V/10A power outlets and four equipotential terminals for comprehensive equipment support.
