AInno Light 10 LED Shadowless Lamp | 160,000 Lux Surgical Light
Features and Highlights

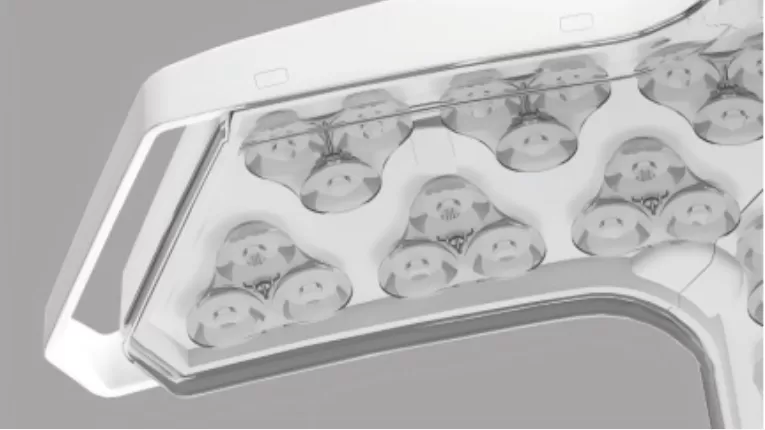

Design
Innovative windmill design with back decorative lights. One-piece integrated handle. Screw-free design for easy cleaning, no dirt accumulation.

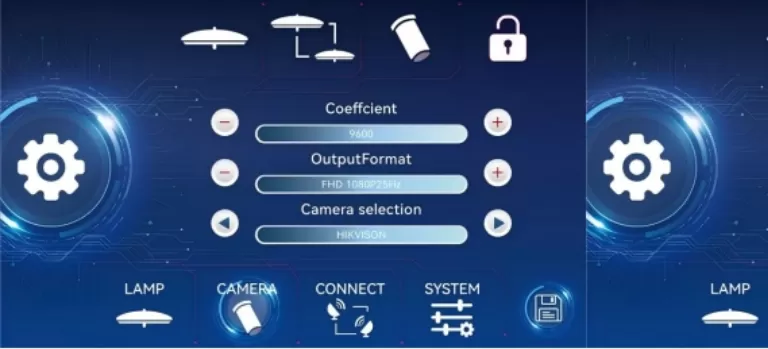

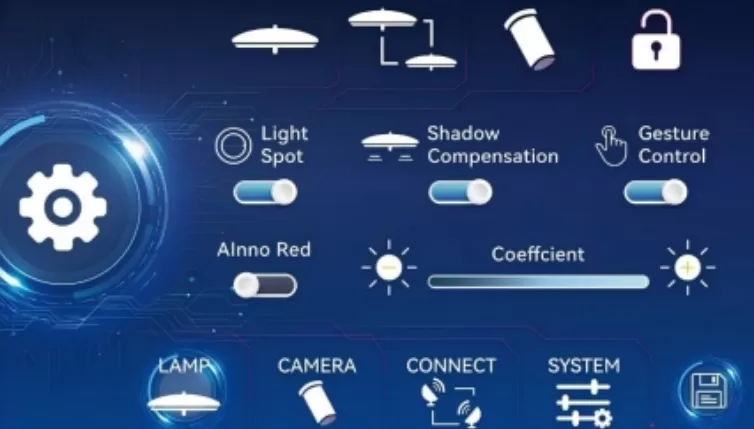

UI
Simple User Interface Design. Available in Chinese/English.
Multi-Patch Superposition Technology
Multi-Patch Superposition Technology, ensuring spot uniformity.
Intelligent shadow management
Intelligent shadow management, dual light head linkage, uniform supplementary lighting.
Color Temperature
The color temperature can be adjusted in multiple levels to achieve excellent tissue color rendering effects. High color temperature enhances tissue visual resolution; low color temperature helps alleviate visual fatigue caused by long surgeries.

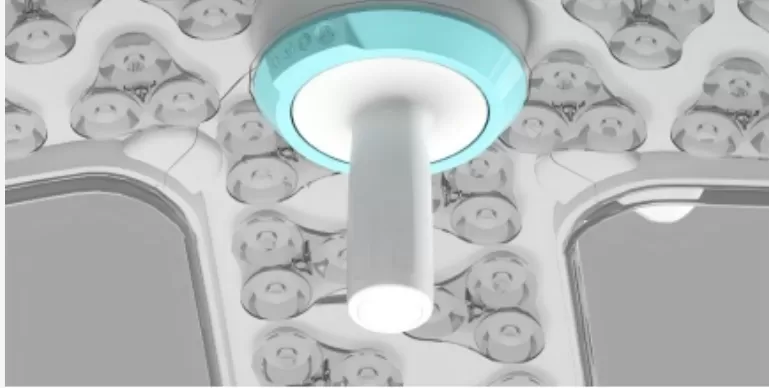

Multifunctional sterilized handle
Adopts a contactless sensor design, integrating the most commonly used functions of light spot adjustment and brightness adjustment into the handle, improving surgical efficiency.
Centralized camera
Centralized camera can be quickly shared between different operating rooms.

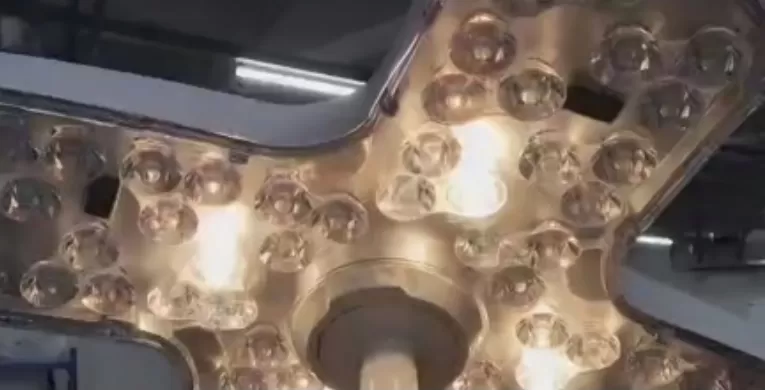

Bulb
Parameters & Configuration
| Central illuminance（Ec） | 160000 lx (10 levels) |
| Light field diameter（d10） | 200-300mm (5 levels) |
| Light field d50/d10 | 50% |
| Depth of illumination（20%） | 1200mm |
| Depth of illumination（60%） | 800mm |
| Color Temperature（Tc） | 4000-5500K (9 levels) |
| Color Rendering Index（Ra） | ＞90 |
| Special Color Rendering Index (R9) | ＞95 |
| Maximum Total Irradiance （Ee） | ＜500 W/m² |
| Ee/Ec | ≤3.5 mW/（m².lx) |
| Shadow dilution with tube | 100% |
| Shadow dilution with one mask | 65% |
| Shadow dilution with tube and one mask | 55% |
| Shadow dilution with two masks | 65% |
| Shadow dilution with tube and two masks | 55% |
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQs:
1. What is the maximum central illuminance of the AInno Light 10?
The AInno Light 10 provides high-intensity surgical lighting with a central illuminance of up to 160,000 Lux, adjustable across 10 levels.
2. How does the Intelligent Shadow Management system function?
The system uses dual light head linkage to provide uniform supplementary lighting, ensuring the surgical field remains clear even when partially blocked.
3. What brand of LED bulbs are used in the AInno Light 10?
We select premium imported LED bulbs from the world-renowned German brand, OSRAM, for superior reliability and performance.
4. What is unique about the multifunctional sterilized handle?
The handle features an innovative contactless sensor design, allowing surgeons to adjust light spots and brightness without touching the handle, improving efficiency.
5. What is the Color Rendering Index (Ra) and R9 value?
The lamp offers exceptional color accuracy with a Color Rendering Index (Ra) >90 and a Special Color Rendering Index (R9) >95 for realistic tissue visualization.
6. Can the color temperature be adjusted for different surgeries?
Yes, the color temperature is adjustable from 4000K to 5500K across 9 levels, helping to enhance resolution or alleviate visual fatigue.
7. What is the "Multi-Patch Superposition Technology"?
This innovative technology ensures excellent spot uniformity by overlapping multiple light patches into a single, consistent surgical field.
8. Does the AInno Light 10 support surgical video sharing?
Yes, it features a centralized camera system that can be quickly shared between different operating rooms for consultation or teaching.
9. How deep is the illumination provided by this lamp?
The AInno Light 10 offers a significant depth of illumination, reaching 1200mm (at 20% Ec) and 800mm (at 60% Ec).
10. Is the lamp head easy to clean and maintain?
The design is screw-free and features a one-piece integrated handle, which prevents dirt accumulation and makes disinfection simple and fast.
11. What is the shadow dilution performance with masks?
The lamp maintains high performance even when obstructed, with shadow dilution reaching 65% with one mask and 55% when combined with a tube.
12. Does the user interface support multiple languages?
Yes, the simple and intuitive User Interface (UI) is available in both Chinese and English to accommodate international medical teams.
