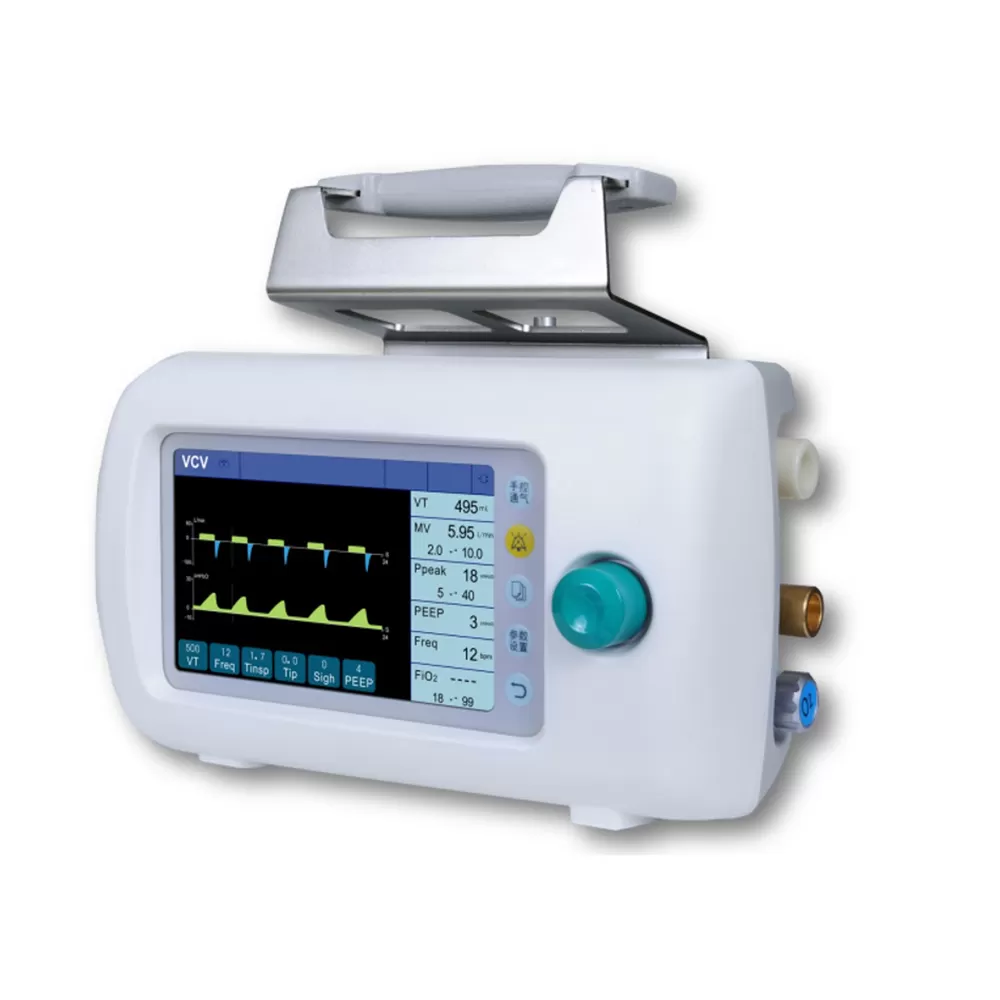

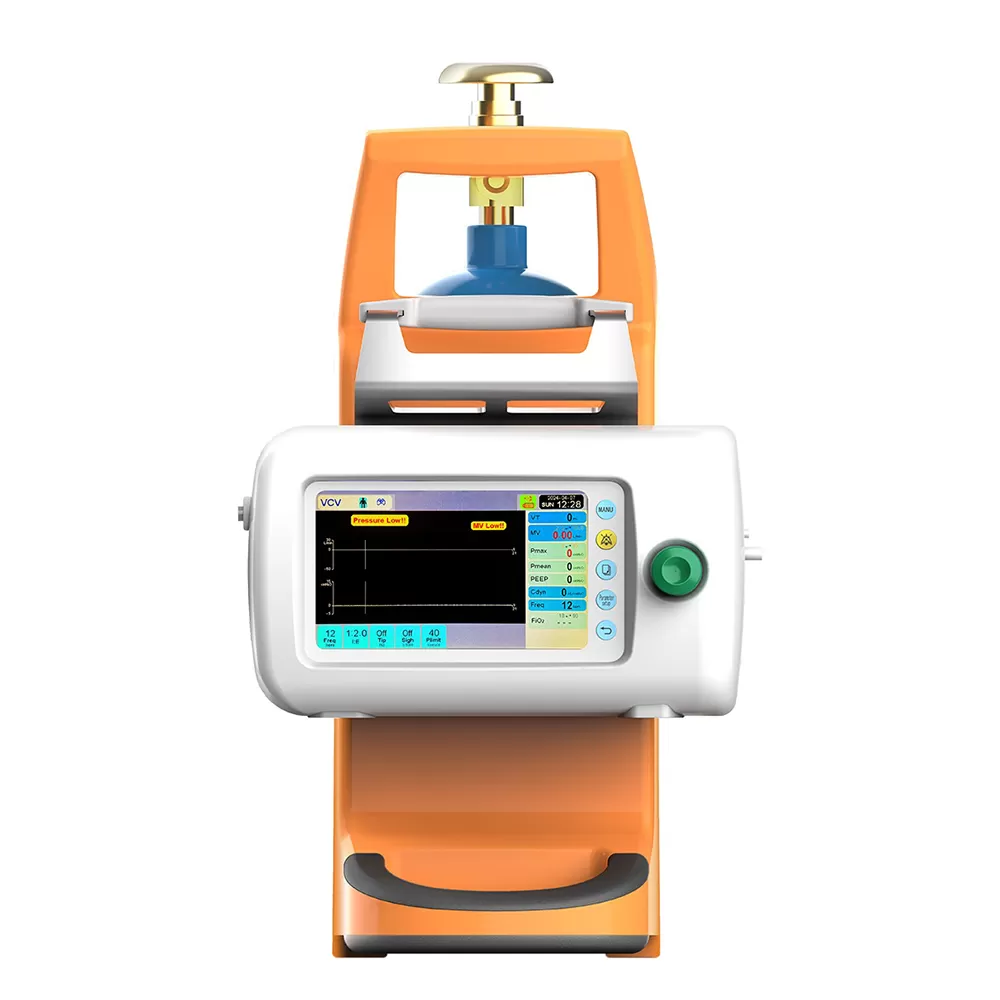

Portable Emergency Transport Ventilator CWH-2020 for Hospital
Compact Design · Powerful Support
 |  |  |
| Rugged, lightweight (<4kg), with 6+ hours of battery for reliable emergency use. | Advanced monitoring and alarms for both patient safety and device status. | Versatile for all patients (child to adult) with multiple professional ventilation modes. |
 |  |  |

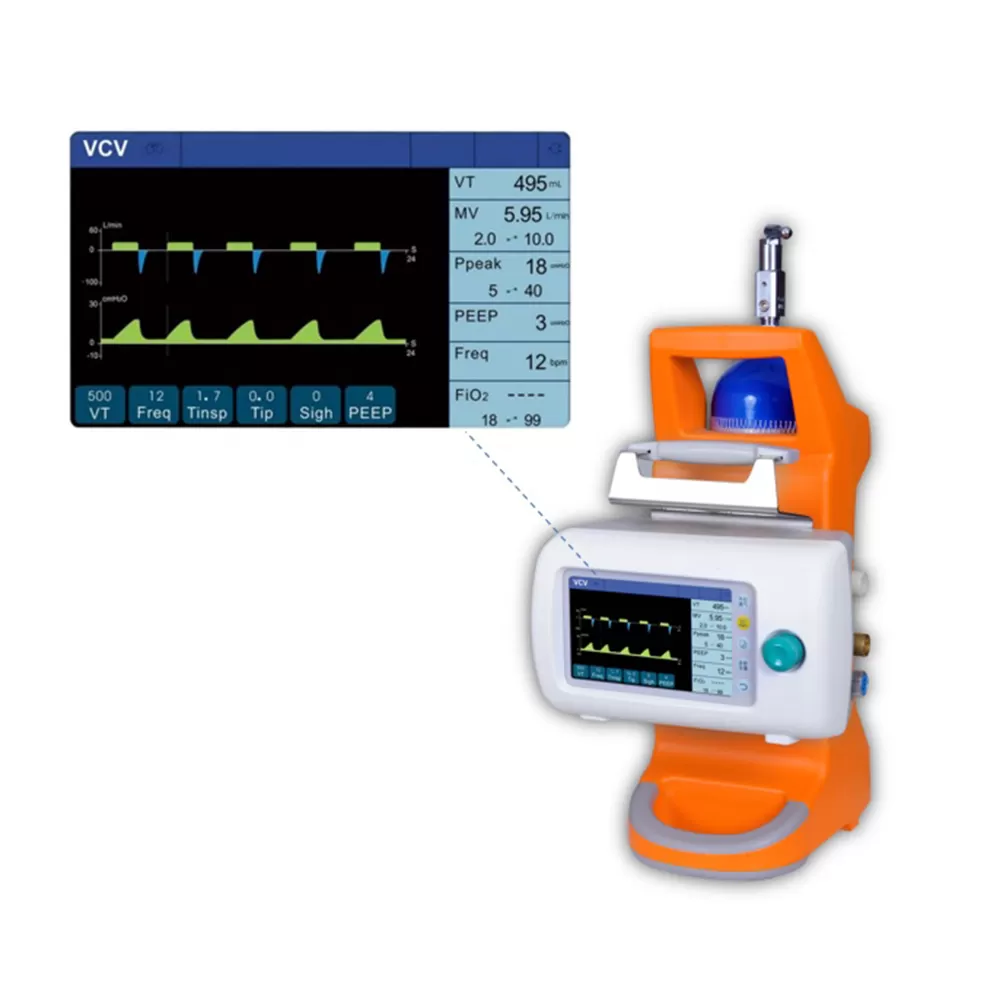

| Intuitive one-step controls for quick and easy operation. | Flexible mounting on transport beds, stretchers, or standalone use. | Rotatable display for clear data viewing in any position. |
| Safety | Accurate Deliver | Convenience & Easy Control |

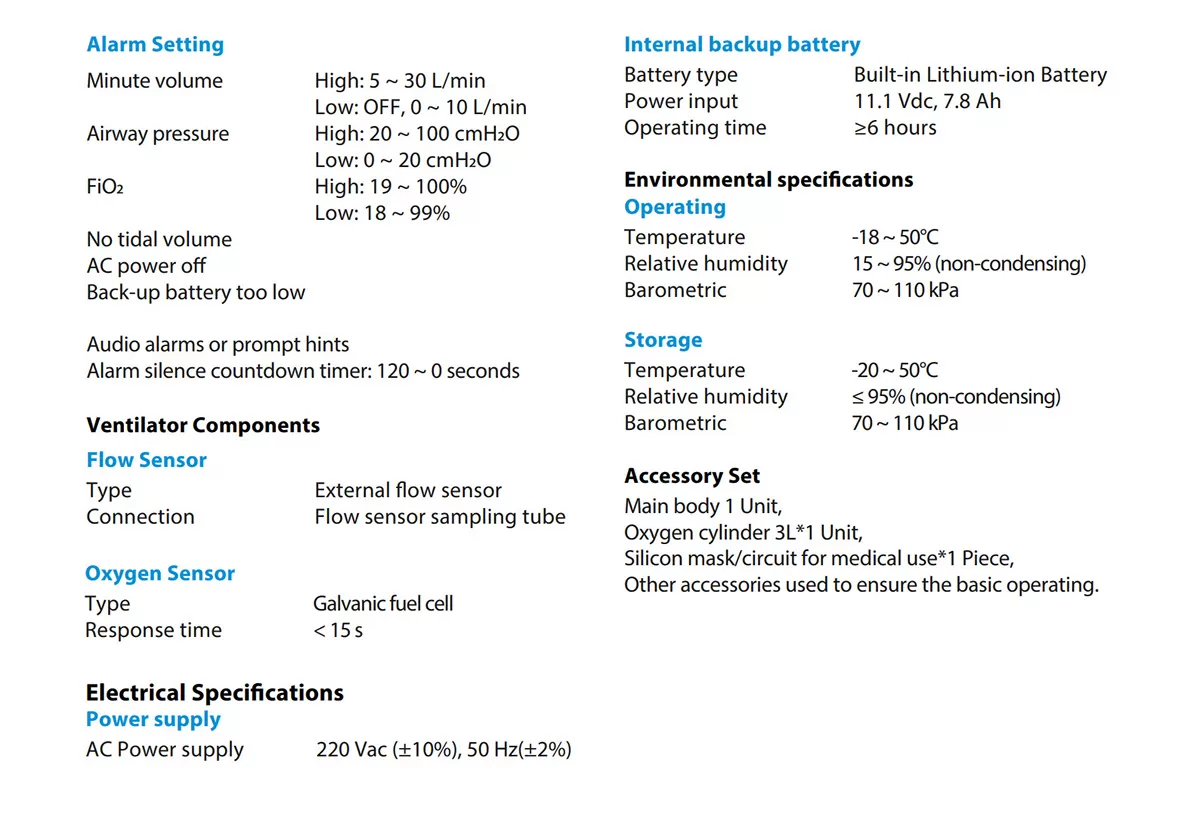

| CWH-2020 used for respiratory depression, respiratory paralysis and failure of emergency rescue. Advanced monitoring and alarm systems for patient-related parameters (e.g. pressure and flow) and ventilator function (e.g. air leakage, power failure). Built-in Li-ion battery for recharging and emergency case up to continuous 6 hours. Equipped with air or oxygen tank. Sturdy, encased in a solid housing designed to withstand the shock of being dropped, compressed, or stepped on. | Allow exact adaptation of pressure and flow characteristics to an individual patient's needs. Deliver an oxygen and air mix to a patient, with the concentration of the mix being adjustable. Fine-tuned ventilator settings also serve to make ventilation more tolerable for the patient. | Lightweight 4 kg. All parameters set in one step makes every single process in easy way. Humanized design helps the operator for easy handling. |
| Ambulance Partner | Multiple Functions | |

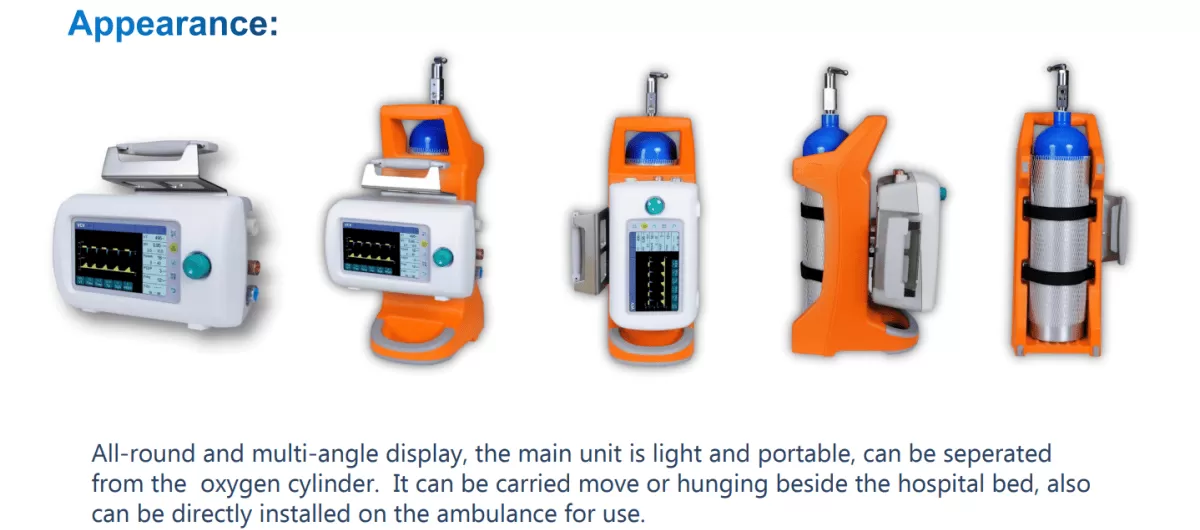

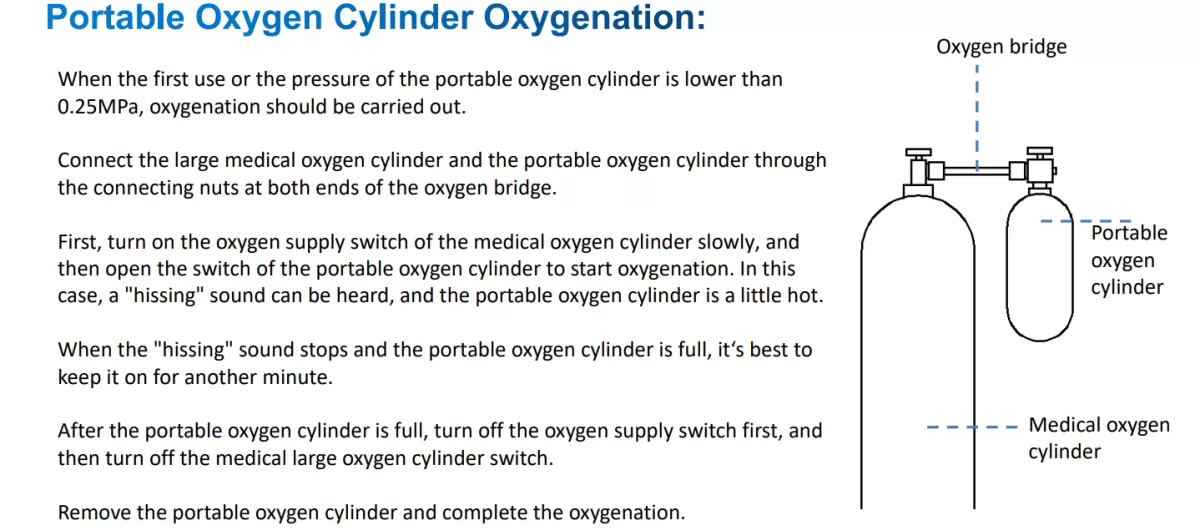

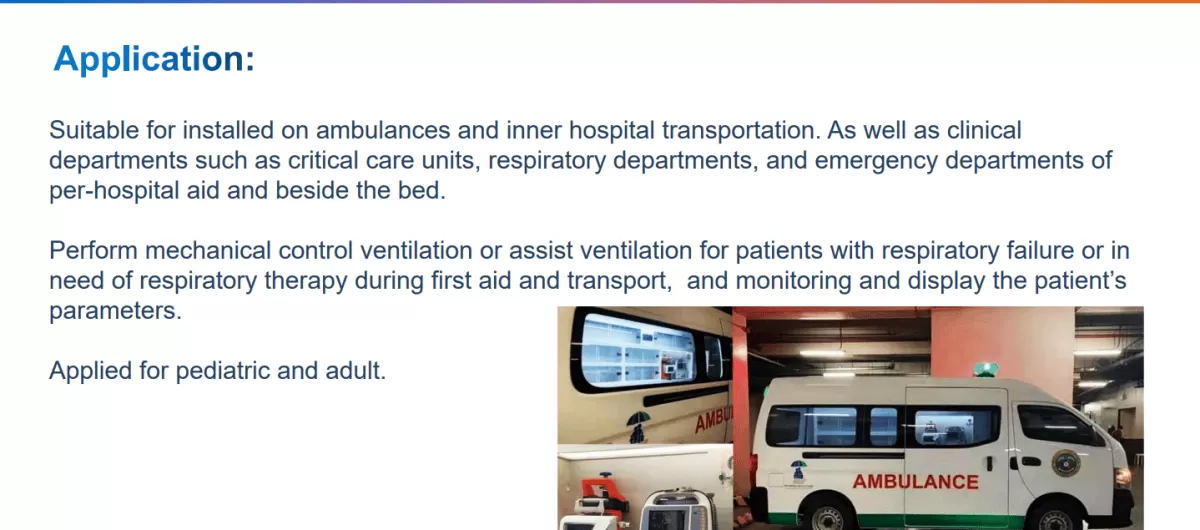

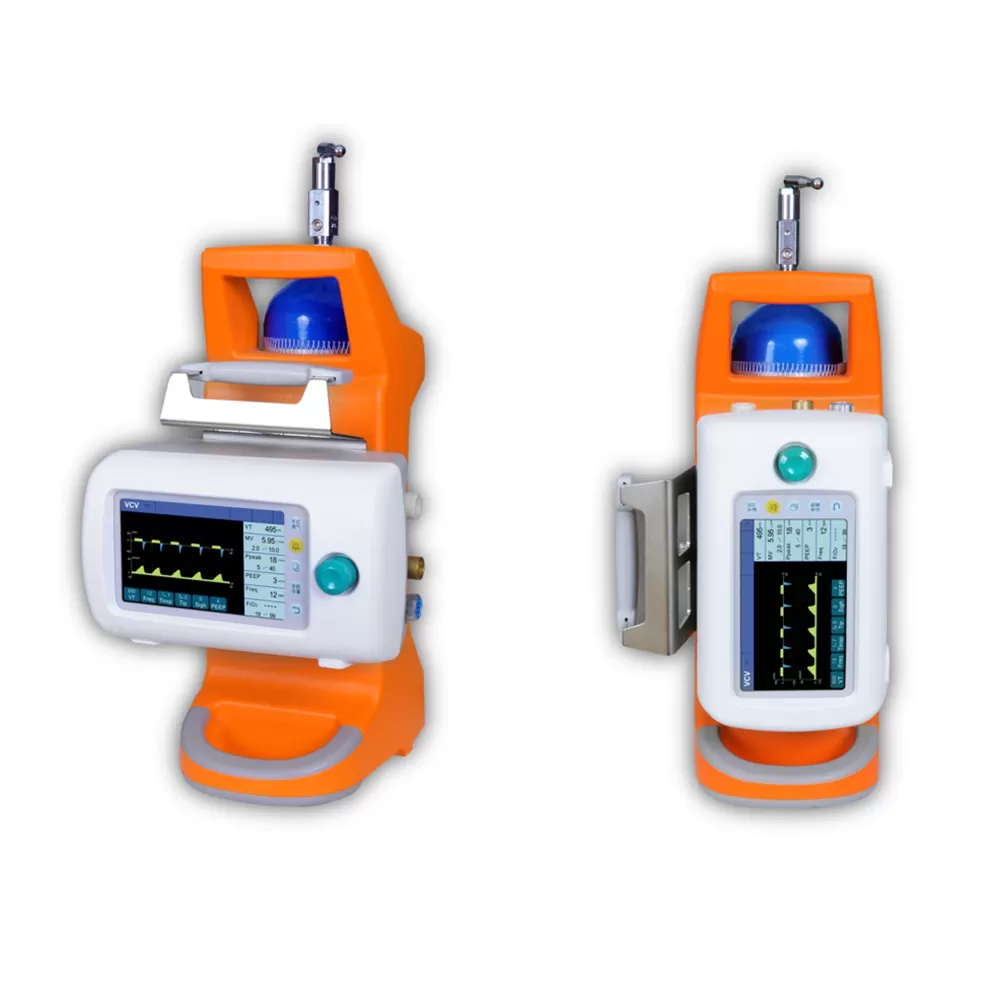

| DC 12V charge, AC 100V-240V. Regulator compatible with on-vehicle cylinder. Oxygen circuit compatible with in-vehicle gas supply system. 3L Oxygen cylinder for Extra use. CWH-2020 also can be equipped on the transport bed, back of chair, stretcher or even to be placed on the ground standalone. | Applied for pediatric and adult. Volume control delivery with multi-function working mode. VCV, SIMV, A/C, SIGH, MANUAL, CPAP, S/T, S, T, PCV*, PSV*. |
imported components, ensuring safer and more stable operation.

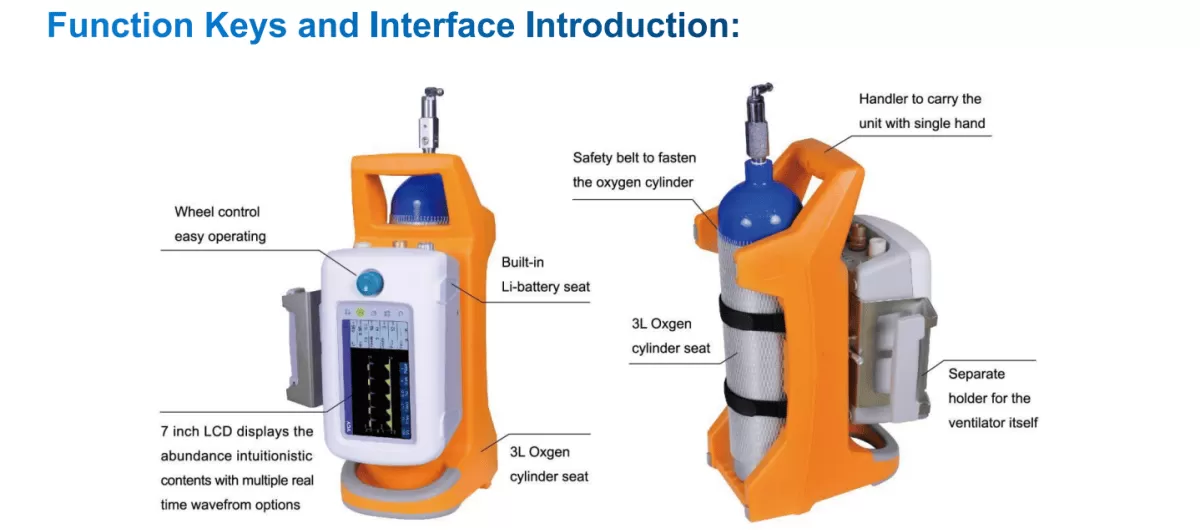

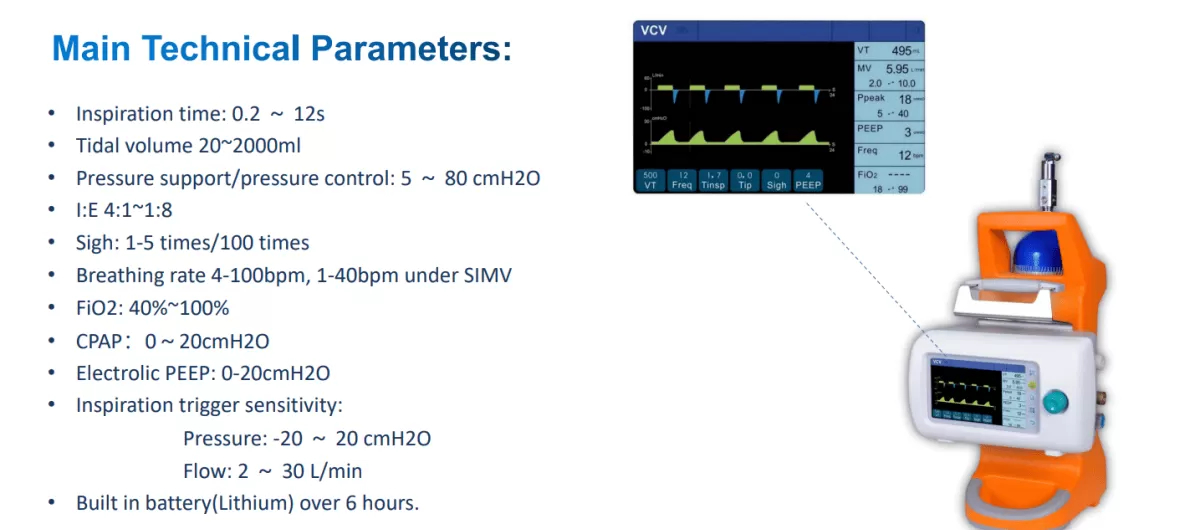

- Display7 inch LCD
- Gas sourceOxygen
- Woking TypeElctronically controlled, pneumatic driven
- ApplicationPediatric and Adult

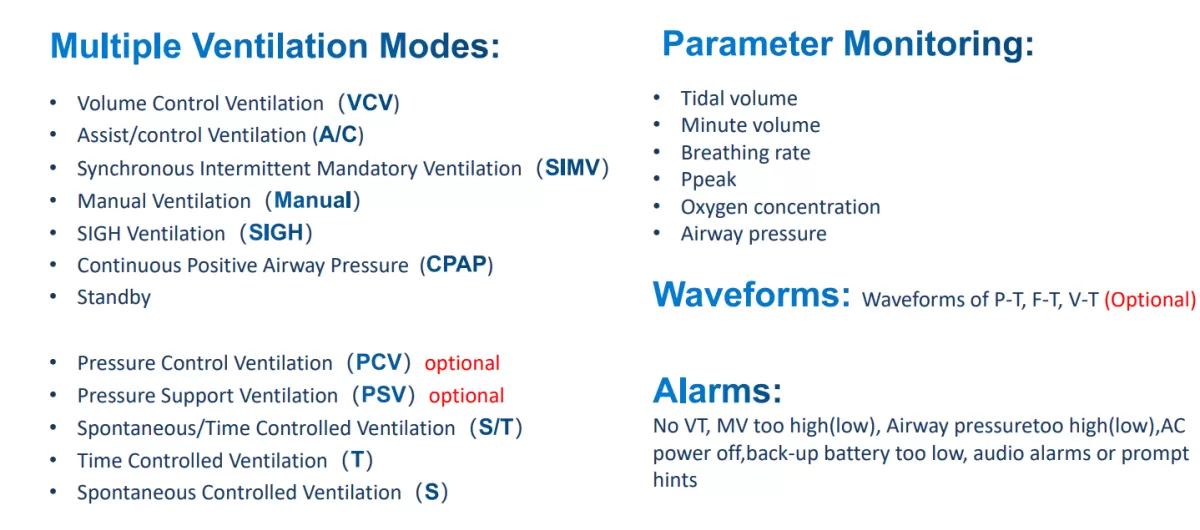

- Ventilation modeVCV, SIMV, A/C, SIGH, MANUAL, CPAP, S/T, S, T, PCV*, PSV*
- Ventilation typeIV (Invasive Ventilation), NIV (Non-invasive Ventilation)
- Tidal volume20 ~ 2000 ml
- I:E ratio4:1 ~ 1:8
- FiO₂40 ~ 100%
- PEEP0 ~ 20 cmH₂O
- Monitoring parametersTidal volume, Minute volume, Frequency, Pmax, Pmean, PEEP, FiO₂

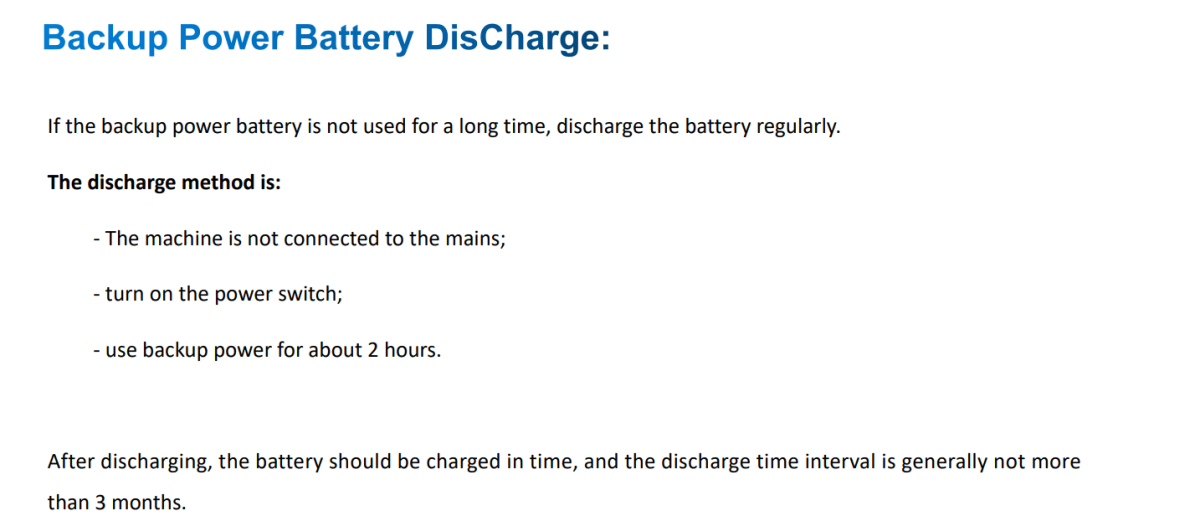

- Battery> 6 hours
- Net weightMain Body< 4 KG
High-performance equipment is a critical component of emergency medical care during the pandemic. Its powerful functionality and high reliability provide crucial medical equipment support as we respond to the impact of the epidemic.
1. Does this ventilator support both invasive and non-invasive therapy?
Yes, it provides both Invasive Ventilation (IV) and Non-invasive Ventilation (NIV) capabilities.
2. What ventilation modes are available for clinical use?
Modes include VCV, SIMV, A/C, SIGH, CPAP, S/T, PCV, and PSV to meet various patient needs.
3. Can I adjust the FiO2 concentration?
Yes, the oxygen concentration (FiO2) is adjustable from 40% to 100% for precise therapy.
4. Does the device support PEEP monitoring?
Yes, the PEEP is adjustable from 0 to 20 $cmH_2O$ and is monitored in real-time.
5. Is there a SIGH mode for long-term ventilation?
Yes, the SIGH function is included to prevent alveolar collapse during prolonged support.
6. What are the core monitoring parameters on the 7" screen?
The screen displays Tidal Volume, Minute Volume, Frequency, Pmax, Pmean, PEEP, and FiO2.
7. How is the human-machine synchronization?
The fine-tuned settings and multiple triggers ensure comfortable ventilation and high synchronization.
8. Can I edit reports or compare waveforms on this screen?
The 7-inch LCD provides clear pressure-time waveforms for real-time diagnostic observation.
9. Does it use imported components for stability?
Yes, the machine is built with high-quality imported components to ensure safe clinical operation.
10. What is the I:E ratio range for this device?
The I:E ratio is highly flexible, ranging from 4:1 to 1:8 to suit different lung conditions.
11. Does the device have a manual backup mode?
Yes, a Manual mode is included for immediate clinician intervention when necessary.
12. Is the screen lockable to prevent accidental changes?
Yes, the interface is designed with safety locks to ensure settings remain secure during use.
13. What is the working type of this ventilator?
It is electronically controlled and pneumatic driven, providing reliable volume control delivery.
14. Can it be used for patients with respiratory paralysis?
Yes, it is designed for emergency rescue in cases of respiratory depression, paralysis, or failure.
15. Is it suitable for use in busy ER departments?
Yes, its compact design and fast one-step setup make it ideal for high-traffic emergency rooms.
