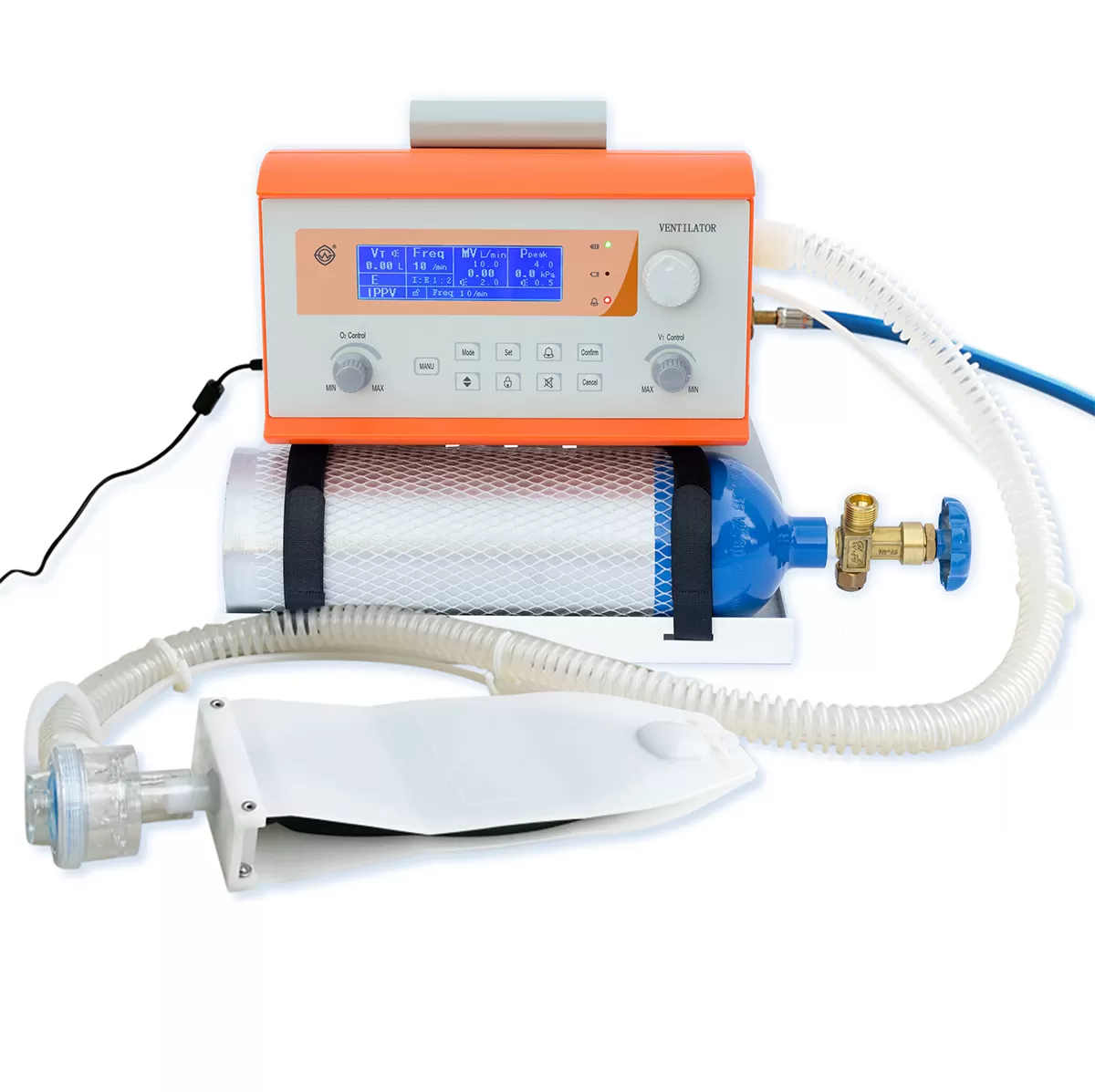

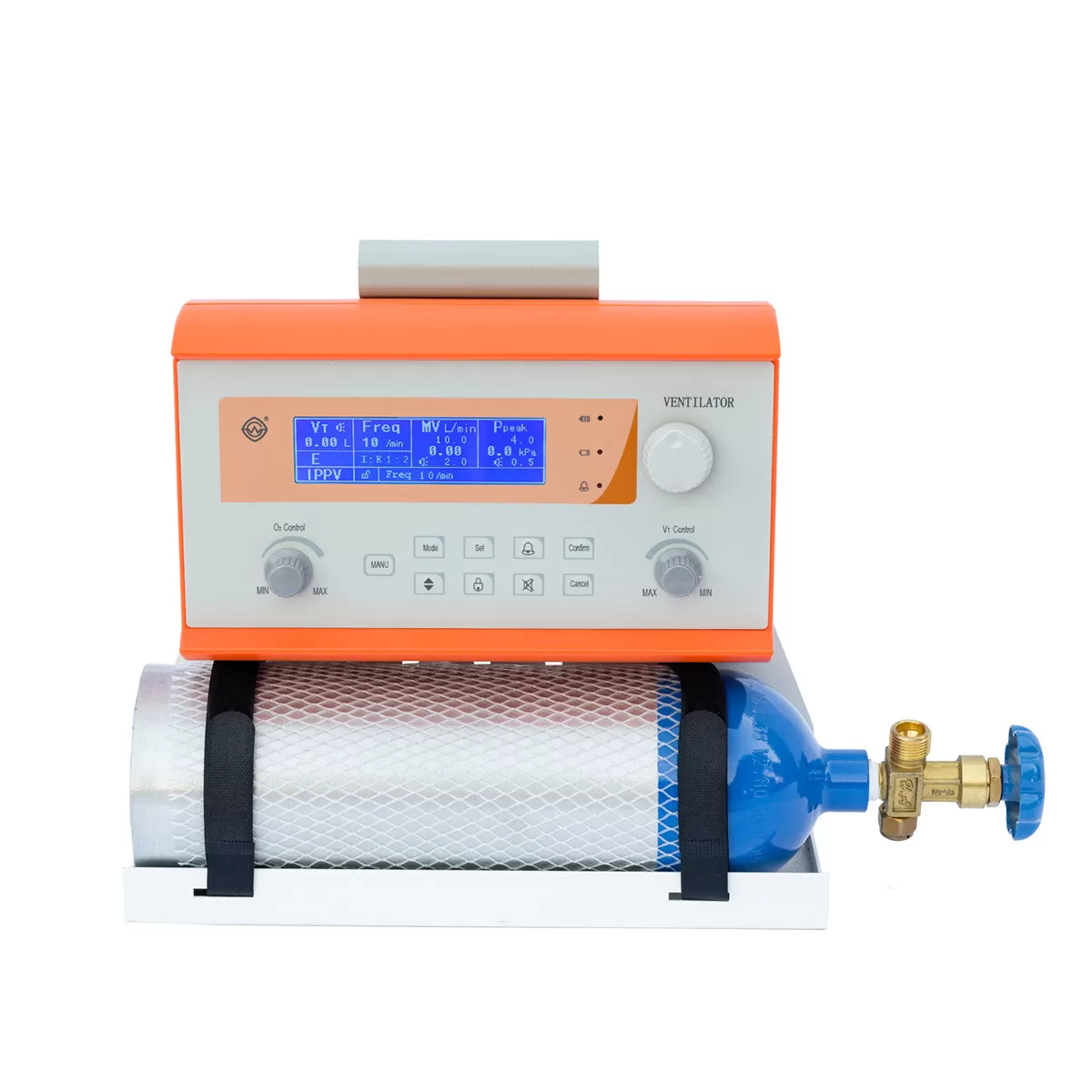

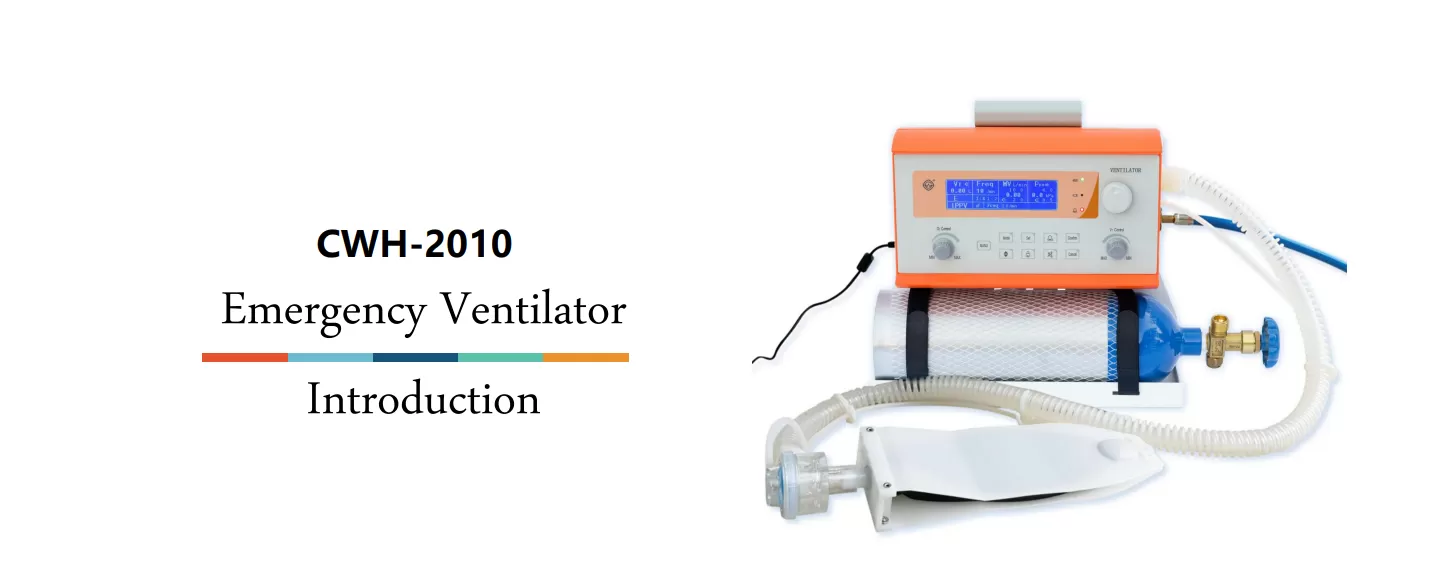

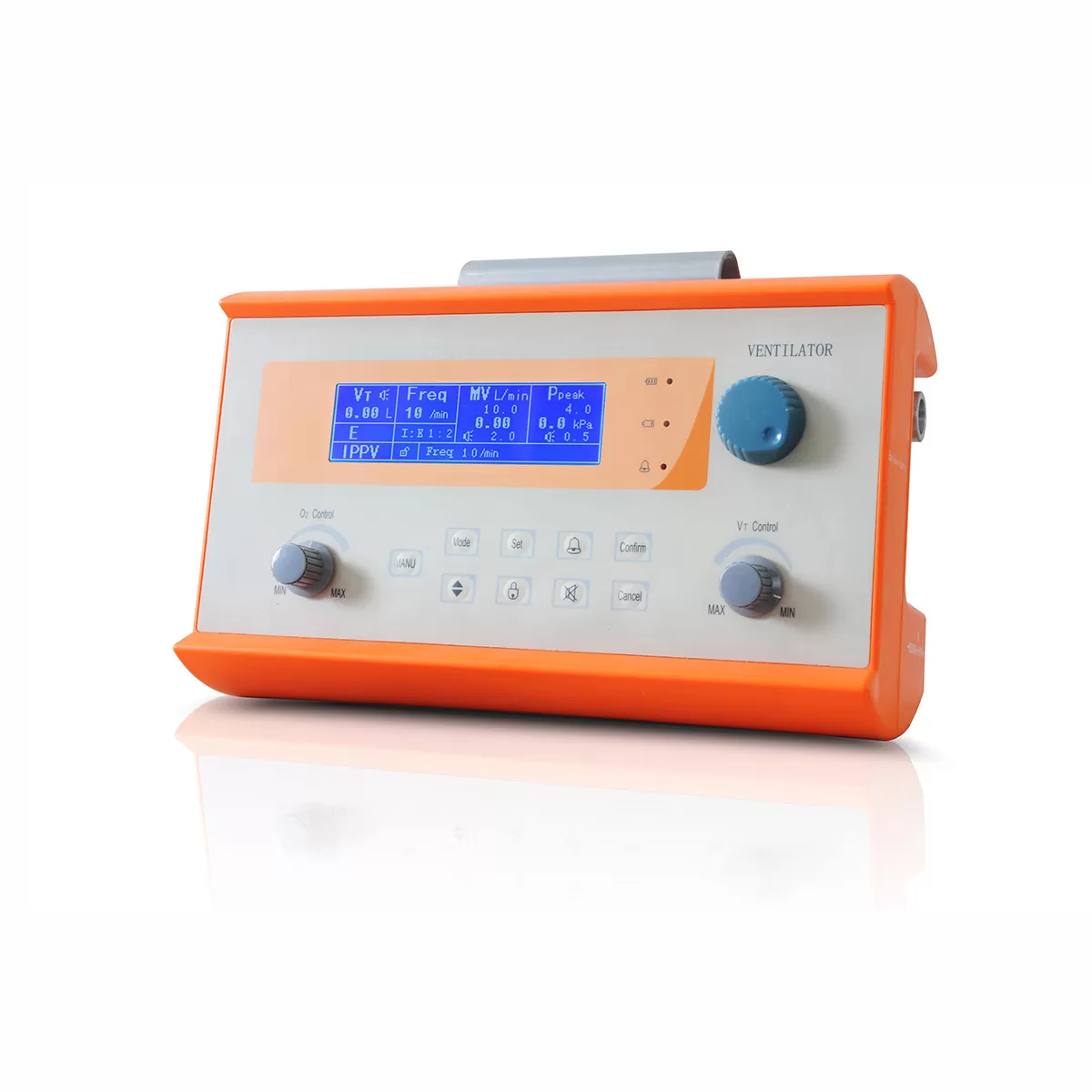

Emergency Transport Ventilator CWH-2010
Compact Design · Powerful Support
 |  |  |

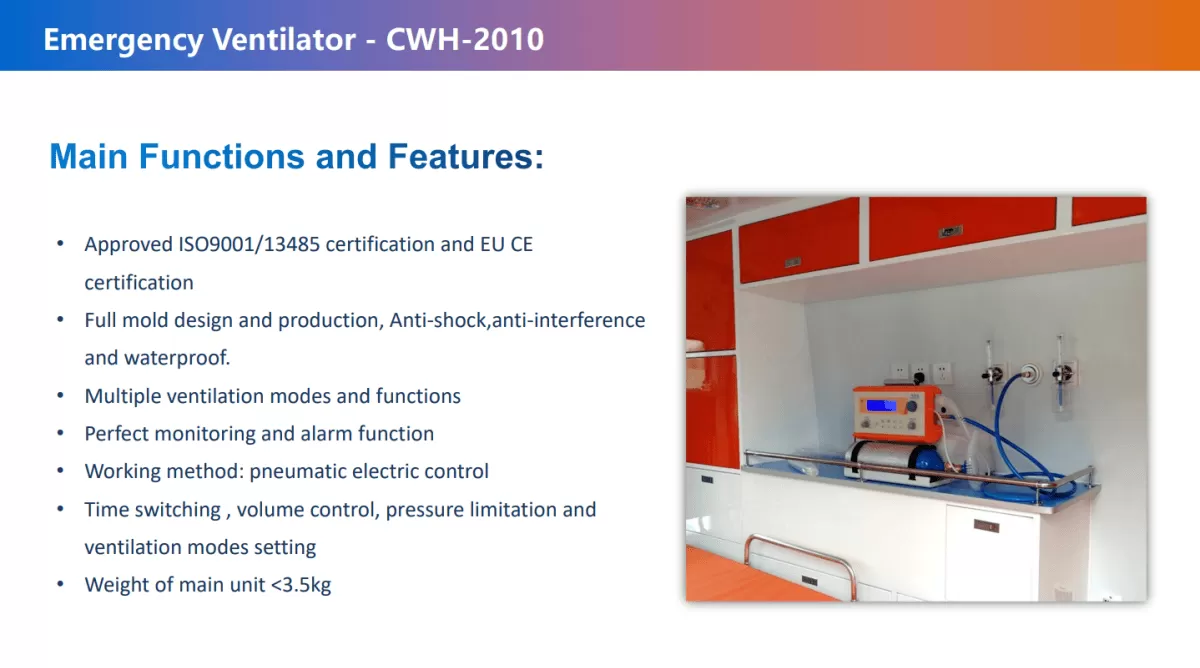

Pneumatic driven, Electronic control. | Advanced monitoring and alarm systems for patient-related parameters. | Intelligence operating system. |
 |  |  |

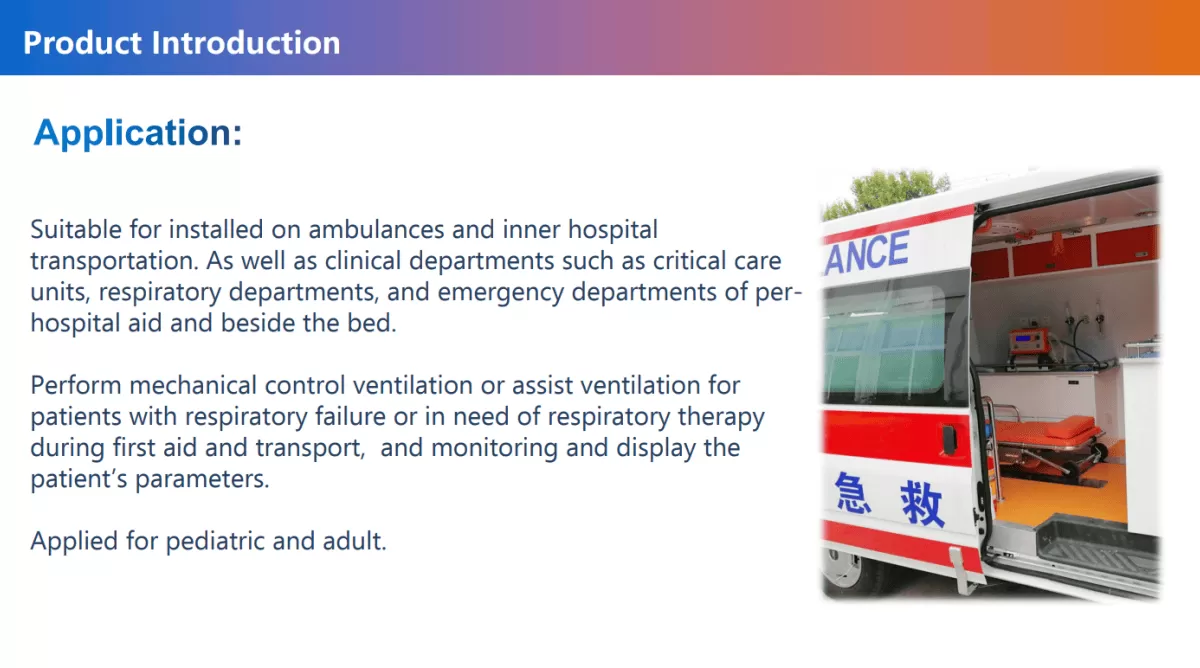

| Easy to carry. | Anti-shock, anti-interference and waterproof. | Can be used in emergency department, transport, outdoor aid, per-hospital aid and beside the bed. |
| Multiple Ventilation Modes and Functions, Easy Operation | Comprehensive Monitoring and Alarm System |
| Multiple ventilation modes: IPPV, A/C, SIMV, SIGH, Manual, etc. Parameters can be quickly set, easy to operate. One-touch screen lock function to prevent accidental operation and ensure safe operation of the ventilator. | Monitors various parameters: tidal volume, ventilation volume, frequency, peak pressure, etc. Multiple alarm functions including audible alerts and text prompts. |
imported components, ensuring safer and more stable operation.

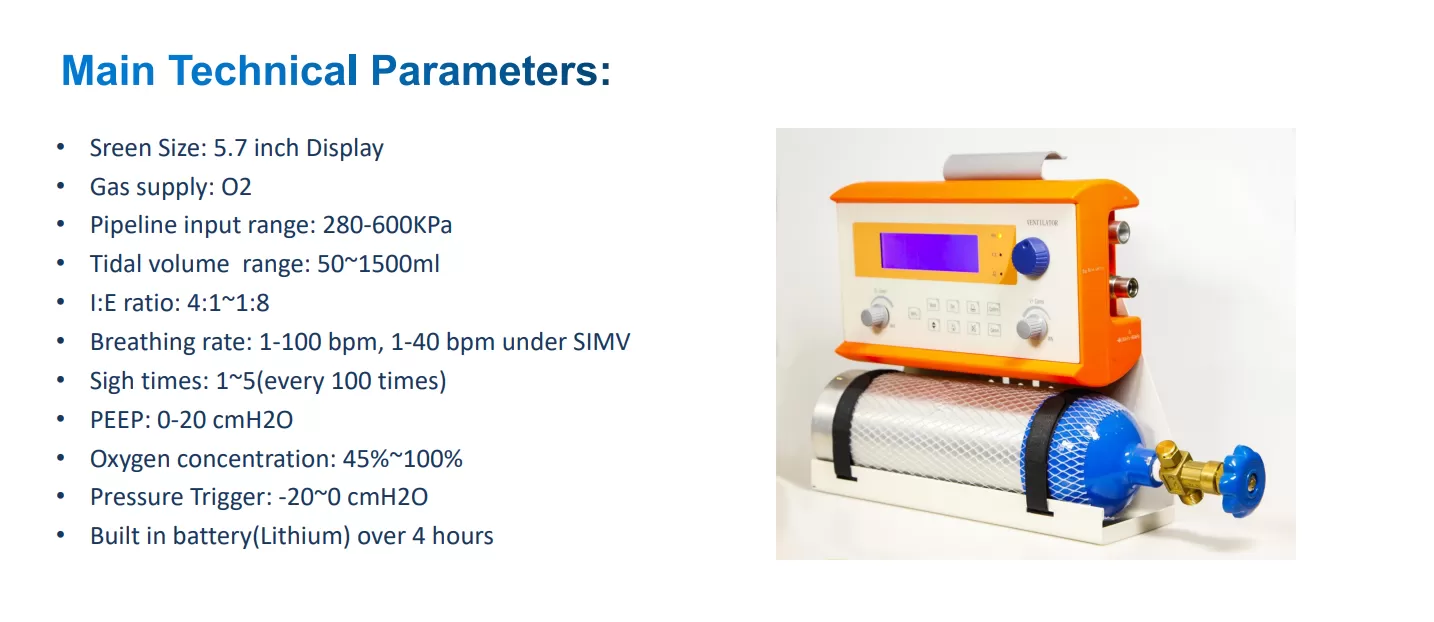

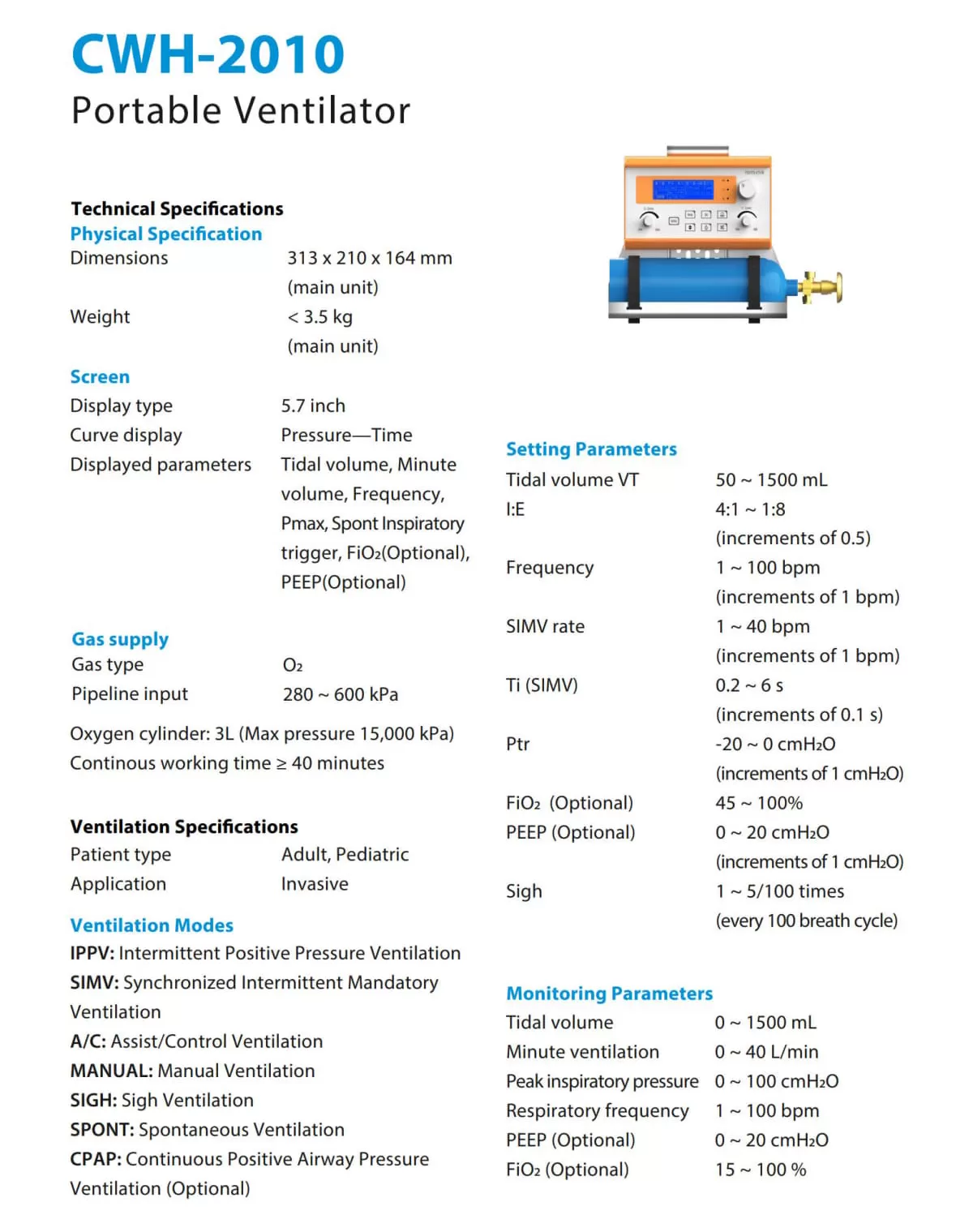

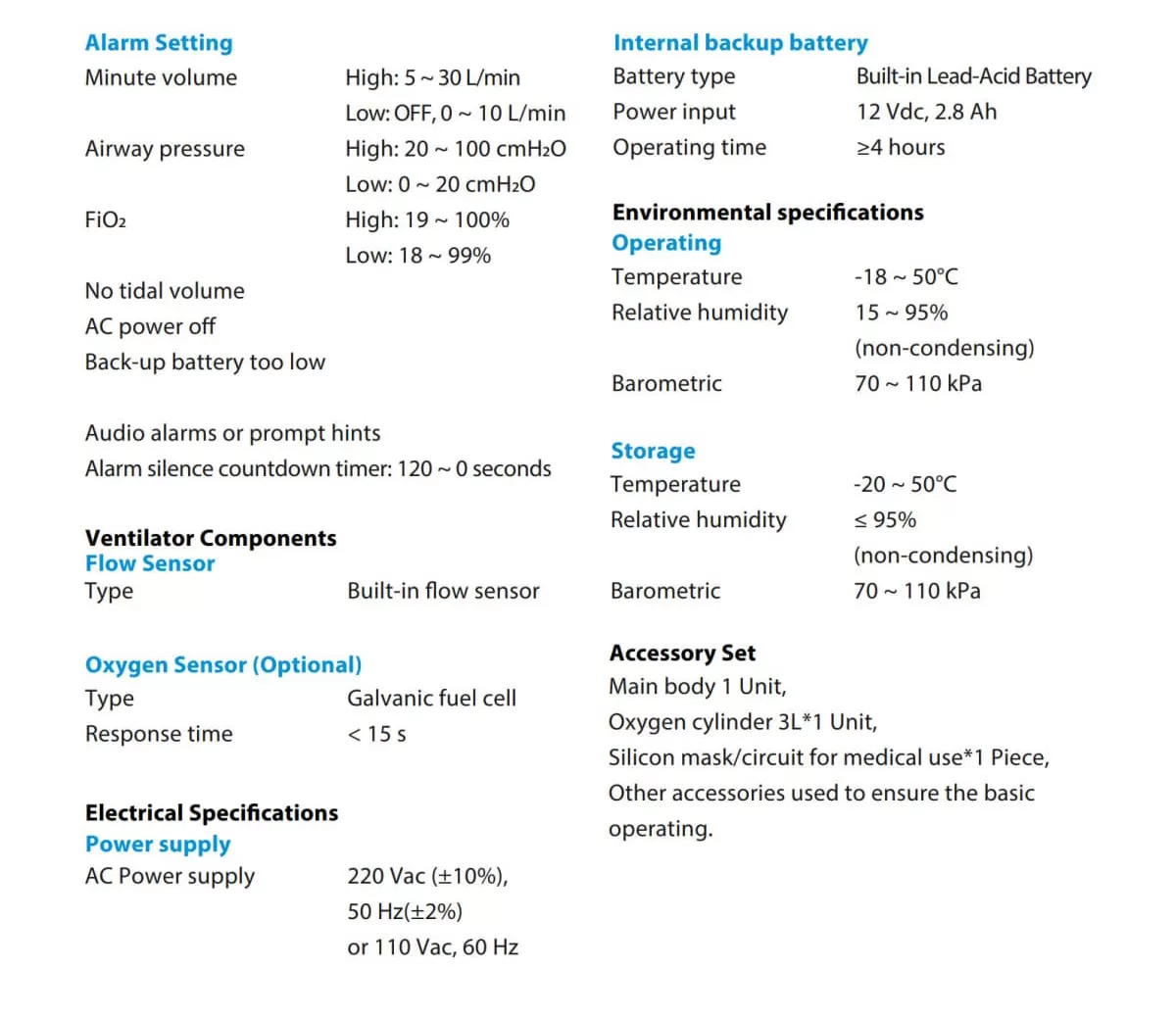

- Screen size5.7 inch
- Gas sourceO₂
- Tidal volume(VT)50 ~ 1500 ml
- Oxygen concentration45 ~ 100%
- l:E Ratio4:1 ~ 1:8
- PEEP0 ~ 20 cmH₂O (Optional)

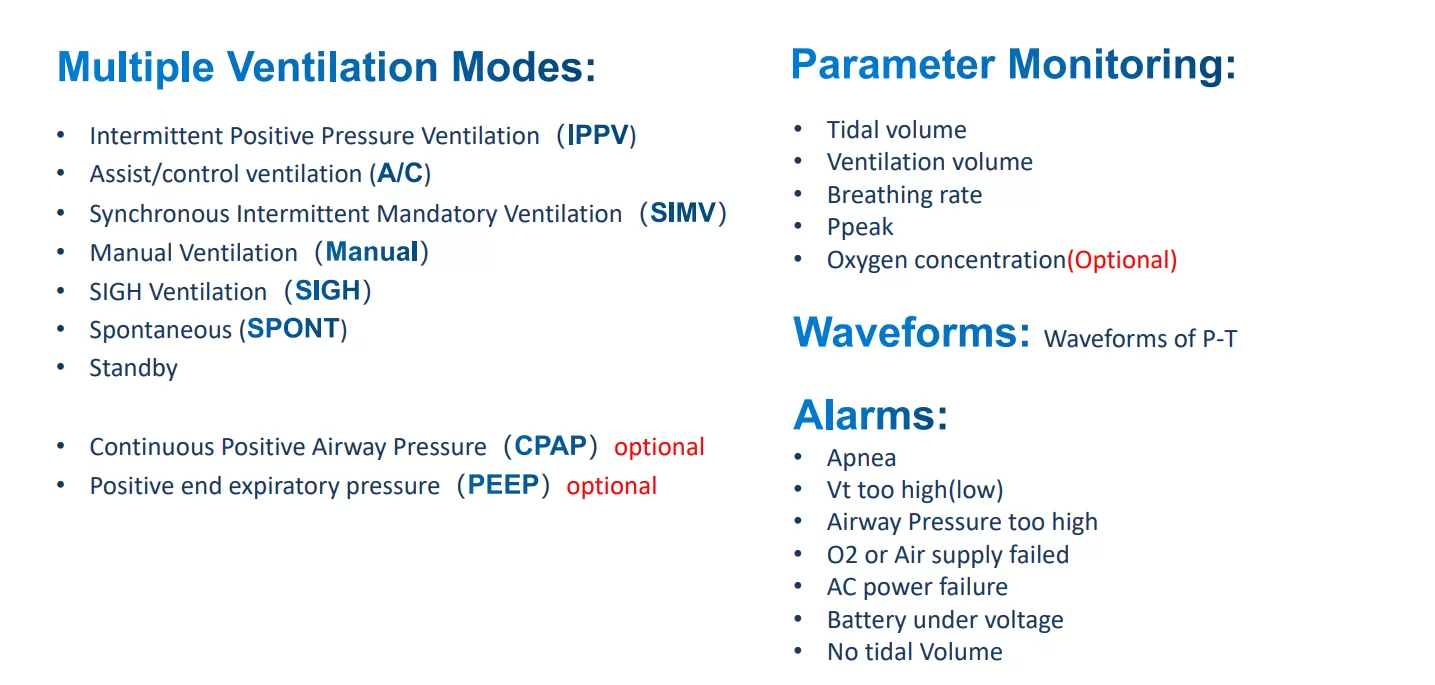

- Ventilation modesIPPV, A/C, SIMV, SIGH, MANUAL, APNEA, SPONT/CPAP*
- Parameter monitoringTidal volume, Minute volume, Frequency, Pmax, Spont Inspiratory trigger, FiO2*, PEEP*
- WaveformPressure-Time
- Battery> 4 Hours (Sealed Lead Acid, 12V)
1. What ventilation modes does this portable device offer?
It supports IPPV, A/C, SIMV, SIGH, Manual, Apnea, and optional SPONT/CPAP modes.
2. How large is the monitoring screen?
The ventilator is equipped with a 5.7-inch color screen for real-time parameter monitoring.
3. Does it display waveforms during ventilation?
Yes, it displays Pressure-Time waveforms on the screen for better clinical observation.
4. Can I adjust the oxygen concentration?
Yes, the oxygen concentration is adjustable from 45% to 100% to suit patient needs.
5. Is PEEP available on this model?
Positive End-Expiratory Pressure (PEEP) is available as an optional feature, ranging from 0 to 20 $cmH_2O$.
6. How is the minute volume monitored?
The smart control system automatically monitors and displays minute volume and tidal volume.
7. Does it have an Apnea ventilation mode for safety?
Yes, the Apnea mode ensures ventilation is maintained if the patient stops breathing spontaneously.

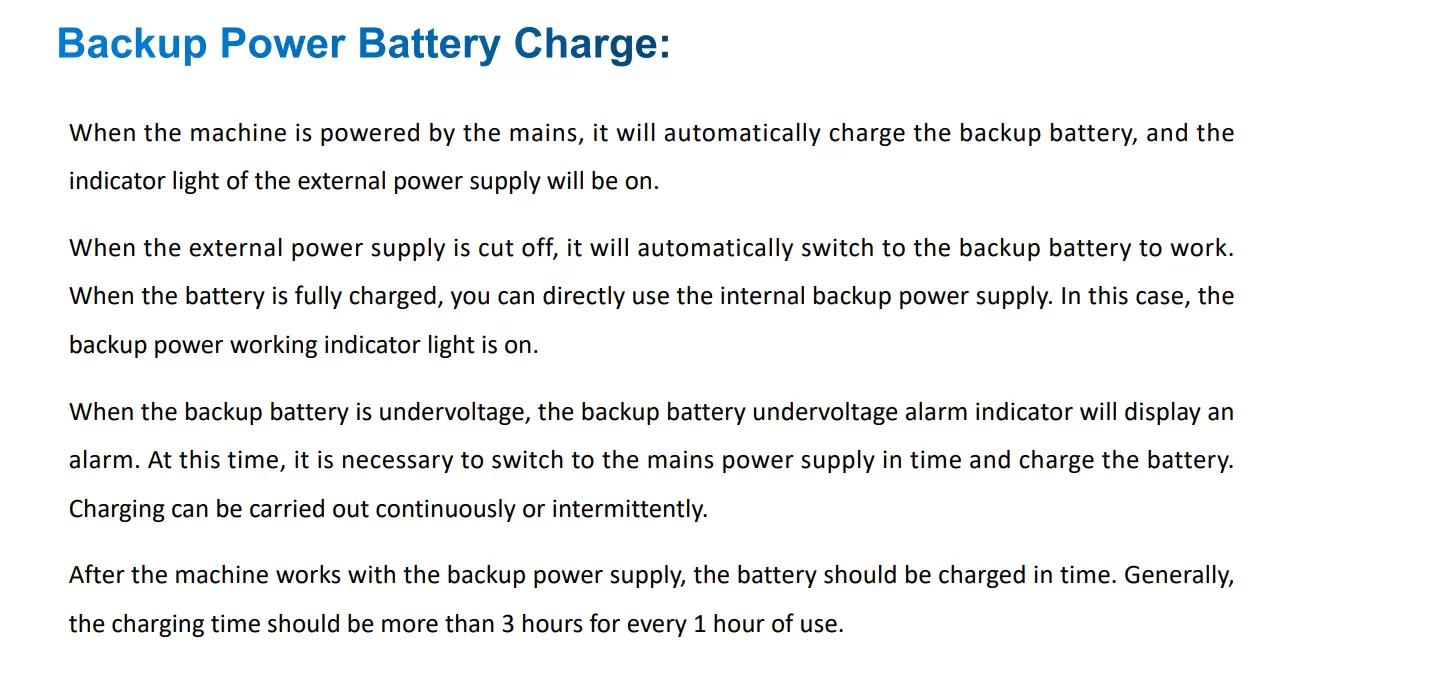

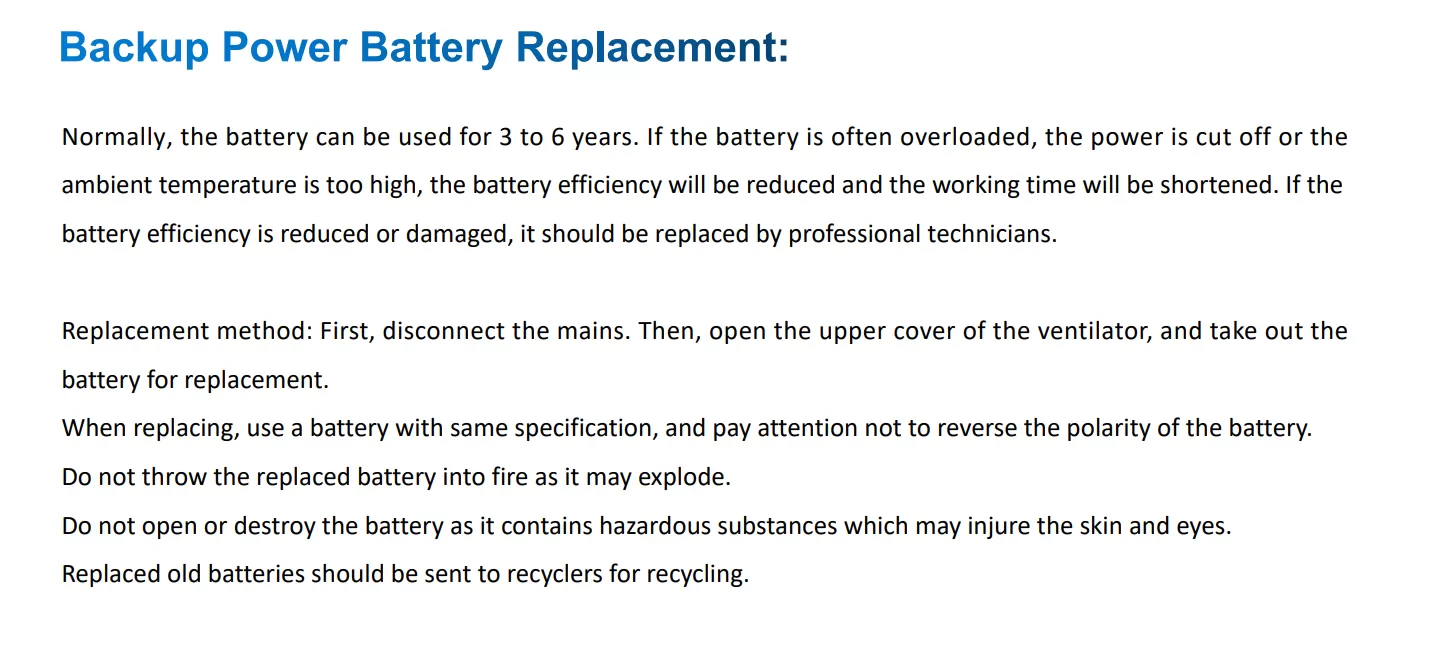

8. What type of battery is used in the device?
It uses a 12V sealed lead-acid battery for stable, long-lasting power supply.
9. Can I adjust the inspiratory trigger?
Yes, the system monitors spontaneous inspiratory triggers to improve patient synchronization.
10. What are the core components made of?
The device uses high-quality imported components to ensure safe and stable operation.
11. Is the UI design easy for non-specialists to operate?
The UI is designed to be intuitive, allowing parameters to be set quickly in emergency settings.
12. Does it monitor the FiO2 levels?
Optional FiO2 monitoring is available to ensure accurate oxygen delivery.
13. What is the benefit of the SIGH mode?
The SIGH mode provides periodic deep breaths to help prevent alveolar collapse.
14. How portable is the unit for bedside use?
It is lightweight and compact, making it easy to move and use beside the bed in busy wards.
15. Is it resistant to interference from other equipment?
Yes, it features anti-interference technology to work alongside other critical care monitors.
