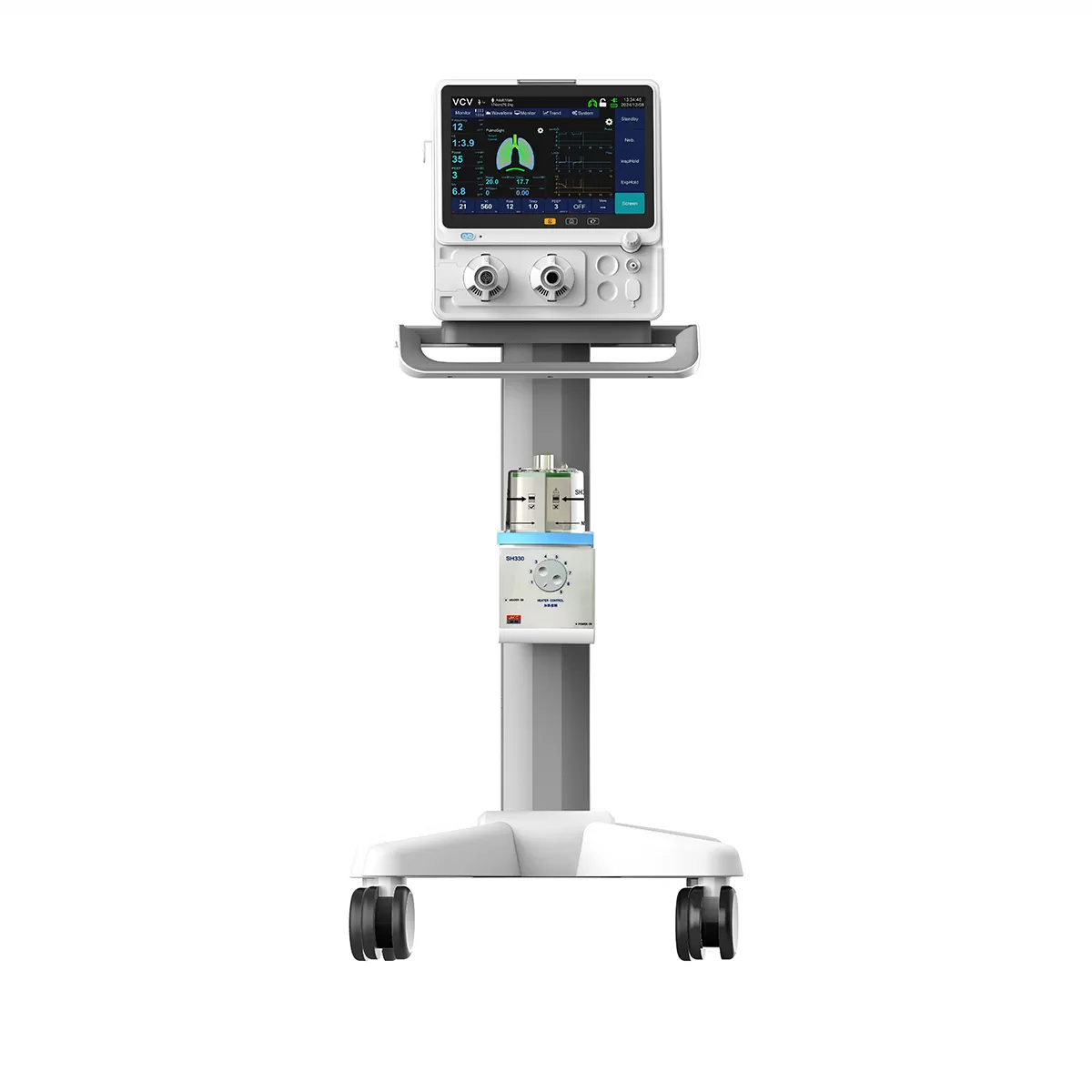

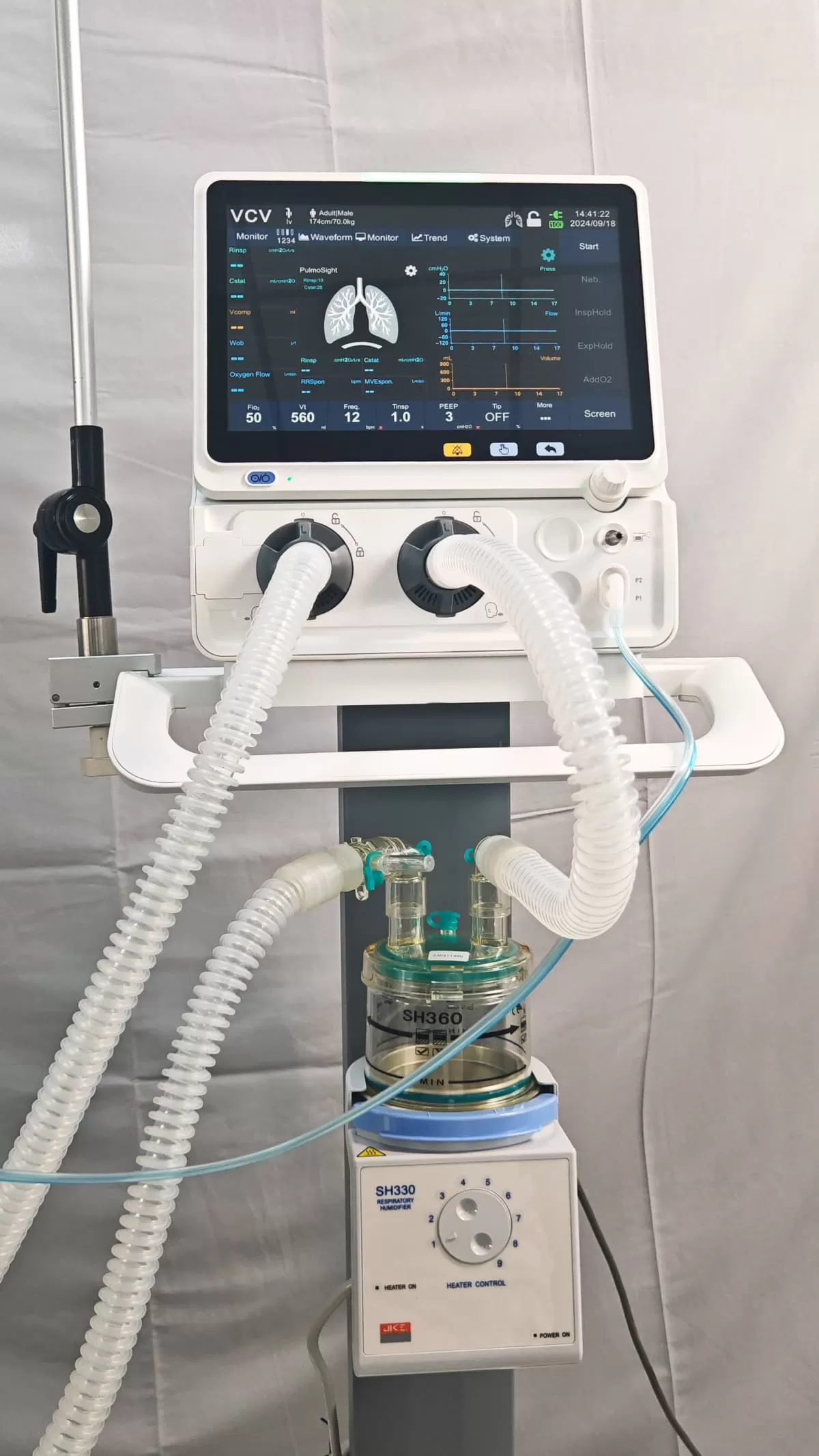

ICU Turbine Ventilator T60 for Neonatal and Adult
 Lightweight and Portable |  Electric Driven and Control |  Sequential Treatment |
| Can be carried and operated by single hand; stand alone main unit with trolley optional. | High-performance turbine motor for gas source. With a maximum peak flow rate ≥210 L/min. | Possees Invasive and non-invasive ventilation, high-flow oxygen therapy functionality, providing comprehensive respiratory support for patients. |

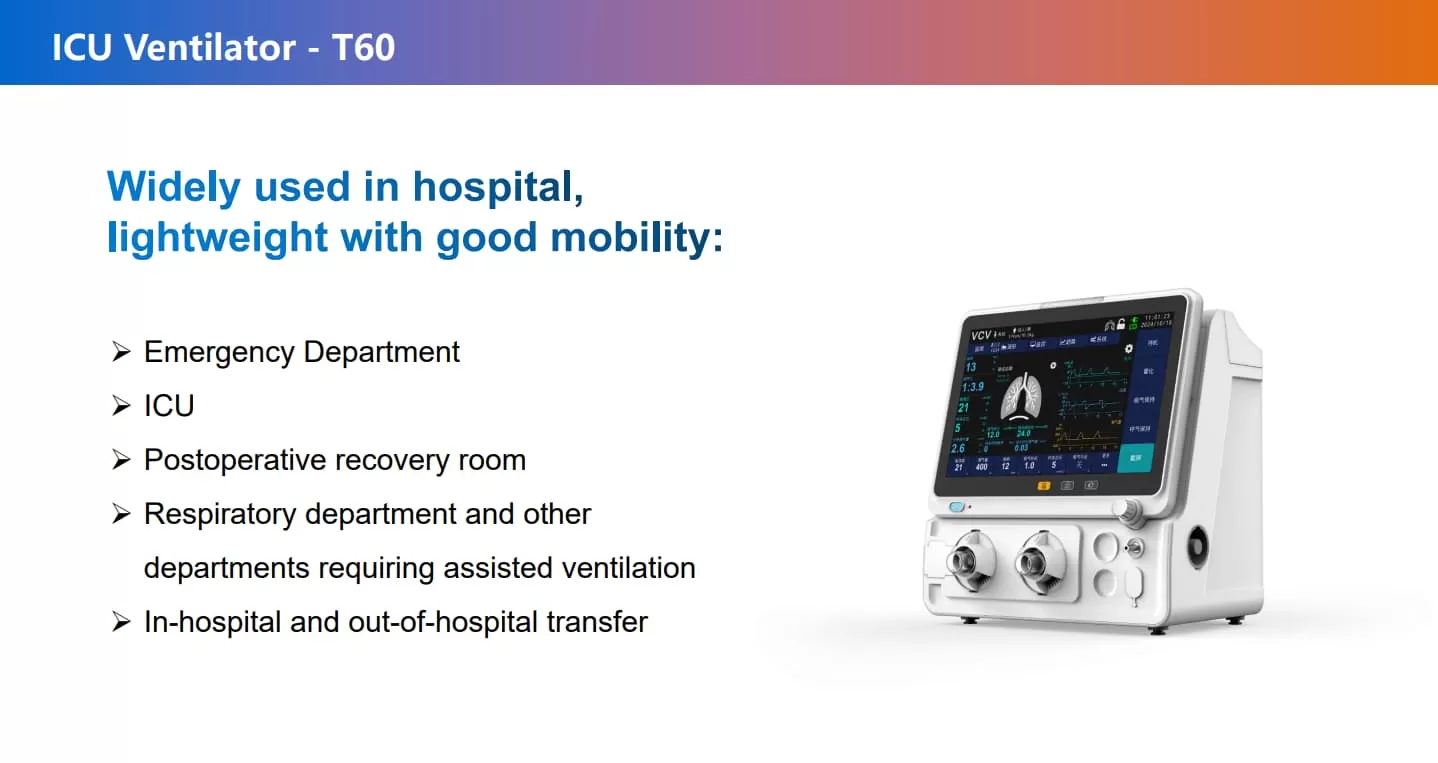

 Invasive Ventilation |  In/Out Patients Transfer | Non-invasive Ventilation |
| A secure and stable control system with comprehensive ventilation modes and auxiliary monitoring functions. Dynamic compensation for tidal volume, and oxygenation for auxiliary suction. | With a compact and light weighted main unit, it can be easily handheld. Internal lithium battery maximally supports power supply during patient transfer. One-click lock screen, prevent mis-operation. | Multiple non-invasive ventilation modes. Safe and effective leak compensation. High-flow oxygen therapy. Comprehensive monitoring and alarm system. |
Intelligent ventilation tailored to each patient’s needs.
| ntelligent Ventilation,Lung Compliance Compensation | Dynamic Lung View | High-flow Oxygen Therapy |
| Multiple auxiliary tools and monitoring functions, advanced automatic compensation for tidal volume and lung compliance. Assist professionals with fast and accurate diagnosis of patient respiratory status. | Visualize ventilation status, respiratory parameters, resistance, compliance and other information to simulate the real-time respiratory status of the lungs for easy observation by clinicians. | High-flow oxygen therapy can rapidly increase blood oxygen saturation and reduce the symptoms of hypoxia. The ventilator has a built-in electronic air-oxygen mixer, with an adjustable range of oxygen concentration from 21% to 100%, a maximum gas flow rate of 60 L/min. |
| Recruitment Maneuver* | Event Log Real-time Review | Information Interconnection Efficient Management |
| Intermittently applying continuous airway pressure and maintaining it for a period of time can recruit collapsed alveoli during ventilation. Prevent secondary alveolar atelectasis caused by low tidal volume ventilation, thereby preventing the occurrence of pulmonary complications. | Provide 96 hours trends analysis graphs, storage for at least 3000 logs and alarm information. The data can be exported and saved instead of being cleared in the event of a “shut down” or power failure. | Ethernet, COM, HDMI, 2 USB interfaces, can connect to hospital, out-of-hospital network, monitors and other equipment. Data can be exported and easily upgraded and maintained. Optional: ETCO₂ module, SPO₂ module. |
| Strong Power, Safe Protection | Stable Performance, Precise Control |

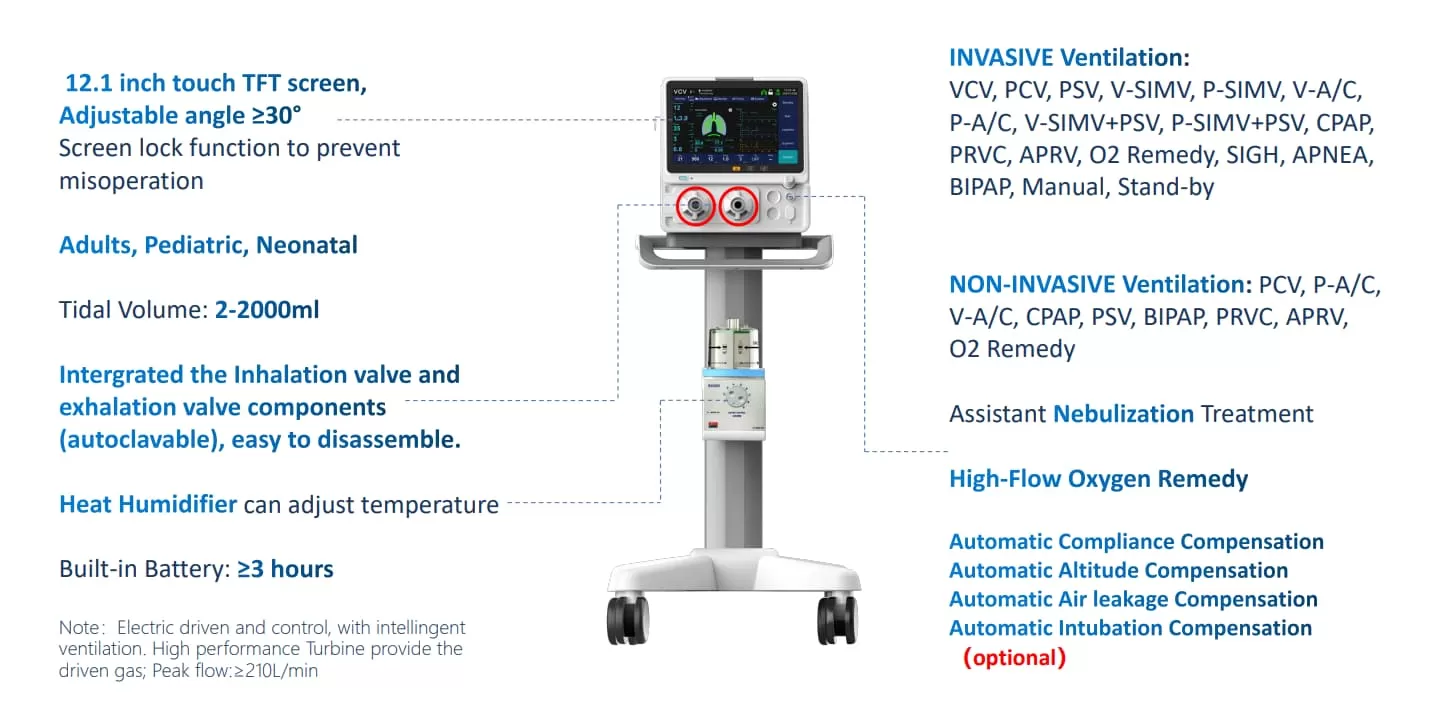

| Strong turbine power, safe and stable control system, Parallel oxygen source design, supporting both high-pressure and low-pressure oxygen sources. Integrated design of inhalation and exhalation valve components, easy to disassemble. 134°C autoclave and high-pressure sterilization support, providing safe protection for patients. | Capable of supporting the various cases of emergency & critical care. |
| Intuitive, Concise, Easy To Use | Comprehensive Ventilation Modes |

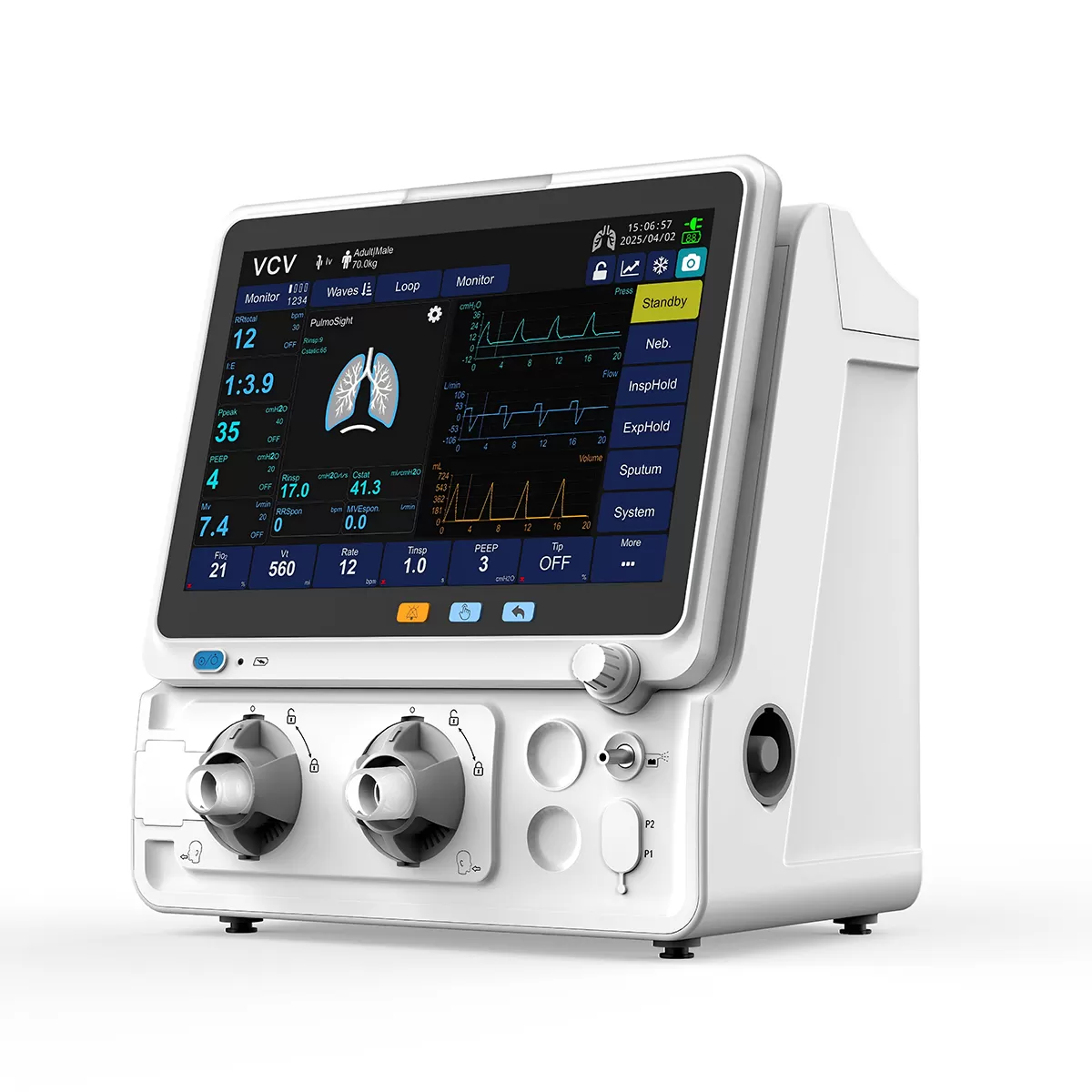

| 12.1-inch LCD touchscreen, multi-angle views. Flat UI design with multilingual operation and display support, including English, Spanish, French, Russian, and more. Two-step operation for all commands. Adjustable screen angle for multiple observation. Visual and audio alerts. | Suitable for adult, pediatric, and neonatal patients, the system provides full-process support involving both invasive and non-invasive ventilation. A variety of ventilation modes and functions effectively improve human-machine synchronization, making breathing more comfortable for patients. Ventilation Modes Include: VCV, PCV, PSV, PRVC, APRV, CPAP, V-SIMV, V-A/C, P-A/C, P-SIMV, V-SIMV+PSV, P-SIMV+PSV, HFNC, BIP |
imported components, ensuring safer and more stable operation.

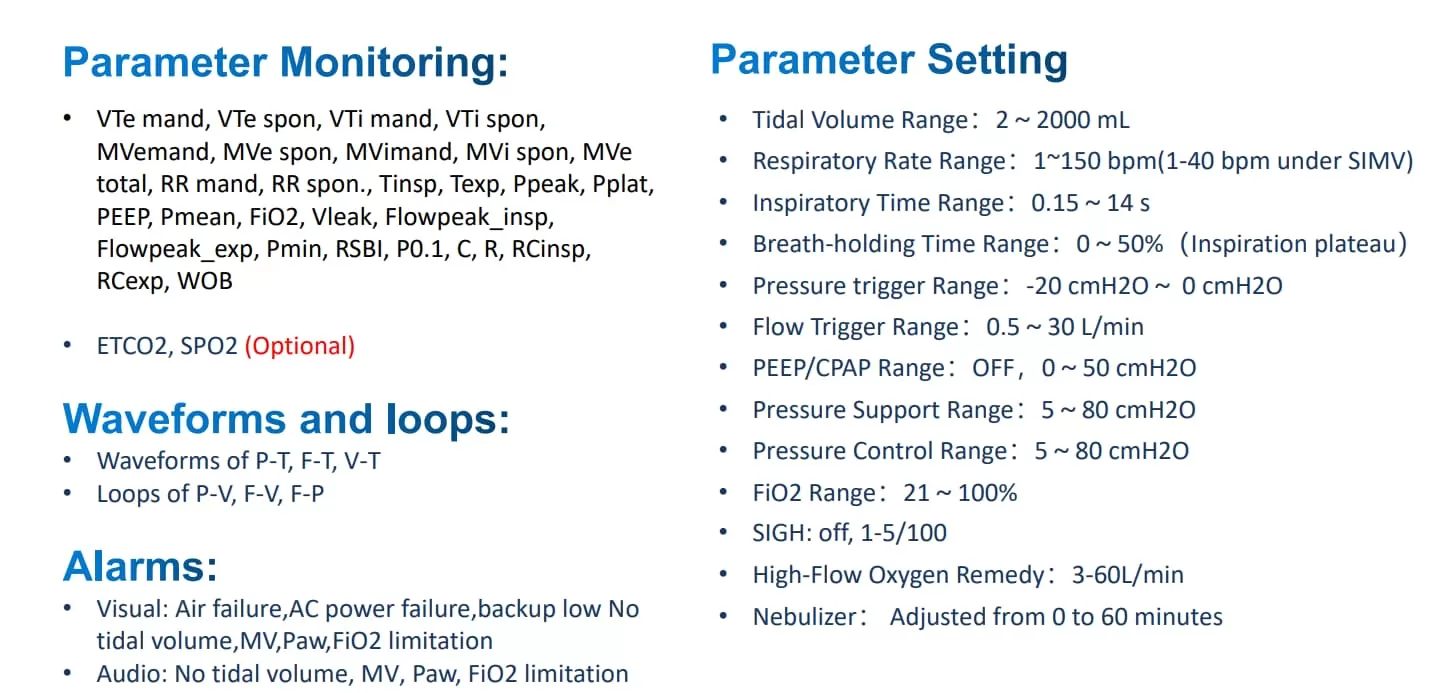

- Screen12.1" Color active matrix TFT touch
- Display parametersVTi, VTe, VTe spon, I:E, MV, MVe spon, RR mand, RR spon, RR total, Tinsp, Texp, Ppeak, Pplat, Pmin, Pmean, PEEP, TVe/Ibw, FiO₂ , Flowpeak_insp, Flowpeak_exp, LeakageVolume, LeakageFlow, RSBI, P0.1, Rinsp, Rexp, Cstat, Cdyn, RCinsp, RCexp, WOB, EtCO₂ (Optional)
- Patient typeAdult, Pediatric, Neonate
- ApplicationInvasive, Non-invasive
- Ventilation ModeVCV, PCV, PSV, V-SIMV, P-SIMV, V-SIMV+PSV, P-SIMV+PSV, V-A/C, P-A/C, PRVC, CPAP, BIPAP, O₂ Remedy, APRV, APNEA, SIGH, STAND-BY
- Tidal volume2 ~ 2000 mL
- Respiratory rate1 ~ 150 bpm
- O₂ Flow3 ~ 60 L/min
- Battery180 min
Stable operation, providing strong support for critically ill patients. This equipment upgrade project successfully achieved our core goals of upgrading and strengthening ICU-operating room integration.
1. What are the advantages of the PRVC ventilation mode?PRVC provides the benefits of pressure-controlled ventilation with the safety of a guaranteed tidal volume.
2. How many hours of trend data can be reviewed?The machine provides 96 hours of trend analysis graphs and stores at least 3,000 event logs.
3. Is the oxygen concentration adjustable?Yes, the built-in electronic mixer allows oxygen adjustment from 21% to 100%.
4. What is the maximum respiratory rate available?The device supports a high respiratory rate of up to 150 bpm, catering to neonatal requirements.
5. Does the ventilator support high-pressure and low-pressure oxygen sources?Yes, its parallel design supports both high-pressure and low-pressure oxygen input.
6. Can it display loops and waveforms simultaneously?The 12.1-inch LCD shows multiple waveforms, loops, and parameters on a single integrated screen.
7. Is there a one-click lock screen for safety?Yes, the one-click lock screen prevents accidental setting changes during clinical use.
8. What type of screen is used in this model?It features a high-definition 12.1-inch color active matrix TFT touch screen.
9. How does the device assist with diagnostic accuracy?The Advanced compensation tools and Dynamic Lung View assist professionals in fast, accurate diagnosis.
10. Is the data cleared after a power failure?No, data is stored and can be exported even after a "shutdown" or power loss.
11. What interfaces are available for data export?The unit includes Ethernet, COM, HDMI, and two USB interfaces for connectivity.
12. Does it support neonatal invasive ventilation?Yes, with a 2mL tidal volume and precise pressure control, it is ideal for neonatal invasive care.
13. How does the system improve human-machine synchronization?Multiple triggers and adaptive modes like PSV and BIPAP enhance patient breathing comfort.
14. What is the maximum O₂ flow for the therapy mode?The maximum gas flow for high-flow oxygen therapy is 60 L/min.
15. Can the device be upgraded remotely?Yes, the data interfaces allow for easy software upgrades and maintenance.
