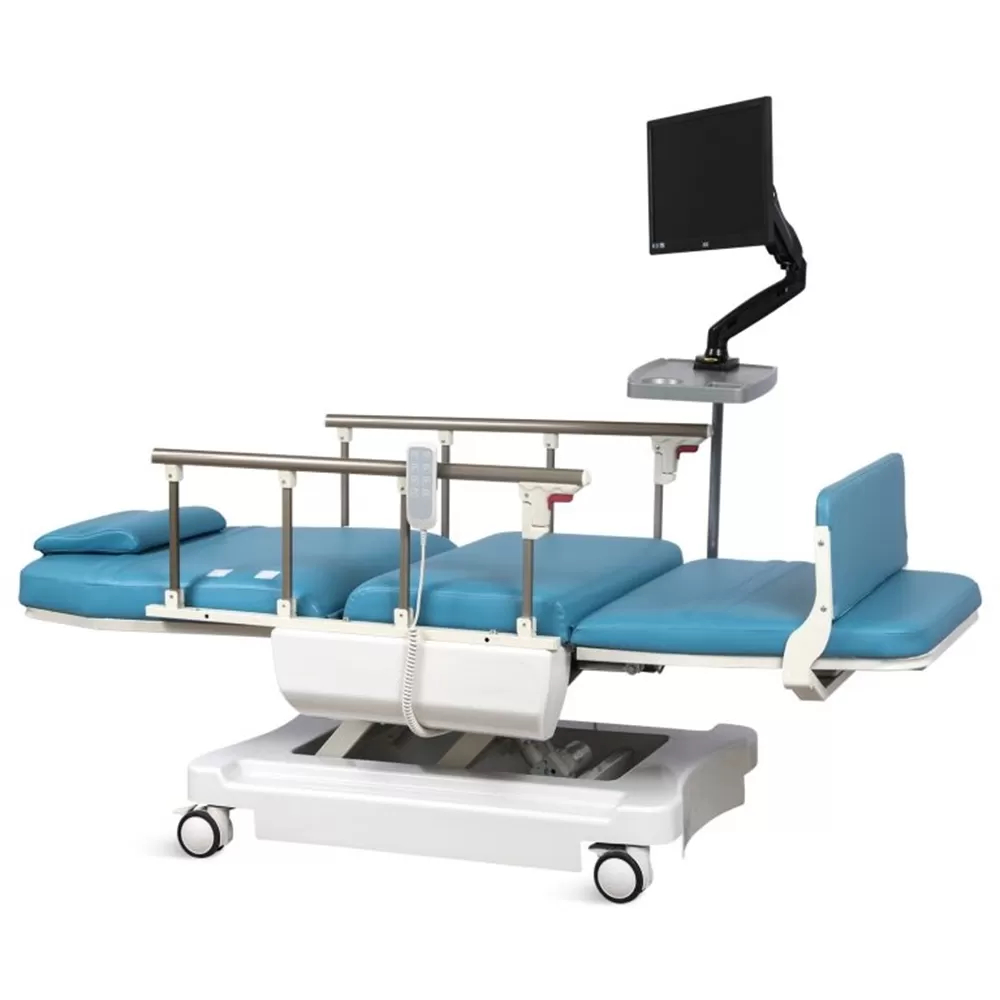

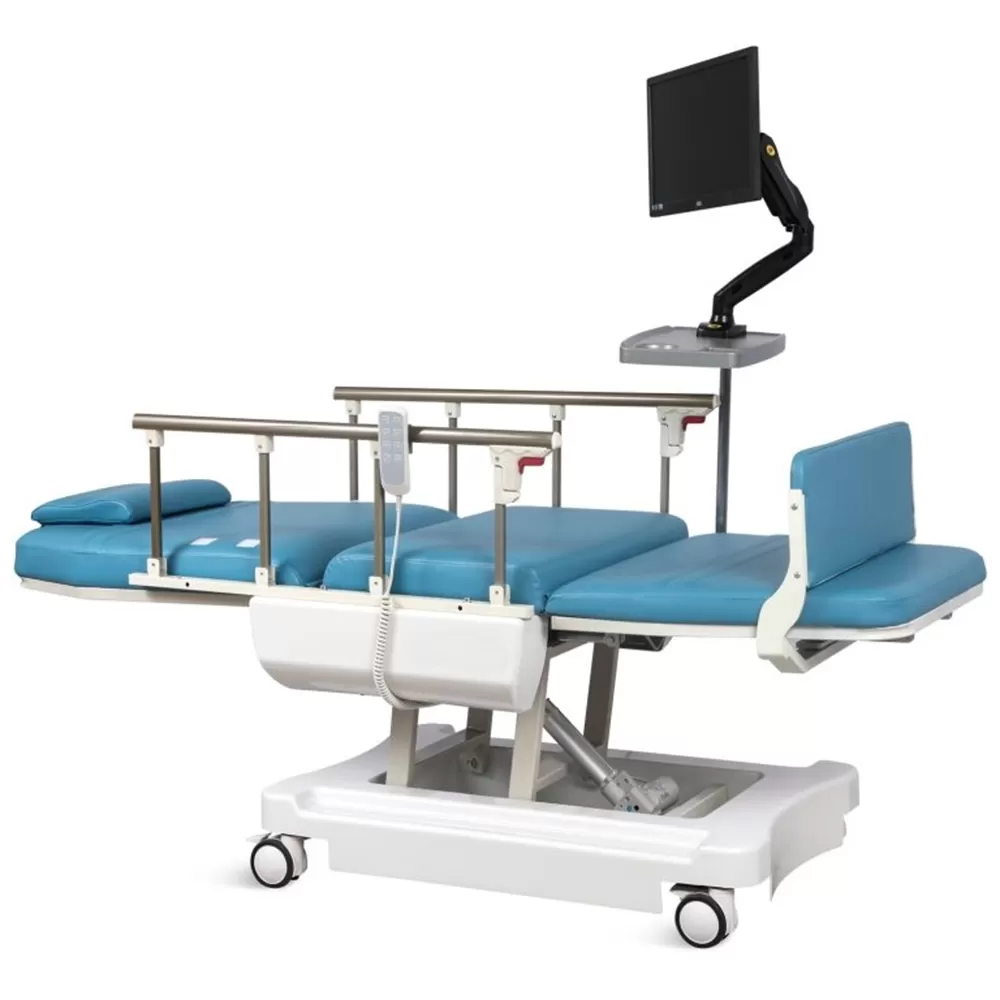

Medical Dialysis Recliner SKE-188A
Highlights
Design
European 4 sections ergonomics design.
Plastic
Environmental plastic can be sterilized in 100℃, tensile up to 30MPa Virgin ABS material.
Electric Motor
Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with lifetime 20,000 times movement.
Chair Surface
Genuine leather or supebric cover, with artisanal making, comfortable hand feeling.
Siderail
Aluminum alloy side rail, 4-staff, collapsed type with safe lock.
Armrest
Armrest is R120° concave curve, avoid donor’s arm sliding, ensure the donor’s safety and comfort.
Foot Board
150mm foot board adjustable distance.
Pillow
Ergonomics design removable pillow.
Caster
Four inch directional casters with break. Quiet and stable to move. Safe load bearing 240kg.
Hand Controller
ULTRAFIBER LEATHER COLOR TABLE
Off white 5509-1
Off white 5509-2
Beige 5509-3
Pink 5510-45
Light rose red 2892-15
Rose red 2201-30
Wine red 2209-22
Light blue 5510-43
Sky blue 5510-7
Dark lake blue 2201-40
Light grey 5509-14
Gray 5510-12
Lake blue 5509-27
Navy blue 2201-42
Light green 2210-88
Green 5510-20
Parameters
| Size(LxW) | 2040 x 700 mm(±10mm) |
| Back | 820 x 700 mm(±10mm) |
| Seat | 470 x 700 mm(±10mm) |
| Leg | 660 x 700 mm(±10mm) |
| Foot board | 680 x 500 mm(±10mm) |
| Pillow | 360 x 230 mm(±10mm) |
| Mattress thickness | 80 mm(±10mm) |
Configuration
| Back-rest Adjustment | 0° - 70°(±5°) |
| Knee-rest Adjustment | -40° - 0°(±5°) |
| Height adjustment | 580 - 670mm(±10mm) |
| Foot board adjustable distance | 150 mm(±10mm) |
Optional
| Hand Controller | 1pc |
| Power Line | 1pc |
| Foldable aluminum guardrail | 1set |
| 4 Silent Castor | 4pcs |
| Pillow | 1pc |
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQs：
1. What is the design inspiration for the SKE-188A dialysis chair?
The chair features a European 4-section ergonomic design, specifically engineered to provide maximum support and comfort during long treatments.
2. How does the R120° concave armrest improve patient safety?
The R120° concave curve is designed to prevent the donor's arm from sliding, ensuring stability and safety during blood collection or dialysis.
3. What is the maximum weight capacity of the SKE-188A chair?
The SKE-188A is built for heavy-duty use with a safe load-bearing capacity of up to 240kg.
4. What materials are used for the chair's surface?
The surface is available in genuine leather or high-quality fabric with artisanal finishing for a comfortable, premium hand feeling.
5. How quiet is the electric motor system?
The chair uses linear motors with noise levels under 50dB, complying with UL, ROHS, and EN standards for a peaceful medical environment.
6. What is the adjustment range for the back-rest and knee-rest?
The back-rest adjusts from 0° to 70° (±5°), and the knee-rest adjusts from -40° to 0° (±5°) for flexible positioning.
7. Are the side rails secure on the SKE-188A?
Yes, it features 4-staff aluminum alloy side rails with a collapsed design and a safe lock to maintain patient security.
8. Can the footboard be adjusted for different patient heights?
Yes, the footboard has an adjustable distance of 150mm to accommodate patients of various heights comfortably.
9. What type of casters does the SKE-188A use?
It is equipped with four-inch directional casters with brakes, providing quiet and stable movement throughout the clinic.
10. Is the plastic used in the chair easy to sterilize?
The virgin ABS environmental plastic can be sterilized at temperatures up to 100°C and features high tensile strength up to 30MPa.
11. How durable is the hand controller?
The hand controller is rigorously tested to remain qualified and functional after at least 2,000 uses.
12. What is the thickness of the SKE-188A mattress?
The chair comes with a high-comfort 80mm thick mattress, ideal for prolonged dialysis or infusion sessions.
