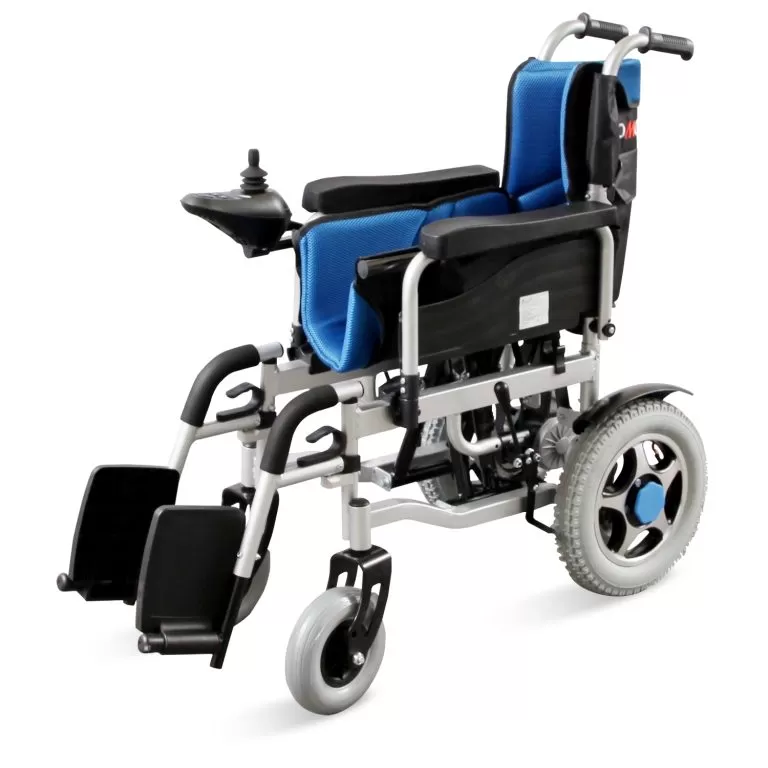

Lightweight Electric Wheelchair SKE180 | 45cm Wide Seat Power Bed
Highlights
Design
Foldable type for easy transport
Materials
Automatic welding ensures a completely smooth weld.

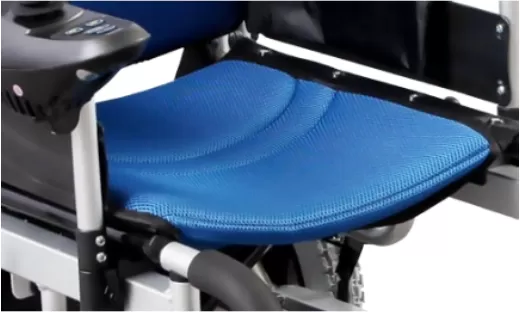

Cushion
Asiento de doble cojin, colchon de esponja extraible. Diferentes colores disponibles.

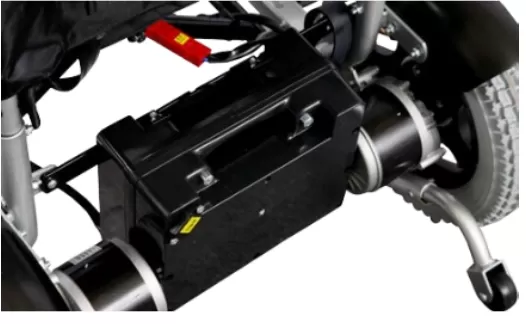

lithium battery
High-performance lithium battery, detachable, safe and reliable, range up to 20 kilometers
Removable controller panel
With five-speed adjustment, horn button, and LED light display power, Joystick control direction, easy to operate
Foot panel
High quality plastic foot panel, removeable and foldable
Wheel
Different sizes wheels are available, meet the request of different patients.
Handle brake
Easy to operate, safe and reliable performance

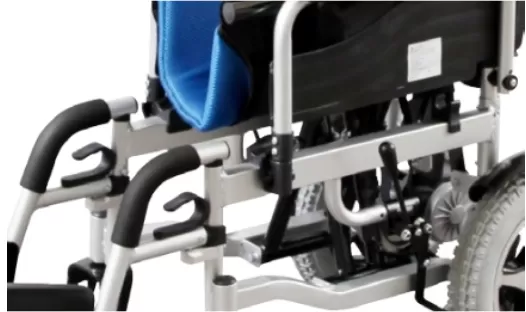

Clutch
Parameters
| Size（L×W×H） | 1100×650×950mm±10 mm |
| Seat width | 450mm±10mm |
| Front wheel diameter | 200mm±10mm |
| Rear wheel diameter | 300mm±10mm |
| Aluminum alloy frame | |
| Climbing capacity | ≤ 13 degrees,Motor power: 24V DC, 250W × 2 |
| Lead-acid battery | 24V12AH |
| Range | 12km (depending on road conditions and body weight) |
| Speed | 1-6km/h (five-speed adjustable) |
| Load capacity | 100kg |
FAQs:
1. What is the seat width of the SKE180 electric wheelchair?
The SKE180 features a comfortable 450mm (±10mm) seat width, designed with ergonomics to provide a superior user experience.
2. Can the SKE180 wheelchair be switched between electric and manual modes?
Yes, each motor is equipped with a clutch that allows the user to easily switch between electric and manual operation.
3. What is the maximum climbing capacity of this power wheelchair?
The SKE180 is engineered to handle slopes and inclines with a climbing capacity of up to 13 degrees.
4. Is the SKE180 wheelchair foldable for transport?
Yes, the wheelchair features a scientific foldable design, making it easy to store in car trunks and convenient for travel.
5. What are the motor specifications for the SKE180?
The wheelchair is powered by high-performance dual 24V DC motors, providing 250W × 2 of reliable driving power.
6. What is the maximum speed and is it adjustable?
The speed ranges from 1km/h to 6km/h, and it can be controlled via a five-speed adjustment panel on the joystick.
7. What type of battery does the SKE180 use?
This model is equipped with a 24V 12AH battery, providing a stable range of approximately 12km to 20km depending on conditions.
8. Are the wheels suitable for different terrains?
Yes, it features solid rubber universal wheels (200mm front/300mm rear) that are high-quality, reliable, and puncture-proof.
9. What safety features are included in the control panel?
The removable controller panel includes five-speed adjustment, a horn button, an LED power display, and an intuitive joystick.
10. What is the load capacity of the SKE180 electric wheelchair?
The high-quality aluminum alloy and Baosteel frame provide a safe and sturdy load capacity of up to 100kg.
11. Are the foot panels and cushions removable?
Yes, the wheelchair includes a double-cushion removable sponge mattress and high-quality plastic foot panels that are both removable and foldable.
12. How does the braking system ensure user safety?
The SKE180 is equipped with an easy-to-operate handle brake system that provides reliable performance and safe stopping power.
