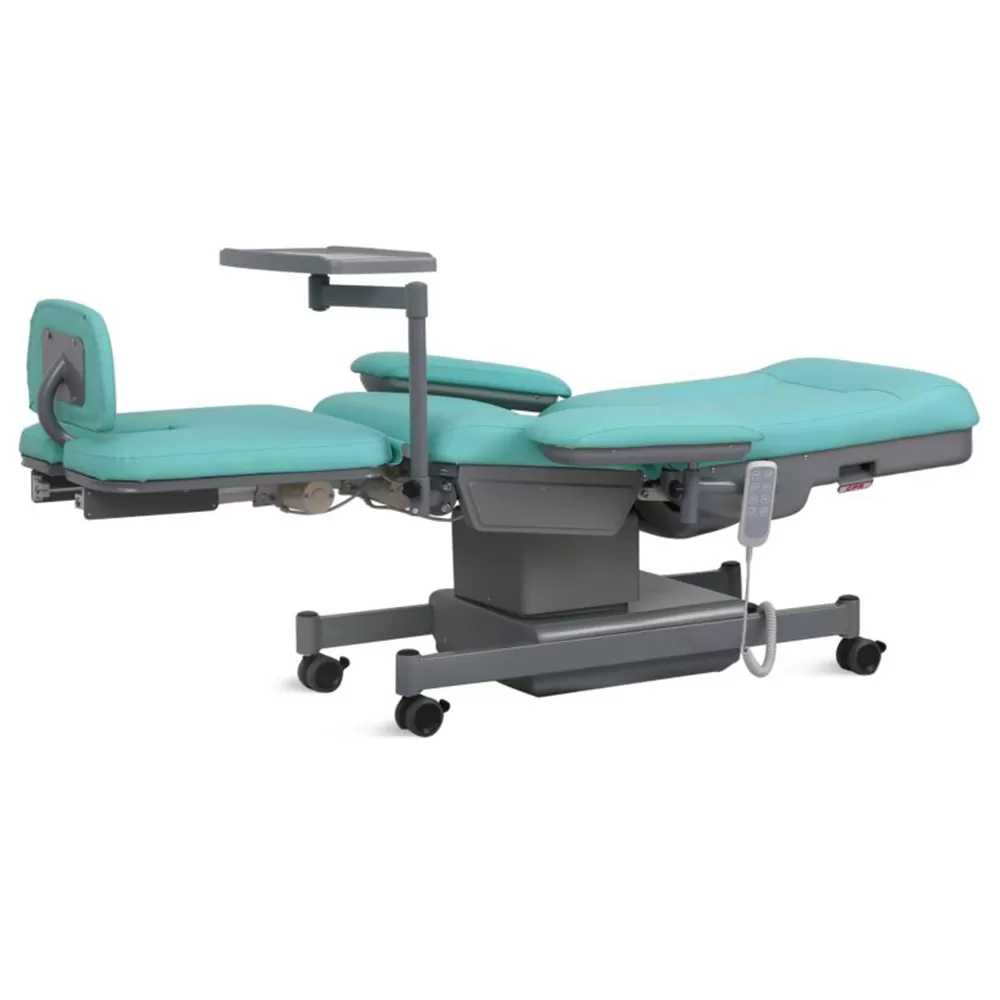

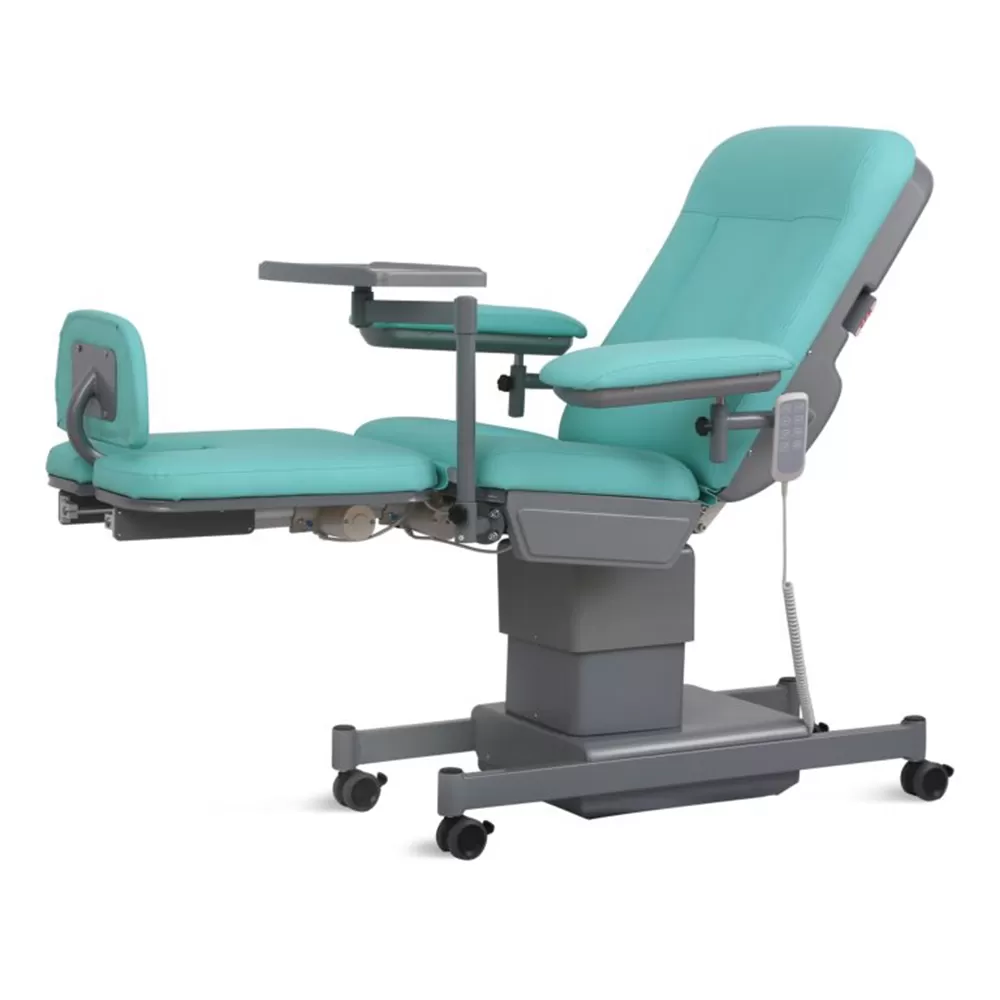

Adjustable Medical Electric Dialysis Chair SKE-134
Technical parameters
| Size(LxW) | 1930 × 580 mm(±10mm) |
| Back | 780 × 580 mm(±10mm) |
| Seat | 480 × 580 mm(±10mm) |
| Leg | 580 × 530 mm(±10mm) |
| Foot board | 240 × 380 mm(±10mm) |
| Mattress thickness | 80 mm(±10mm) |
| Back-rest Adjustment | -8° - 70°(±5°) |
| Knee-rest Adjustment | -50° - 0°(±5°) |
| Height adjustment | 550 - 700mm(±10mm) |
| Foot board adjustable distance | 150 mm(±10mm) |
| With CPR | |

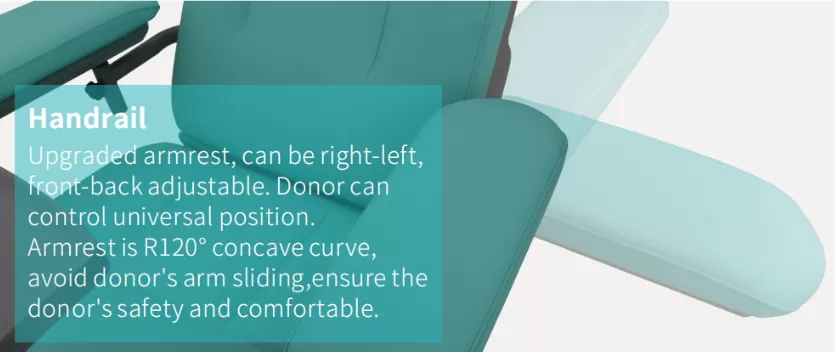

| Armrests swing out | 0° - 180° |
Technical configuration
| Hand Controller | 1pc |
| Power Line | 1pc |
| 3-inch brake wheel | 4pcs |
| Arm support | 2pc |

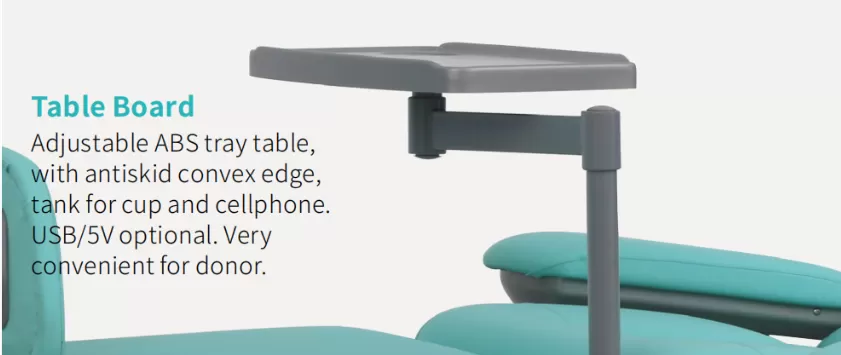

| Small Dining table | 1pc |
Quality Control
 |  |
SteelsBaosteel from Fortune Global 500. | Plastic11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact. |
 |  |
WeldingPanasonic Robotic ensure 360° full smooth wedlding. | Electric MotorLinear motor, with UL/ROHS/EN standard. Noise under 50dB, with lifetime 20,000 times movement. |
Accessories
 |  |
 |  |
Ultrafiber leather color table
* Note: the above is the physical scan, there may be a certain color difference in kind.
Should you have any inquiries or require further information on other models, please do not hesitate to contact us.
FAQs:
1. What is the adjustment range of the SKE-134 backrest?The backrest can be electrically adjusted from -8° to 70° (±5°) to ensure optimal patient positioning during dialysis.
2. Does the SKE-134 dialysis chair include a CPR function?Yes, the chair is equipped with a CPR function for rapid emergency positioning during clinical procedures.
3. What is the material used for the chair's frame?
The frame is constructed from high-quality Baosteel, sourced from a Fortune Global 500 company, ensuring extreme durability.
4. How quiet is the electric motor on the SKE-134?
It uses a linear motor with a noise level under 50dB, providing a quiet and peaceful environment for long-term treatments.
5. Can the armrests be adjusted for patient access?
Yes, the armrests feature a 0° to 180° swing-out design, making it easy for patients to get in and out of the chair.
6. What are the safety and environmental standards of the motors?
The electric motors comply with international UL, ROHS, and EN standards, with a service life of 20,000 movements.
7. How is the steel surface treated for hygiene?
The steel undergoes an 11-process epoxy painting (ASTM anti-bacterial tested) with a thickness of 0.12mm for superior protection.
8. What is the thickness of the SKE-134 mattress?
The chair comes with an 80mm thick high-quality mattress to provide maximum comfort during multi-hour dialysis sessions.
9. Is the footboard adjustable for different patient heights?
Yes, the footboard has an adjustable distance of 150mm to accommodate patients of various sizes.
10. How is the structural welding performed?
All structural components feature Panasonic Robotic 360° full smooth welding to ensure maximum strength and a clean finish.
11. What is the height adjustment range of the chair?
The seat height can be electrically adjusted between 550mm and 700mm for ergonomic access by medical staff.
12. Is the chair's painting resistant to impact?
Yes, the high-gloss anti-bacterial coating is designed to resist impacts of up to 50kg, ensuring long-term aesthetic appeal.
