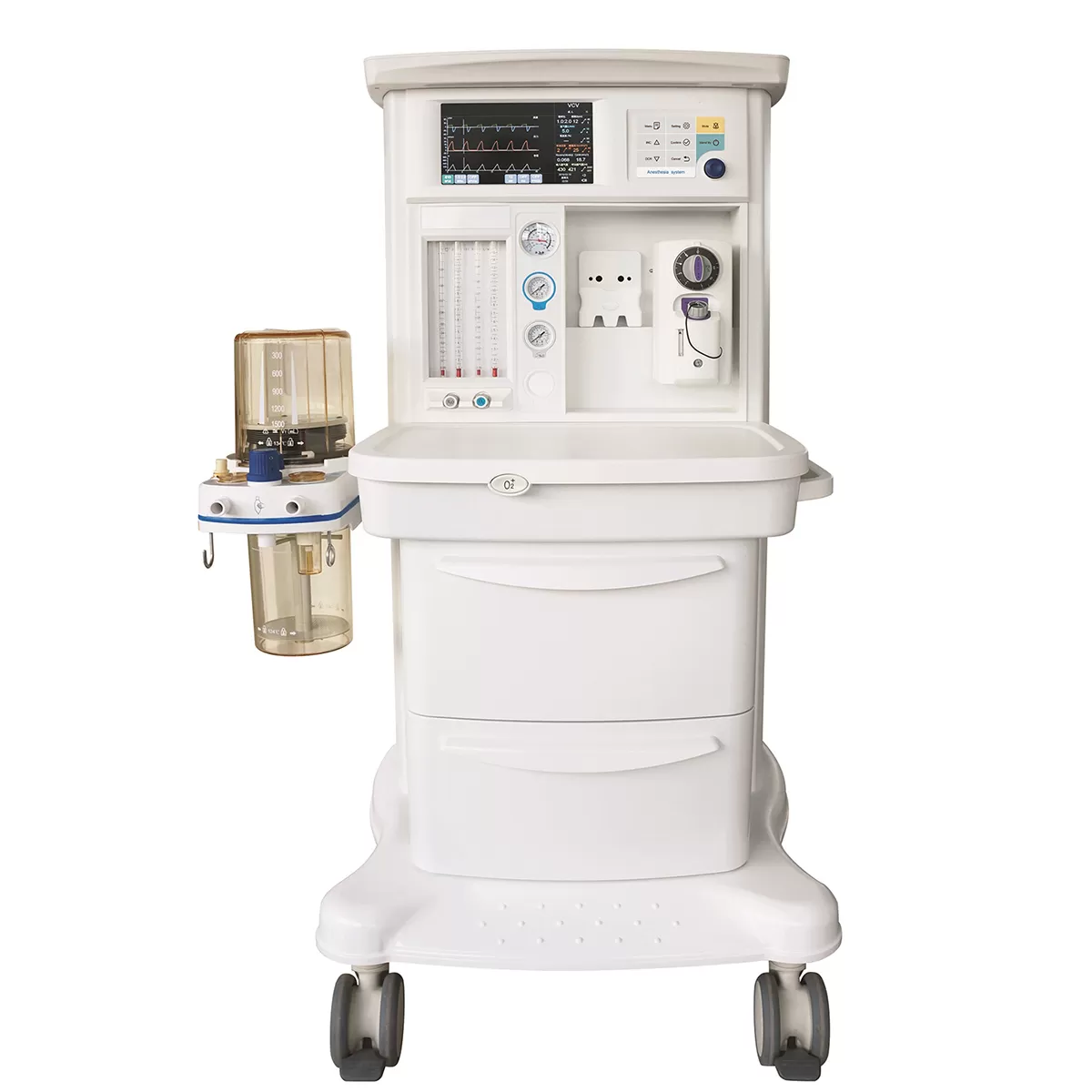

High-Performance Anesthesia Machine CWM-201A
Precision Control · Stable Performance
Delivering reliable anesthesia for every surgical moment.
 |  |  |  |
| Integrated breathing circuit with APL valve, excellent tightness. | Replacing drive bellow is not required when operating adult / pediatric anesthesia. | Max. 2 high-precision vaporizers. (Selectatec). | Real-time detection for loops, Paw, BPM, VT and compliance. |
Safe Design · Reliable Quality
Engineered for safety, accuracy, and efficiency in all procedures.
| Integrated Breathing Circuit | High Precision Vaporizer | Yoke System* |
| Integrated breathing circuit with APL valve provides excellent tightness and safety. The circuit components resistant to high temperature at 134℃ and high pressure disinfection. Replacing drive bellow is not required when operating adult / pediatric anesthesia. 2L volume sodium lime tank, single tank structure is more convenient to disassemble. | Vaporizer can support low flow anesthesia (as low as 0.2 L/min) and high flow anesthesia (up to 15 L/min). Accurate output of concentrations under varying conditions of pressure, flow and temperature. Support Selectatec mounting type and cagemount compatible. Agent type: Isoflurane, Enflurane, Halothane, Sevoflurane. Maintenance-free. Fill-in type: pouring. | Up to 3 backup cylinders with A-type 11 L size. |
Smart Interface · Intuitive Operation
Simplifying anesthesia management through intelligent design.
- Features
10.1 inch Large screen.
Intuitive English operating interface.
Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
Ventilation modes: VCV, SIMV, A/C, MANUAL, STAND-BY.
Max. 2 high-precision vaporizers.
FlowMeter:
2 tubes, O₂: 0.05 - 15 L/min;
2 tubes, N₂O: 0.05 - 15 L/min;
1 tube, Air: 0.1 - 15 L/min (Optional). - ACGO*International standard design. (diameter: 22mm).
Convenient for patients’oxygen inhalation and postoperative recovery.
To connect with T circuit or bain circuit for open-operation.

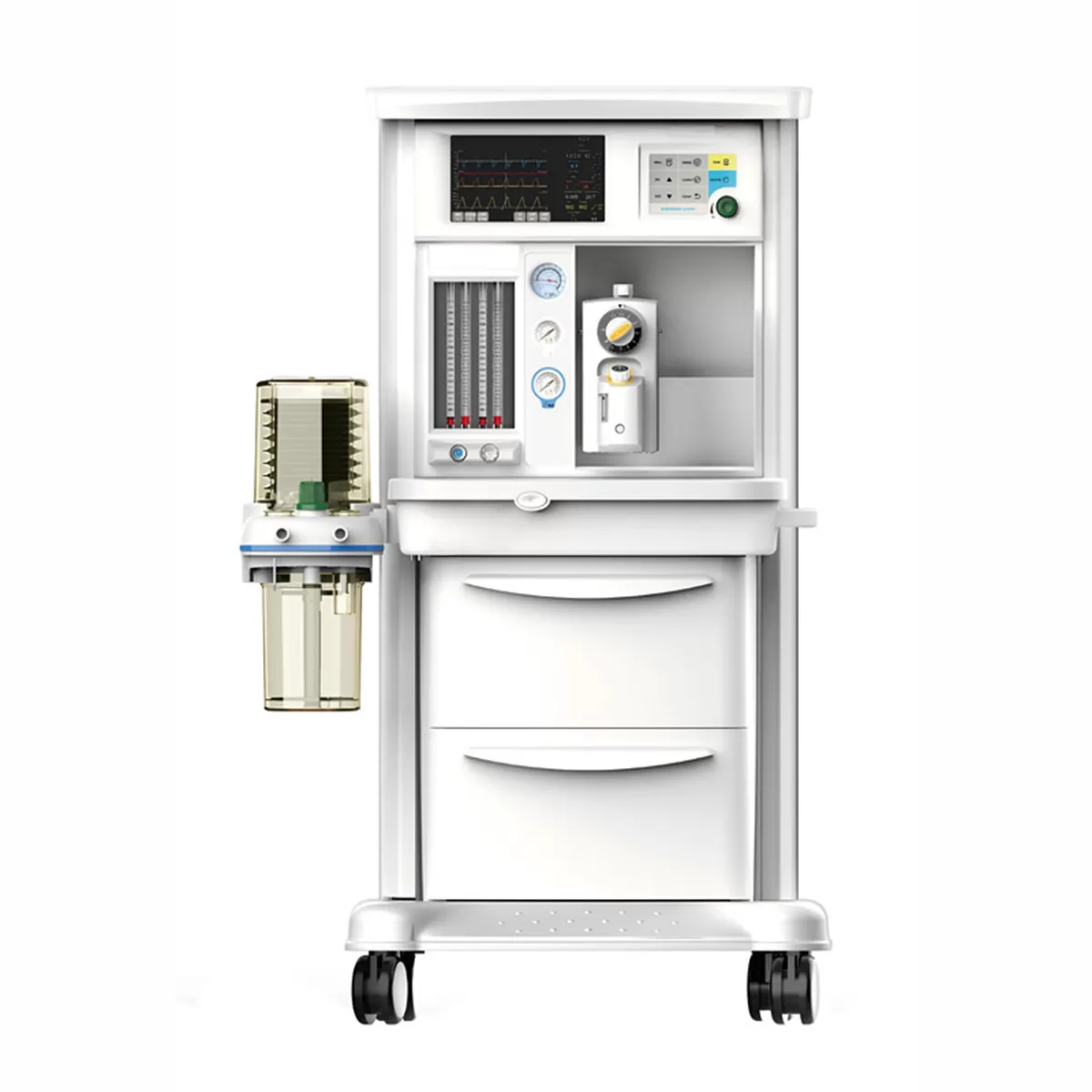

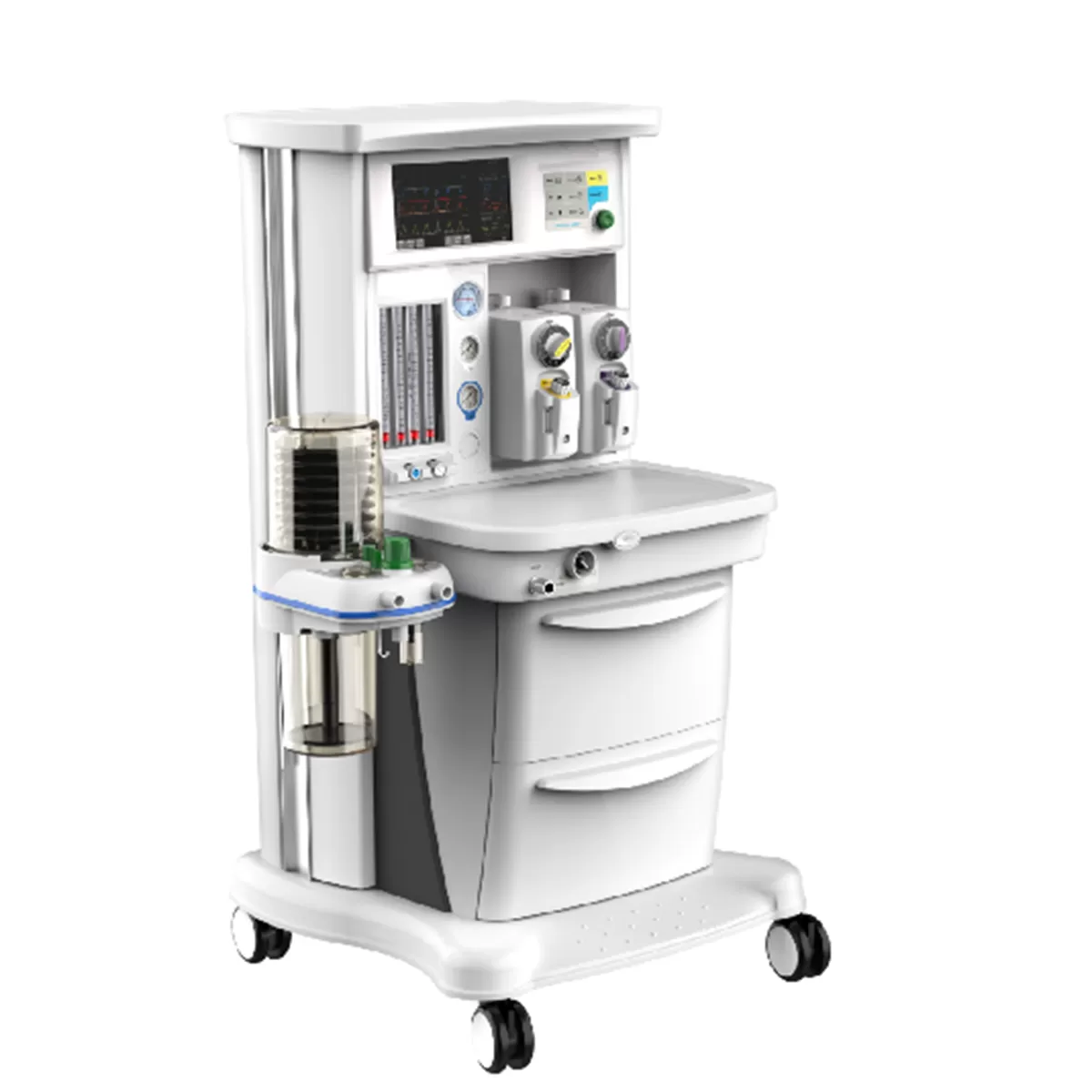

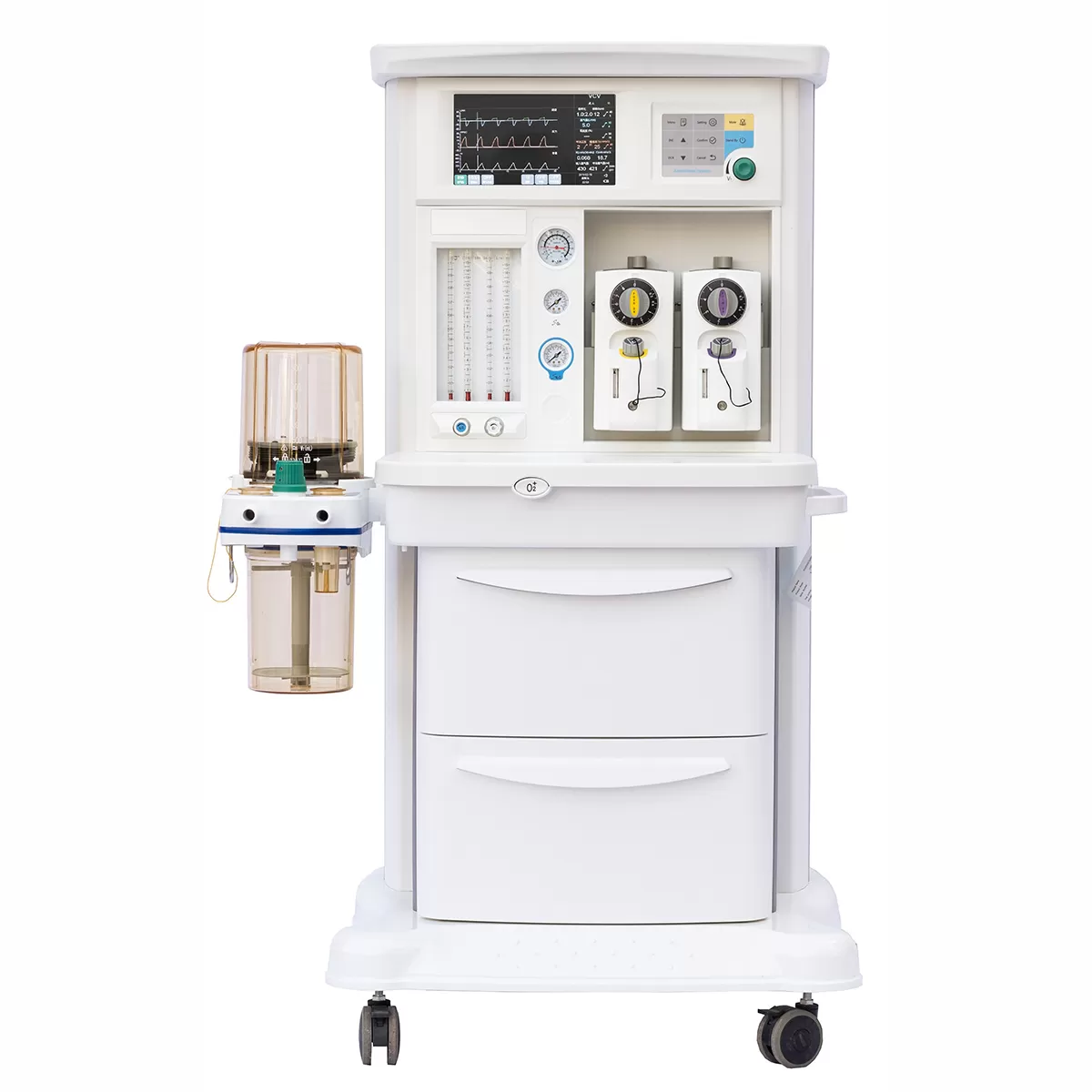

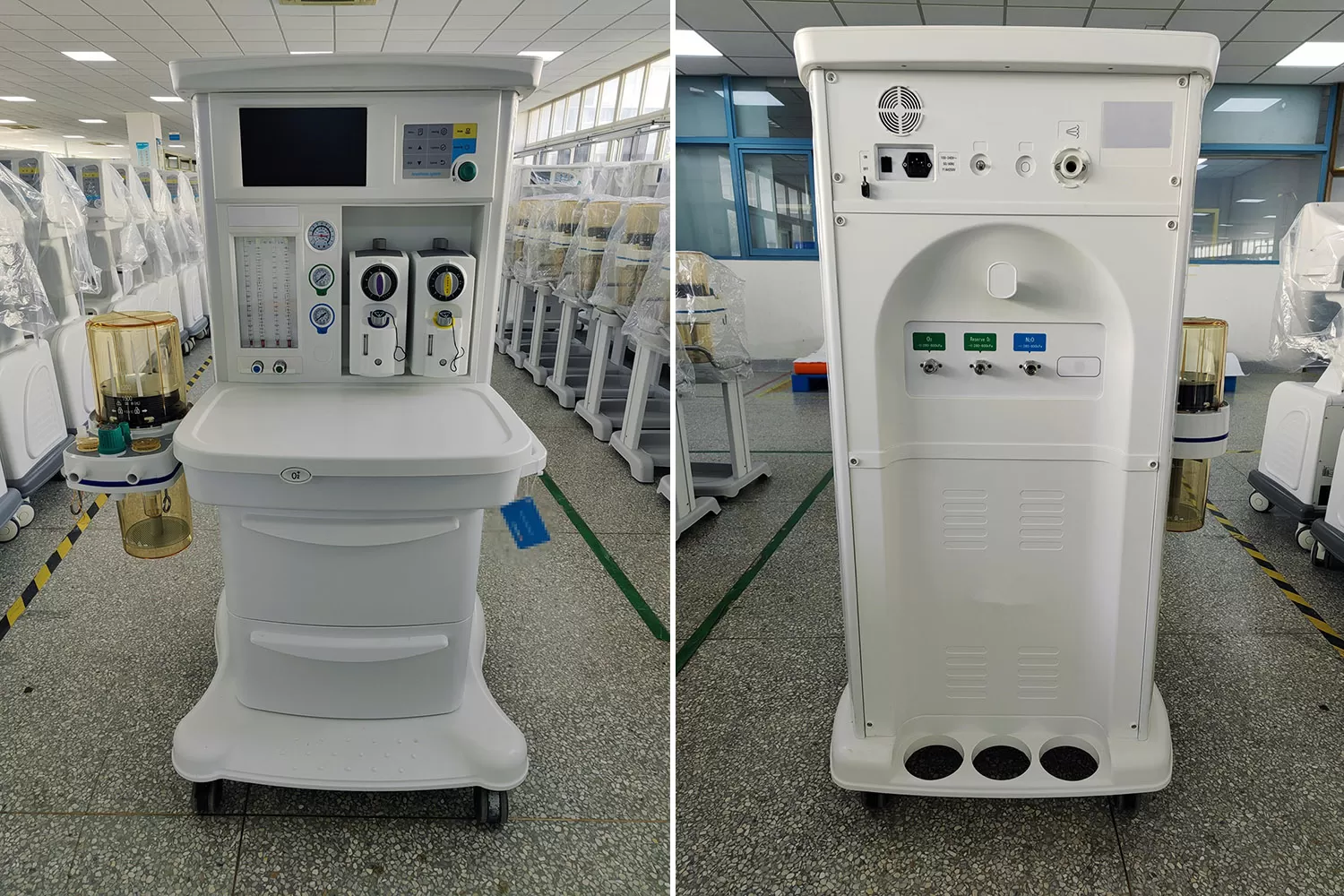

Product Details
Brand-new interface design, intelligent control system,
imported components, ensuring safer and more stable operation.
imported components, ensuring safer and more stable operation.

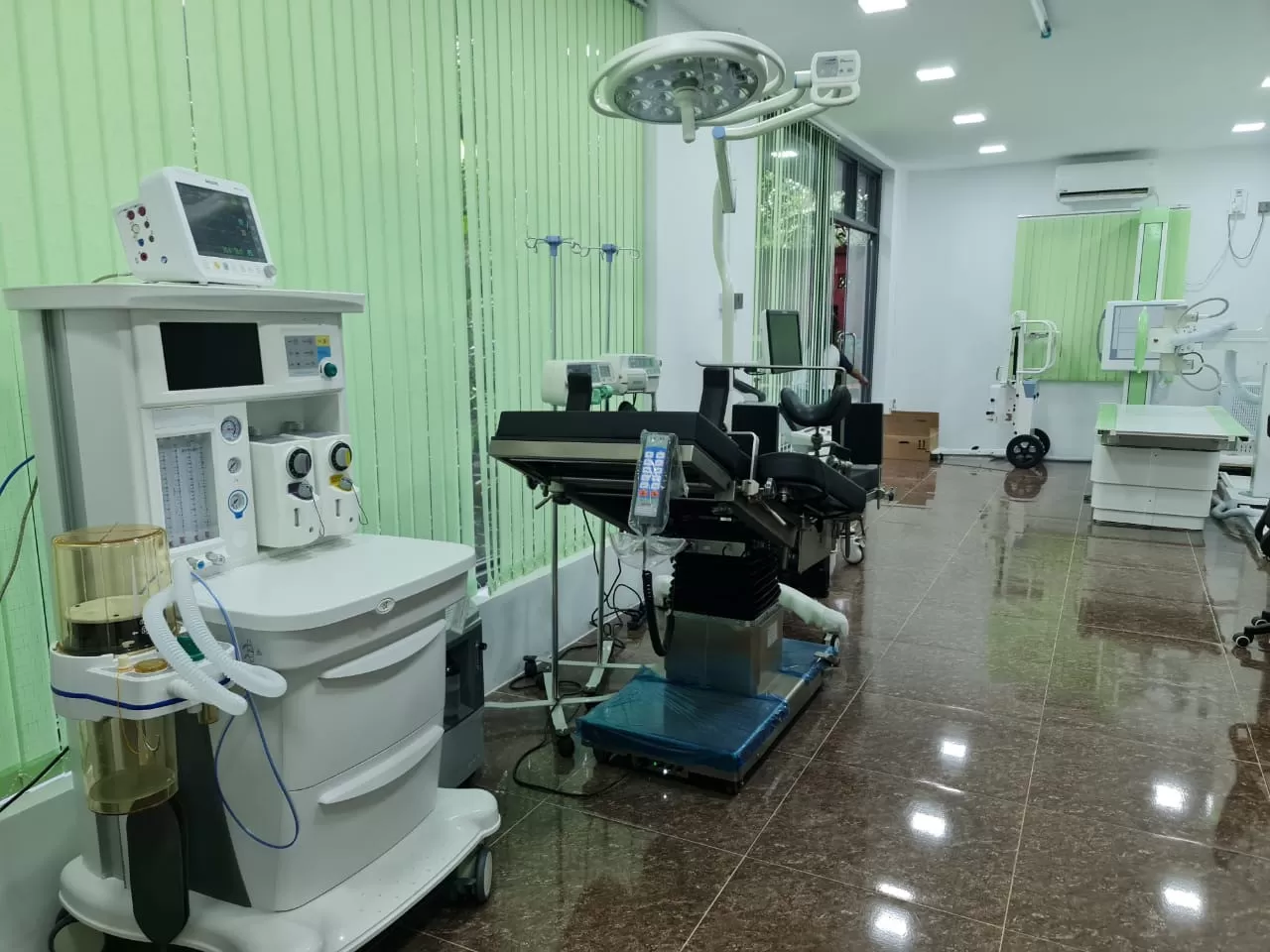

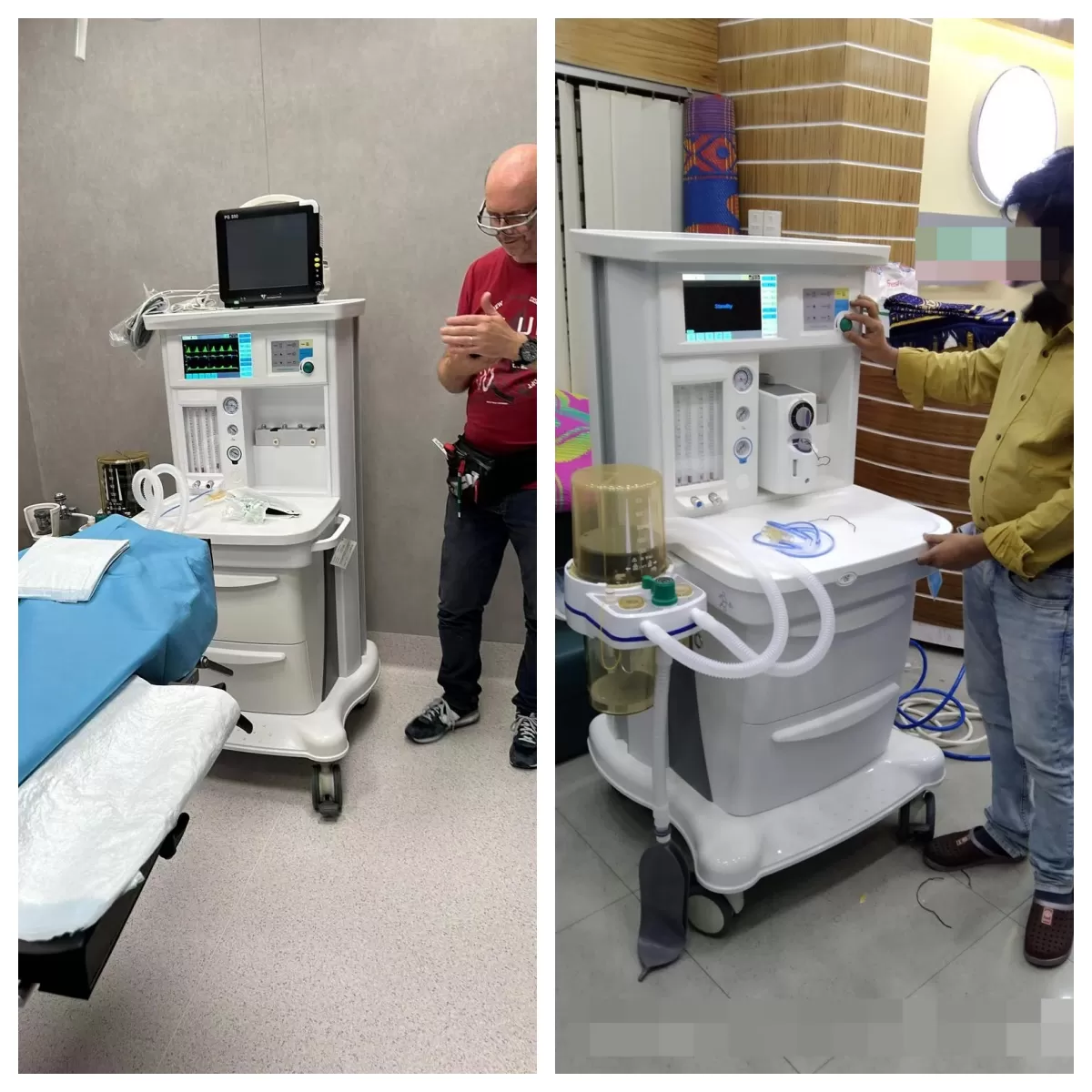

Real Installations
Explore our equipment successfully operating in hospitals worldwide.
Case Showcase：
The CWM-201A anesthesia machine has been installed and is functioning well. The team is satisfied with its performance and support from the supplier.

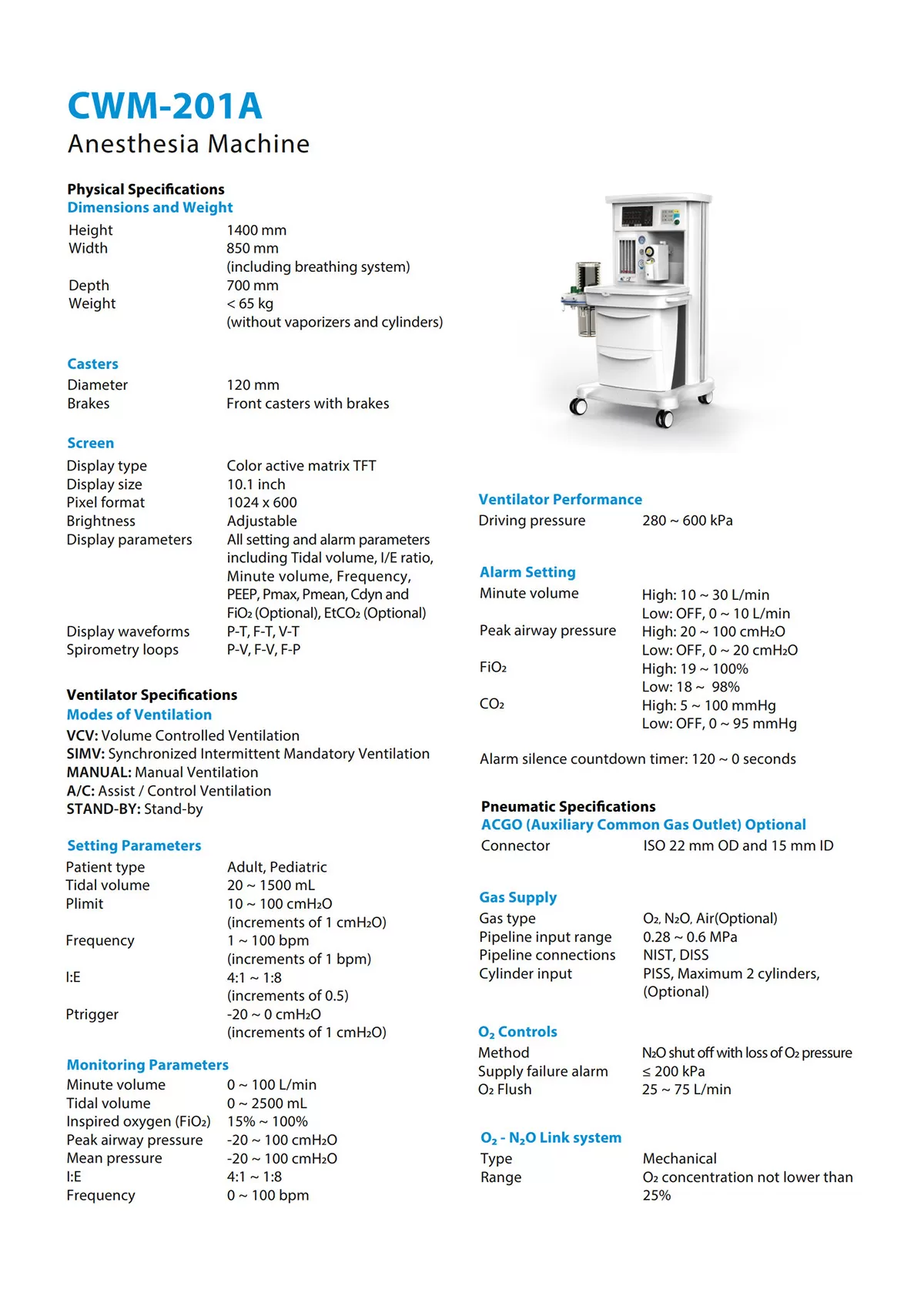

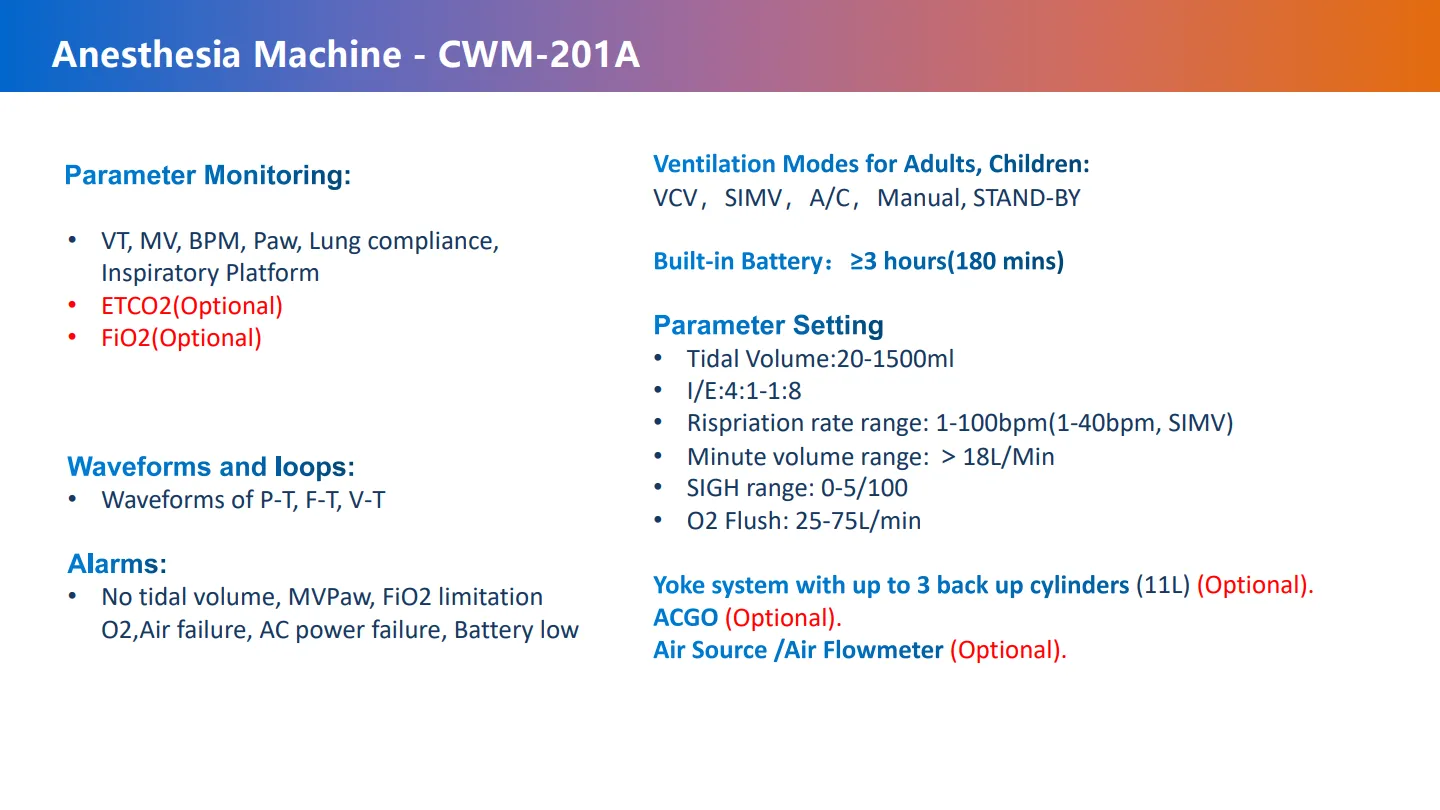

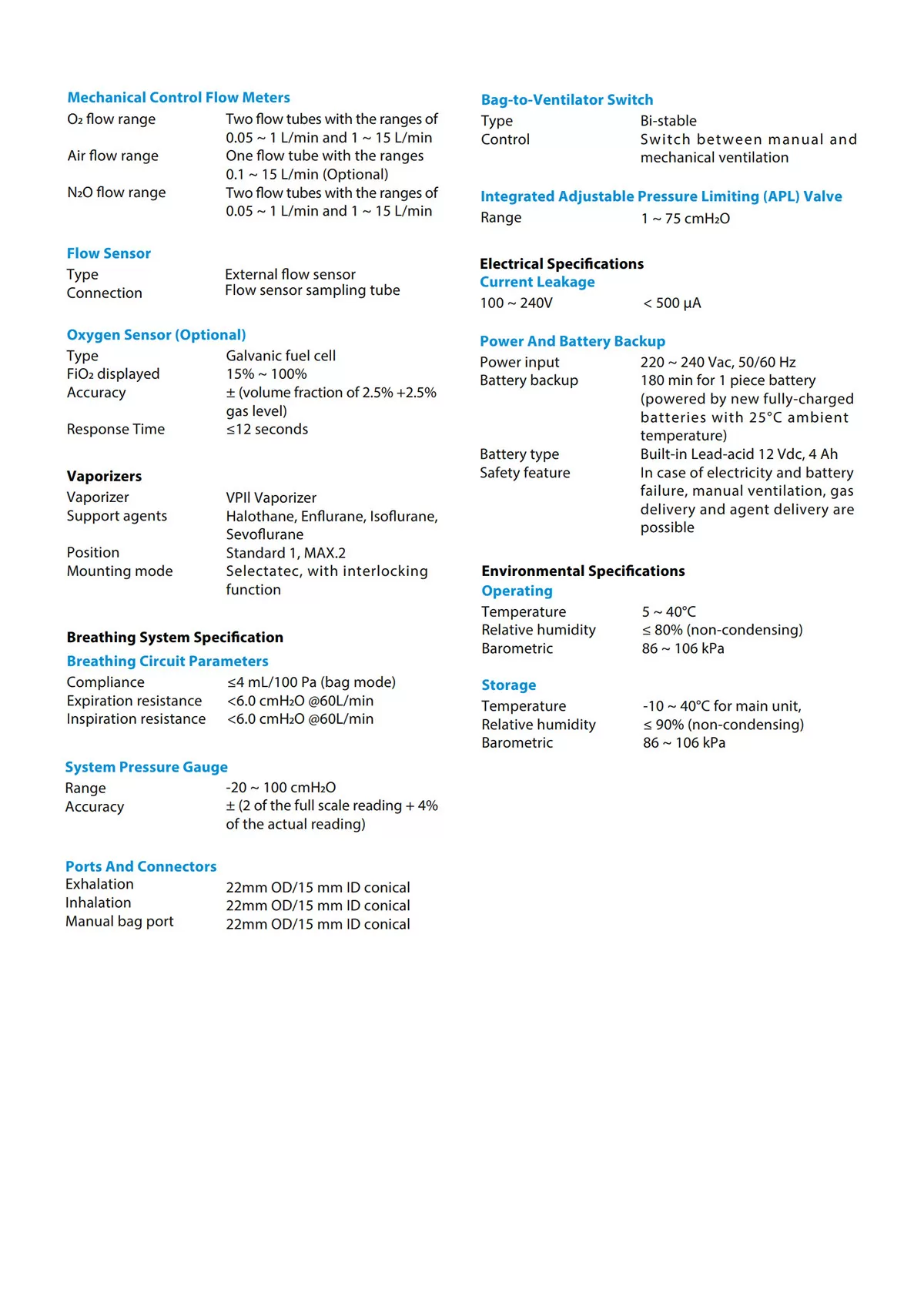

Parameter Type
Function Description
- ApplicationAdult, Pediatric
- Screen10.1-inch color screen display
- Modes of VentilationVCV, SIMV, A/C, MANUAL, STAND-BY
- Display parametersAll setting and alarm parameters (including Breath rate, I/E ratio, Tidal volume, Minute volume, PEEP, Pmax, Pmean, Cdyn and O₂ Concentration, CO₂ (Optional)
- Tidal volume20 ~ 1500 mL
- Battery backup180 min
