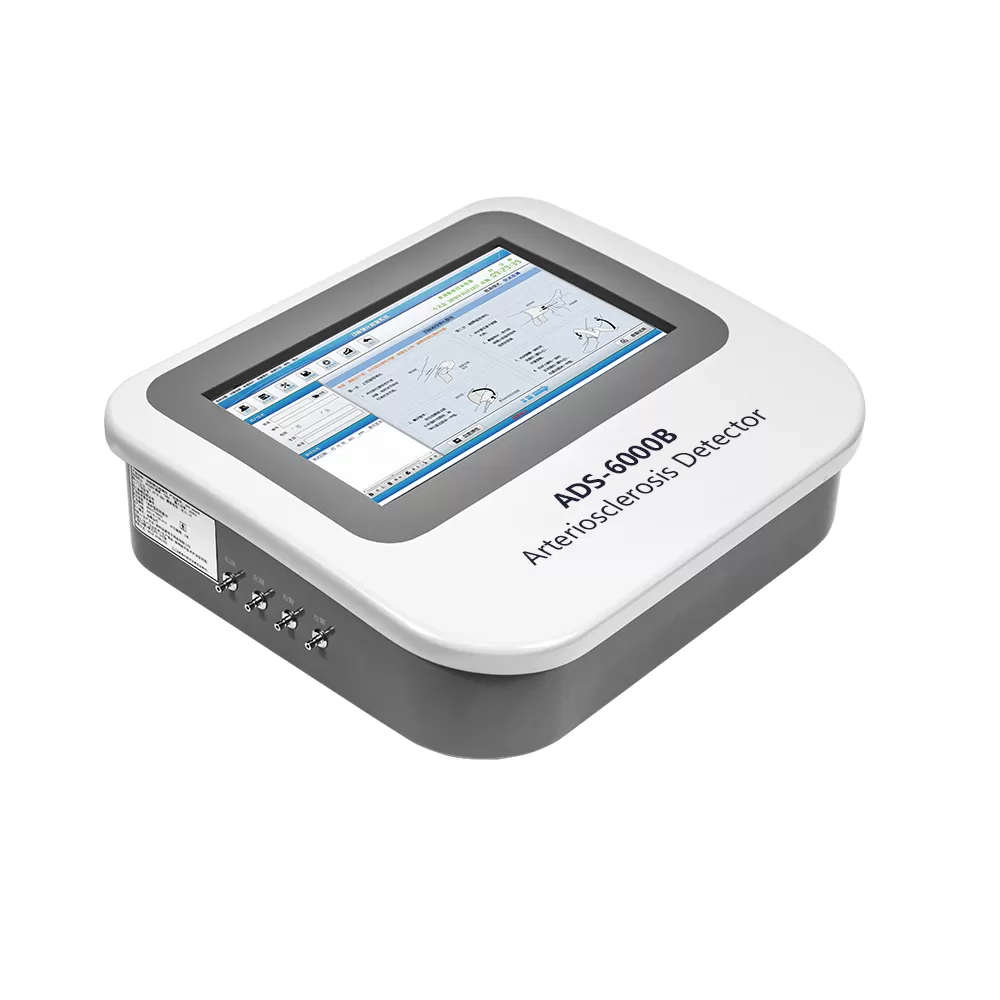

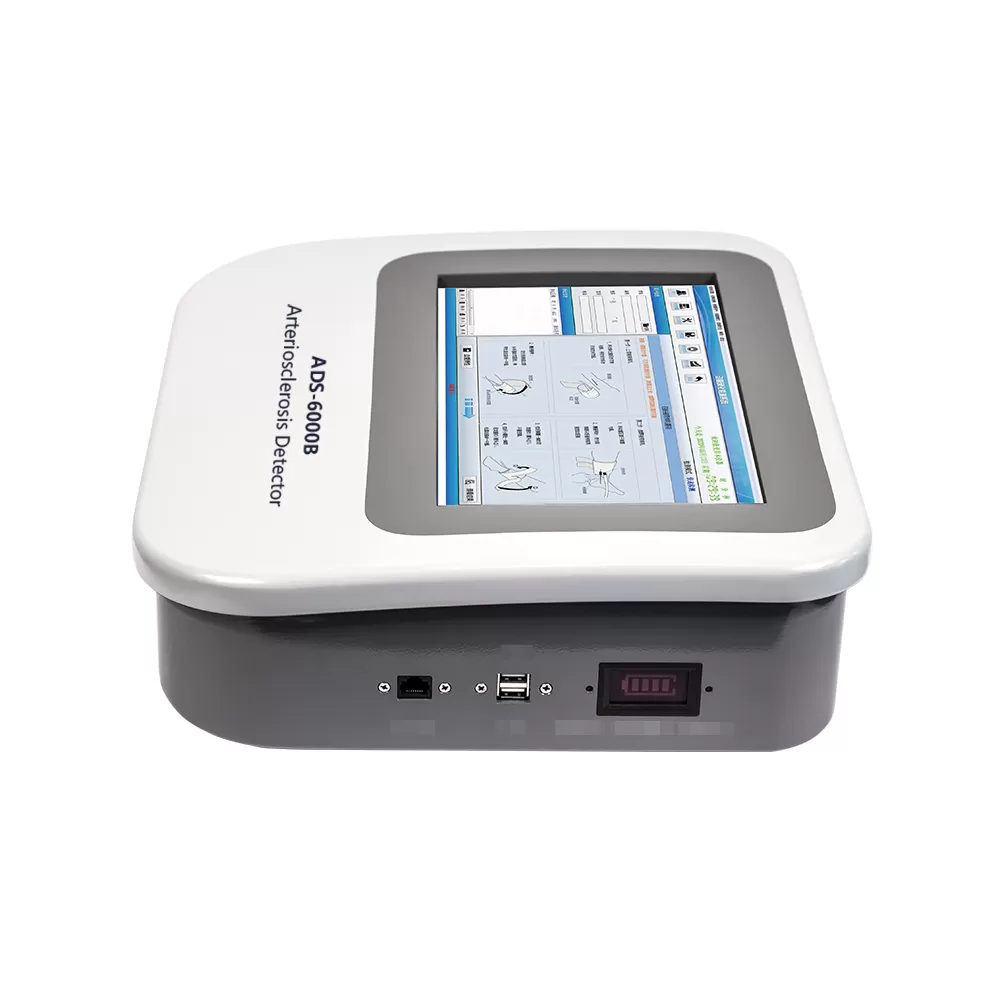

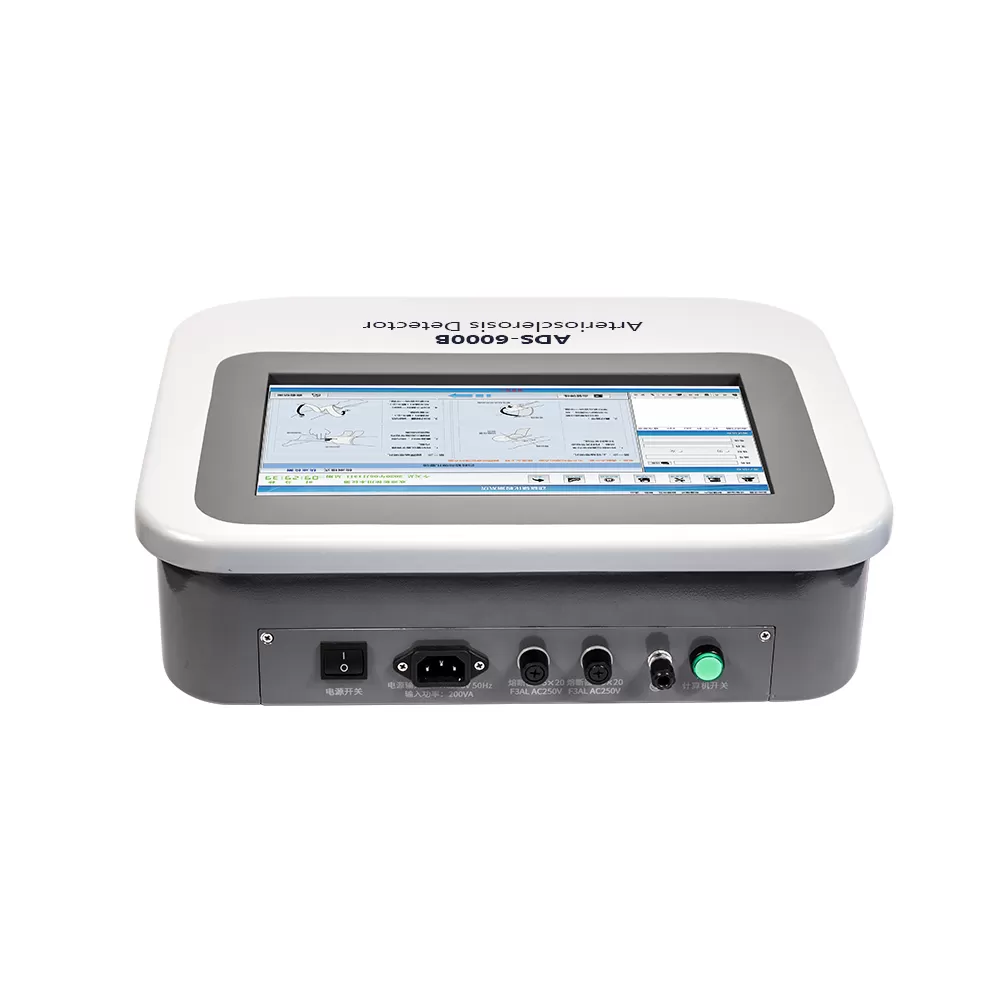

Arteriosclerosis Detector ADS-6000B Test Equipment
Arteriosclerosis is a non-inflammatory disease of the artery, which can make the arterial wall thickening, hardening, loss of elasticity, and stenosis of the lumen. Arteriosclerosis is a vascular disease that occurs with age. It usually occurs in adolescence and becomes worse in the middle and old age. There were more males than females. In recent years, this disease has gradually increased in our country, and has become one of the main causes of sudden death and other diseases.
Atherosclerosis is the most common and serious type of arteriosclerosis. Coronary atherosclerosis can cause insufficient blood supply to the myocardium, resulting in angina pectoris, myocardial infarction, arrhythmia, and even sudden death. Cerebral arteriosclerosis, can cause cerebral insufficiency, vertigo, headache, cerebral ischemia. Thrombosis in cerebral arteries or cerebral stroke caused by rupture of small aneurysms caused by arteriosclerosis may result in loss of consciousness, hemiplegia, aphasia and other serious consequences. Atherosclerosis of the lower limbs may cause intermittent claudication, loss of pulse of the dorsalis pedis artery, and in severe cases, ischemic necrosis of the limb ends.
The most common causes of arteriosclerosis are hyperlipidemia, hypertension, diabetes, and the patient's own lifestyle. Relevant data show that the intake of greasy food and high-cholesterol food directly leads to hypercholesterolemia, and hypercholesterolemia is just one of the risk factors for atherosclerosis and cardiovascular disease.
For most patients with arteriosclerosis, early detection, early detection and reasonable intervention can effectively reduce the morbidity, disability rate and mortality of cardiovascular and cerebrovascular diseases.
ADS-6000B Technical parameters of Arteriosclerosis Detector
ADS-6000B Arteriosclerosis Detector is an arterial stiffness and obstruction degree detector with complete independent intellectual property rights. The instrument uses synchronous compression to measure the blood pressure of the limbs noninvasively, simultaneously records and analyzes the pulse wave shape of the limbs, uses waveform analysis technology to extract the characteristic information that characterizes the blood vessel elasticity, calculates a number of indexes including ankle brachial index (ABI), brachial ankle artery pulse wave velocity (baPWV), and performs automatic analysis and comprehensive evaluation through the database data, to evaluate the health status of cardiovascular system and the degree of lower extremity artery obstruction, and provide comprehensive objective basis for early diagnosis of arteriosclerosis and early screening of cardiovascular and cerebrovascular diseases.
1,Accurately assess the elasticity of the great arteries and the degree of lower extremity artery obstruction
The ankle-brachial index measured by synchronous compression of all limbs reduces the influence of blood pressure variability, and the results are more accurate, baPWV+ABI measurement is more reliable in assessing large artery elasticity.
2,Simple, fast, non-invasive measurement method, easy to complete the index measurement
The use of high sensitivity pulse wave sensor non-invasive inspection, will not bring any physical harm to the user. The instrument is simple to operate, the detection time is short, and the index measurement is completed quickly.
3,The network function can easily support online transmission and remote management of data.
4,Scientific theoretical basis and accurate test data
Independent intellectual property rights, years of medical data acuumulation, and passed clinical verification.
5,ABI was detected by synchronous compression of the limbs
Due to the constant fluctuation of blood pressure, only ABI values measured by simultaneous compression of the extremities are more meaningful. The 2006 ACC/AHA guidelines for the management of peripheral artery disease recommend the use of simultaneous measurement of blood pressure on all limbs to obtain ABI values.
6,Risk assessment of cardiovascular disease
The unique cardiovascular disease risk assessment system objectively assesses the 10-years risk of ischemic cardiovascular disease.
7,Network interaction and data upload function
The data can be batchly imported from the remote server, and the test data can be uploaded to the remote server at any time, and can be integrated with the health management system as needed.
8,Accurate blood pressure measurement: the quality and performance of the internationally renowned blood pressure monitoring module are more reliable and the measurement results are more accurate.
Technical parameters:
1,The blood pressure of the extremities was measured synchronously by the oscillometric method.
2,Measurement site: limbs: upper arm, lower limb ankle.
3,Arm circumference measurement range: 20-38cm.
4,The width range of lower limb measurement: 16cm-33cm.
5,Rated power: 115VA voltage 220V.
6,Performance requirements of blood pressure measurement:
Measurement range: 0kPa ~ 34.7kPa(0mmHg ~ 260mmHg);
Measurement accuracy: ±0.4kPa(±3mmHg);
Repeatability: measured under static continuous low pressure, the difference between the repeated measured readings at each point within the scale range is not greater than 0.533 kPa(4mmHg).
7,12.1 inch HD LCD screen, branded industrial control computer system.
8,Measurement parameters: baPWV (brachial-ankle pulse wave velocity), ABI (ankle brachial index), BAI (brachial-ankle index), HR(heart rhythm), PVR (pulse volume recording), systolic blood pressure SBP(limbs), diastolic blood pressure DBP(limbs), mean blood pressure MAP(limbs), pulse pressure PP(limbs).
9,Portable structural design, easy to move.
10,Equipped with lithium battery, capacity of 5200mAH.
11,Lithium battery working time up to 3 hours.
FAQs: ADS-6000B Arteriosclerosis Detector
Q1: Why is early detection of arteriosclerosis so important?
A1: Arteriosclerosis often develops silently for years. Early detection allows for timely lifestyle changes and medical intervention, which can significantly reduce the risk of heart attack, stroke, and other serious cardiovascular events before symptoms like chest pain or leg cramps even appear.
Q2: How is the ADS-6000B different from a standard blood pressure monitor?
A2: While a standard monitor only measures arm blood pressure, the ADS-6000B performs synchronous four-limb blood pressure measurements and analyzes pulse wave velocity (baPWV) and shape (PVR). This provides a direct assessment of arterial stiffness and potential blockages (via ABI), offering a much deeper insight into your vascular health than blood pressure alone.
Q3: Is the test painful or invasive?
A3: No, the test is completely non-invasive and painless. It uses soft cuffs on your arms and ankles, similar to a blood pressure check, and high-sensitivity sensors. You will feel pressure from the cuff inflation, but no physical harm.
Q4: How long does a measurement take, and is it complicated?
A4: The procedure is simple and fast. A complete measurement session typically takes only a few minutes. The operator will place the cuffs, and the system automatically performs the synchronized measurements and analysis.
Q5: What do the results like ABI and baPWV actually mean for me?
A5: ABI (Ankle-Brachial Index) helps detect narrowing or blockages in the arteries of your legs. A low value may indicate Peripheral Artery Disease (PAD). baPWV (pulse wave velocity) measures how stiff your arteries are; a higher velocity indicates stiffer arteries, which is a major risk factor for future cardiovascular problems. Your report will provide an assessment based on these values.
Q6: How accurate are the results? I'm concerned about variability.
A6: The ADS-6000B is designed for high accuracy and reliability. Its key feature is synchronous limb measurement, which minimizes the error caused by natural blood pressure fluctuations between readings. This method is recommended by leading medical guidelines (like ACC/AHA) for obtaining a true ABI value. It also uses high-quality, clinically validated blood pressure modules.
Q7: Who should get tested with this device?
A7: Testing is highly recommended for individuals with risk factors such as high blood pressure, high cholesterol, diabetes, a smoking habit, a family history of cardiovascular disease, or those over a certain age. It's also valuable for anyone undergoing a general health check-up to establish a vascular health baseline.
Q8: Can this device assess my overall risk of having a heart attack or stroke?
A8: Yes, a key feature is its integrated cardiovascular disease risk assessment system. By analyzing your measurement data alongside other factors, it can provide an objective evaluation of your 10-year risk for ischemic cardiovascular diseases, helping you and your doctor plan preventive strategies.
Q9: My doctor already did some tests. How does this complement them?
A9: The ADS-6000B provides functional and physiological data about arterial stiffness and peripheral circulation that traditional tests like cholesterol checks or ECGs do not. It's a complementary screening tool that can identify vascular issues early, sometimes before they are apparent in other tests, prompting further specialized investigation if needed.
Q10: How is my data managed and stored?
A10: The device has robust network functionality. Test data can be securely uploaded to a remote server or your health management system for electronic record-keeping, trend analysis over time, and easy sharing with your healthcare providers for remote consultation or integrated care.
Q11: Is the device portable for use in different clinics or community screenings?
A11: Yes. The ADS-6000B features a portable design with a built-in, long-lasting lithium battery (up to 3 hours of operation). This makes it easy to move between rooms or take to off-site community health screening events without being tied to a power outlet.
Q12: What kind of training or support is needed to operate it?
A12: The system is designed for user-friendly operation with a clear touchscreen interface. Comprehensive training and technical support are provided to ensure your staff can perform measurements correctly and interpret the reports effectively.
